This guide will show you how to remove the screen for the Lenovo Yoga 3 Pro. As an extra precaution, the battery should be removed first before proceeding with the rest of the device.

  1. eVaKTdXGITPDXfTY
    eVaKTdXGITPDXfTY
    yLD6nALJ5LiWJXYL
    • Flip the laptop so that the back panel is facing up.

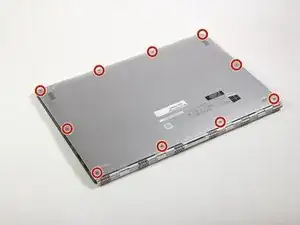

    • Remove the ten 4.0mm T6 Torx screws from the back of the laptop.

  2. J3VTIOT1vk5MoObo

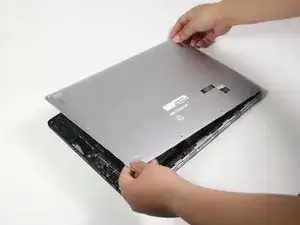

    • Gently lift the back cover off of the laptop.

  3. RF1HvPGS1ljZncj1
    RF1HvPGS1ljZncj1
    lqdw3JaUeU1LAfWc

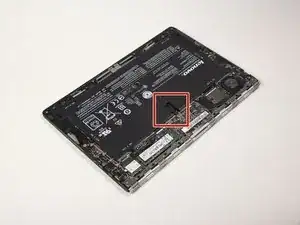

    • Push the black battery cable towards the battery to disconnect it.

  4. Wq2WfDWgOSHwMN1Y
    Wq2WfDWgOSHwMN1Y
    4Zk11VencFQOWo4M
    • Remove the six #0 3.8mm Phillips screws from the battery.

  5. lNfaglUE2Bu34Efb

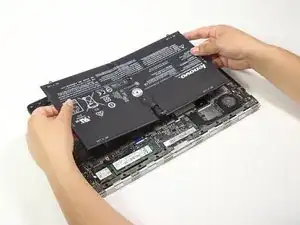

    • Gently lift the battery out of the laptop chassis.

  6. nXTUPxpTyKVeMoCY
    nXTUPxpTyKVeMoCY
    EqmbeMAgeodjyJZ1

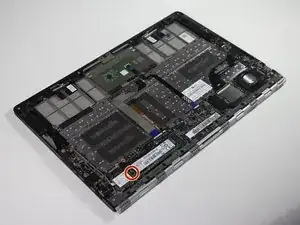

    • Remove the one #0 2.9mm Phillips screw from the SSD.

    This is not necessary just to replace the screen. None of this is - only the battery for safety, and the LCD cable.

    Debi Wray -

  7. XU6HQ1Tqwu2ESeIX

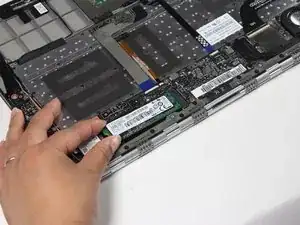

    • Gently lift and wiggle the SSD side to side to remove it from the laptop chassis.

  8. EwdWNBwLcXkqNuOl
    EwdWNBwLcXkqNuOl
    3ZBQWMAvlfMwKJgR

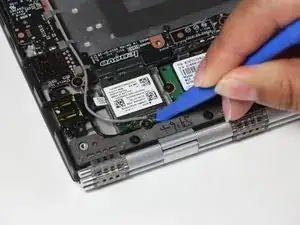

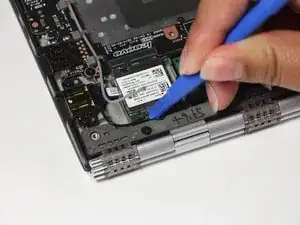

    • Using the plastic opening tool, gently pry the grey wire off the wifi card.

    • Pry the black wire off the wifi card.

  9. FWjN1AqtAeRFc1CG

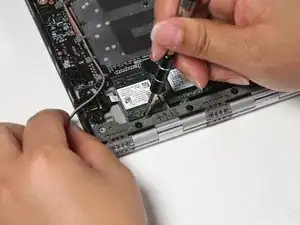

    • Remove the one #0 2.9mm Phillips screw from the base of the wifi card.

  10. FvO4DZlBATPPZiXG
    FvO4DZlBATPPZiXG
    aUuGPAueJTdarNRY

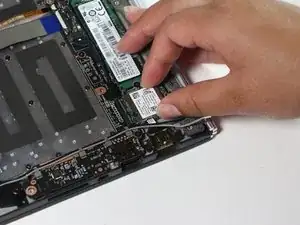

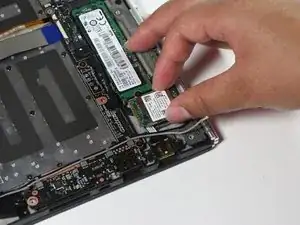

    • Gently lift and pull the wifi card out.

  11. woOOTXFQSfMn5YMv
    woOOTXFQSfMn5YMv
    KJGOhH3icbnwkTSG
    LEQrwIQZ2CiGx3uT

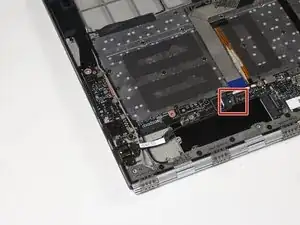

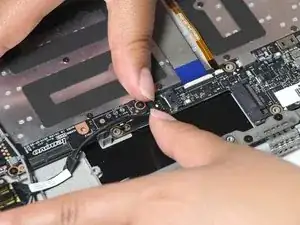

    • Push the cable away from the motherboard.

  12. GUFNEpVXQiRgE1KJ
    GUFNEpVXQiRgE1KJ
    eZjj2FKXtw36Pni1
    52FOr4vOMA3kmOdn

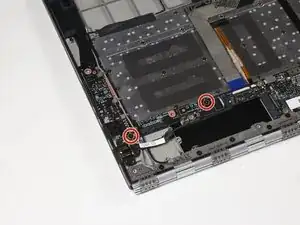

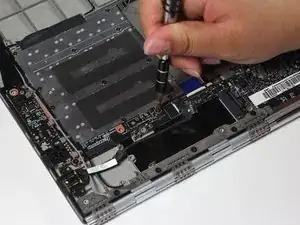

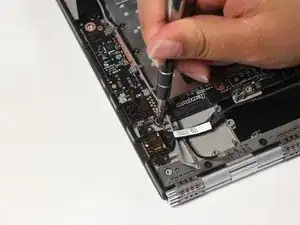

    • Remove the two #0 2.9mm Phillips screws from the daughter board.

  13. gsRV2QDrVxKI6OY4

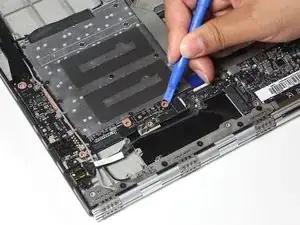

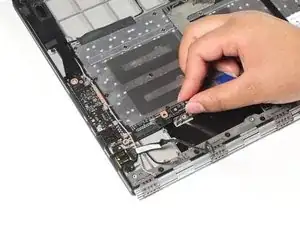

    • Lift the daughter board with the plastic opening tool.

    • You will hear two clicks when lifting the daughter board.

  14. x5NF2UghDHfviIb4
    x5NF2UghDHfviIb4
    oNwxkAA51E1cDDsU
    UrEAnMMneKhtAgGA

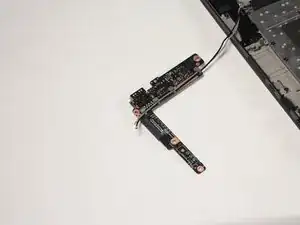

    • Lift the daughter board, unrouting the wireless cables from their plastic holders, and place it to the side.

  15. 2kbqHUkZvlEAN4ws
    2kbqHUkZvlEAN4ws
    nXXOAFAPEaGviI6s
    v41ZvDSLsmfbwvmQ

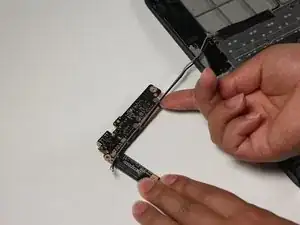

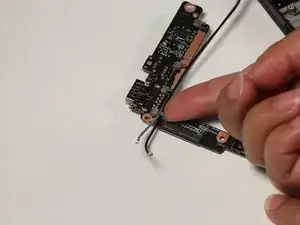

    • Gently lift the metal tabs on the daughter board to free the wires.

  16. vqMYCLGSGHlYmXEj
    vqMYCLGSGHlYmXEj
    SLXmye2KDsfFafdf
    H5RSSISe3ARYu5kP

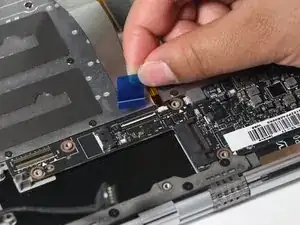

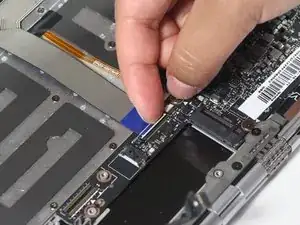

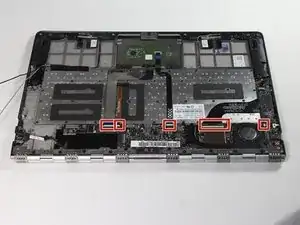

    • Detach the five flat flex cables attached to the motherboard as follows:

    • 1. Flip the cable holder up with a finger nail

    • 2. Pull on the tab to remove the cable.

    • The large black flat flex labeled 'MB' does not have a tab so gently tug the cable free from the end after flipping the cable holder.

  17. TVPWUglQDACgdo1a
    TVPWUglQDACgdo1a
    1AHNbnJb4qWEUbFQ
    iEIImCQGRagWVaYe

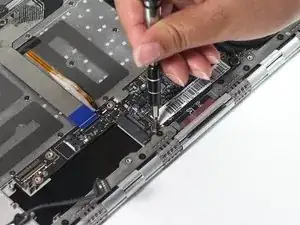

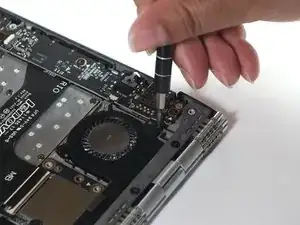

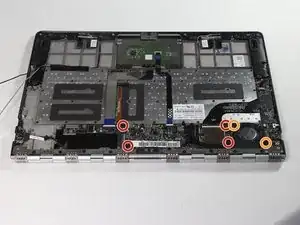

    • Remove the four #0 2.3mm Phillips screws holding down the motherboard.

    • Remove the two #0 2.9mm Phillips screws holding down the fan.

  18. LYQcgCwoCAcuY2EY
    LYQcgCwoCAcuY2EY
    WDTPoKCYvVTEdGeq
    DVmoOcXSeAK4v4FU

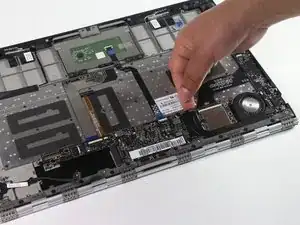

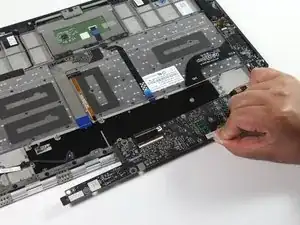

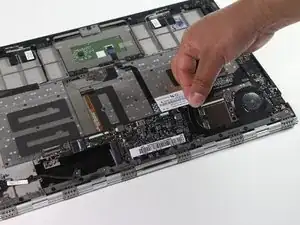

    • Make sure the motherboard and fan are not caught on anything when flipping it over.

    • Gently lift and flip the motherboard over.

  19. mwMdZPgHZXWtQ6dO
    mwMdZPgHZXWtQ6dO
    uvmuxlDnT6iUGLEN
    aswAPEFvis2kRtra

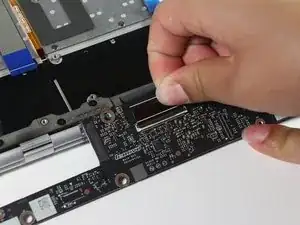

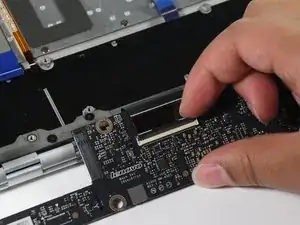

    • Flip the cable lock holding down the monitor connector.

    • Remove the monitor connector by tugging on the tab.

  20. CEQ4pBZE4LjF2Ptv
    CEQ4pBZE4LjF2Ptv
    URcPQCOWHbOHN1DZ

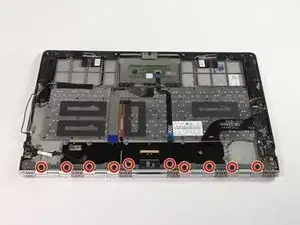

    • Remove the ten #0 3.7mm Phillips screws holding down the monitor assembly.

  21. EvoenBhTCKYXBnaI
    EvoenBhTCKYXBnaI
    Lcfttebieu1KHv3C
    MjlSLyXNQx65Paft

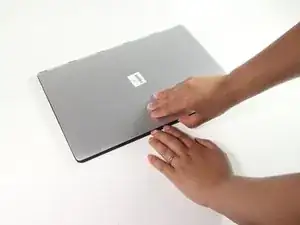

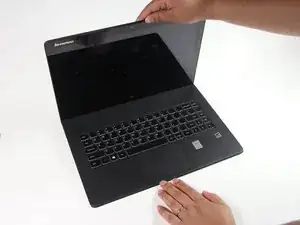

    • Flip over the laptop so that it's facing up

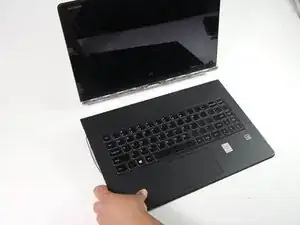

    • Gently open the laptop to separate the screen from the laptop chassis.

  22. bALnbPEvDbtkJ1n2
    bALnbPEvDbtkJ1n2
    Mx3m362JsnASOFgR

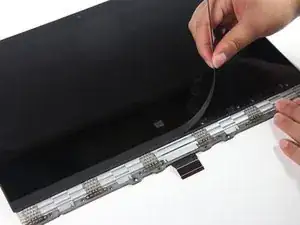

    • The screw cover is held down with adhesive and is very fragile.

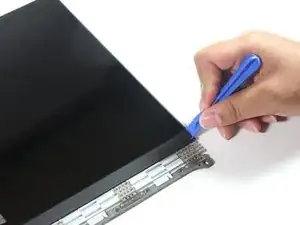

    • Remove the black screw cover from the screen by prying with the wide plastic opening tool.

    • Pull it off slowly.

    These instructions are completely wrong for my Yoga 900 ISK2

    Jonathan Shook -

    Umm, my display is all glass. There is no plastic piece to remove at the bottom…

    Patrick Jensen -

  23. ZrTHsFuxBjwVOSGp

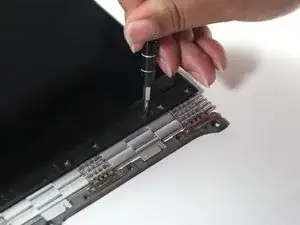

    • Remove the eight #0 2.4mm Phillips screws holding down the monitor.

  24. TldSiFJCnK6DvOGr
    TldSiFJCnK6DvOGr
    JJeuU1taVsCEhYqK
    dHPMB3lJDspmws3K

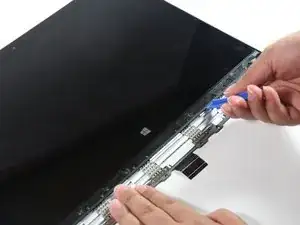

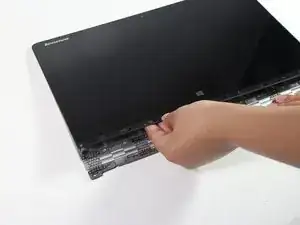

    • Insert the wide plastic opening tool between the rubberized plastic and the watchband hinge.

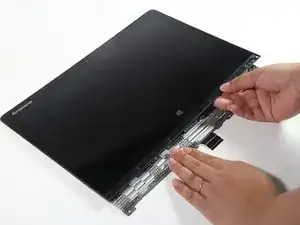

    • Pry the monitor assembly up until you can fit a few fingers under it.

    • Lift until the tabs holding the bottom of the monitor are released.

  25. UKphusQPvCPxSkhc

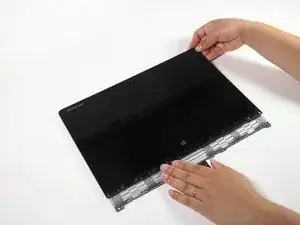

    • Slowly go around the perimeter of the screen with your fingers to loosen all the tabs holding down the monitor.

  26. kBAYU53xBYTNrSLY
    kBAYU53xBYTNrSLY
    xr25G2islqVXPTCd

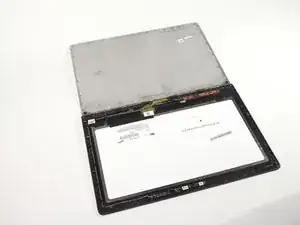

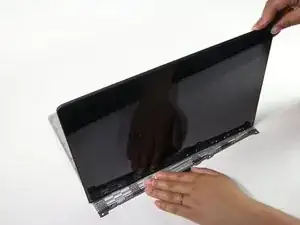

    • Be careful with the ribbon cable.

    • With the screen facing up, flip the screen assembly over

  27. olYCor6RV2IWZPpt
    olYCor6RV2IWZPpt
    UWNZ3O4ySqVAhenC
    TDoGUeRNPnmjOCEh

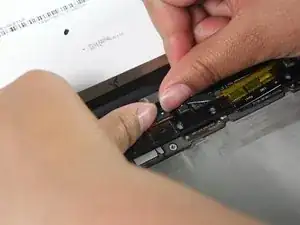

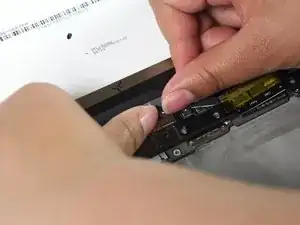

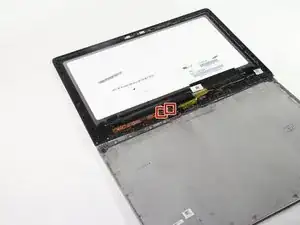

    • Disconnect the two monitor connectors with the tips of your fingers.

  28. mPbUcevA1jmw2m2U
    mPbUcevA1jmw2m2U
    RovXAIymvIG6ABiC
    4F5yxZaGwMixtjHT

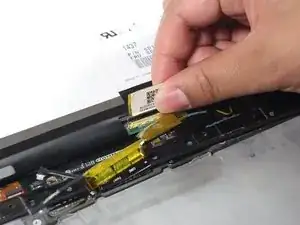

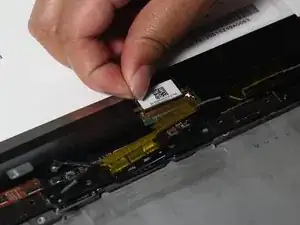

    • Remove the flat flex cable by first lifting the hinge then pulling the hinge away from the connector.

    • The hinge may be taped down, so lift the tape and pull the hinge via the tape.

  29. qDEZNqTHd5GvSJcm

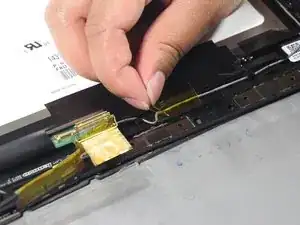

    • Peel off the tape holding down the webcam cable.

  30. Thn2FgCC1aKkOZYj
    Thn2FgCC1aKkOZYj
    psX4IISMTwTB22HX
    AUcrCxRbQBvTELB5

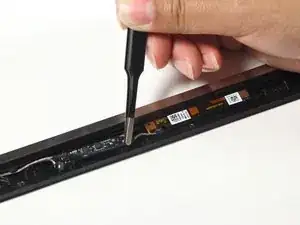

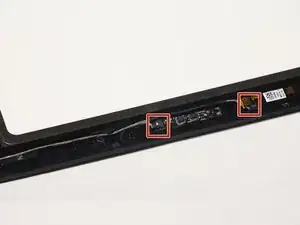

    • Disconnect the two cables connecting the webcam.

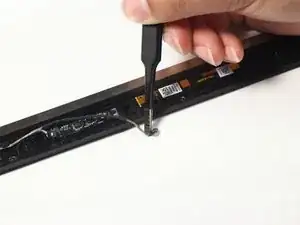

    • It may be easier to remove the webcam connector with tweezers.

  31. JnjJOJD31dIGOdYI
    JnjJOJD31dIGOdYI
    rTSCPFK25QNvbUmf

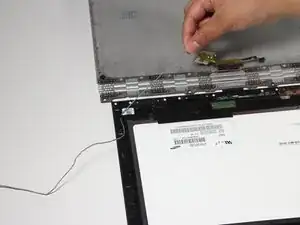

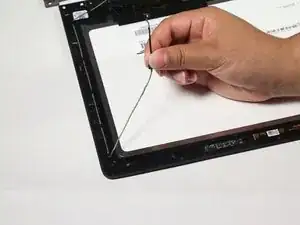

    • Carefully unroute the webcam connector from the plastic tabs holding it down.
