Lenovo Yoga 700-11ISK Solid State Drive Replacement

Geschrieben von: Emma Morley
  • Kommentare: 12
Lenovo Yoga 700-11ISK Solid State Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

The solid state drive stores data and works as a type of flash memory. Use this guide to remove the drive from your laptop if you would like to replace or upgrade it.

  1. LlQnlAIoTrkuTHBr
    LlQnlAIoTrkuTHBr
    Mt5sSIIJ4bjaiLw6

    • Flip your device so that the bottom panel is facing up.

    • Remove the eleven 5mm Torx T5 screws from the back panel.

    Your list of t7 screwdriver costed me to order a wrong one.

    it should be T5 but the ad listed T7!!!!!

    it is frustrating.

    Remy Williams -

    Mine had T5 as well.

    alan -

  2. rQkkNs5SM4tXG32o

    • Use a spudger to unclip clips on the front and near the USB ports on each side

    • Lift the back panel off

    where can I buy the back panel?

    malinthae -

    The back panel is also held on by a few clips, but a spudger can come in handy here.

    alan -

    The clips on the sides are between the USB ports on the left side, and just in front of the USB port on the right.

    alan -

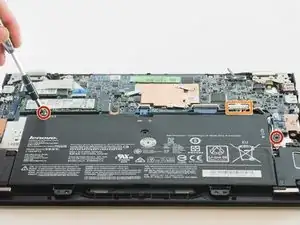

  3. BnC3hxSKVWoUk4Wb

    • Remove the two 3mm Phillips #1 screws holding the battery to the laptop chassis.

    • Disconnect the battery from the IO board by holding the connector by the sides and gently pulling the connector out.

    The left screw is hidden below a tamper-evident sticker.

    alan -

    There is a plastic channel along the right edge of the battery that has wires running through it to a different board. It works best if the other connector next to the battery connector is unclipped and those wires are taken out of that channel.

    alan -

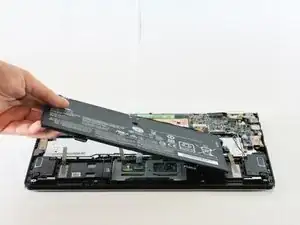

  4. fVjxEjAvUfciRHtg

    • Carefully remove the battery from the laptop.

    • Make sure that all wires still connected to the laptop are out of the way and not pulled out with the battery.

    Along the right edge of the battery, there is a channel with wires running to a connector next to the battery connector. It works better to disconnect that connector too and fold the battery to the right.

    alan -

    Re: the above “fold the battery to the right” comment: If all you’re doing is replacing the touchpad, the “fold over” method works as it keeps the wires in the channel. If you’re replacing the battery or whatever those wires connect to, obviously that won’t work.

    alan -

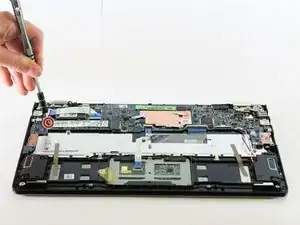

  5. RGsDcKwpJNWIsvOE

    • Remove the one 2mm Phillips #1 screw holding the hard drive to the laptop.

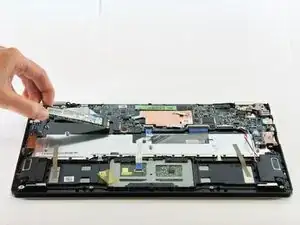

  6. PDkaU4csjodXZhus

    • Pull the solid state disk out of the connector and lift it out of the laptop.

    • Make sure the hard drive is oriented correctly with the label facing up before re-inserting.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Emma Morley

Mitglied seit: 23/10/16

378 Reputation

3 Kommentare

How to transfer the windows os to the newly install Crucial ssd?

Bernardino Santiago -

how to transfer the windows OS to the newly install ssd?

Bernardino Santiago -

Specification for the M.2 SSD: Make sure it’s a Type 2280 (22mm x 80mm) SATA M.2 with B and M key edge connector, not the B key used on NvMe M.2 for PCIe. It’s easy to confuse the two when ordering online.
