Lenovo Yoga 710-14IKB Fan Replacement

Geschrieben von: Grant Doerksen
  • Kommentare: 4
Lenovo Yoga 710-14IKB Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

This guide will teach you how to remove and replace the cooling fan on your Lenovo Yoga laptop.

  1. kChZtk6LroZc6IPB

    • Ensure your device is completely OFF before starting this guide.

    • Use a Torx T4 screwdriver to unscrew the nine 5 mm screws holding the cover in place.

    • Use a Torx T4 screwdriver to unscrew the 8 mm screw in the center.

    • When, reassembling, make sure not to tighten the screws too much or you may risk cracking the plastic cover.

  2. VIJmpowuxHAU4ny2
    VIJmpowuxHAU4ny2
    hHUtHNSiWAutT3po
    yjYeZmFvbMOIDjFK

    • Use the plastic opening tool to pry the cover up and away from the laptop, starting at one end and working your way around the cover.

    • The cover is large and flat and made of thin plastic. It cracks easily, so make sure not to pry too hard.

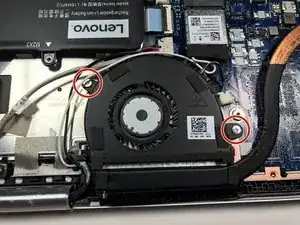

  3. WPFGATaUm5NAIV5F
    WPFGATaUm5NAIV5F

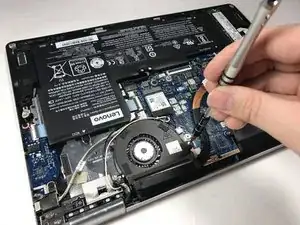

    GMXIuYWKpDHhQeu2

    • Unscrew the the two 4mm Phillips #00 screws holding the fan in place.

    • Be careful not to break the thin plastic tabs on the fan casing.

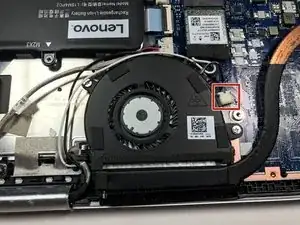

  4. oCR4SwwhVFZvBHEa
    oCR4SwwhVFZvBHEa

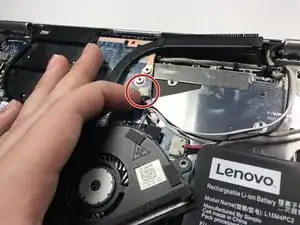

    GnLfHGFmgb5GoT4b

    • Use your fingernail or a plastic tool to disconnect the fan power cable from the circuit board.

    • Slide it straight out of its socket.

  5. Db5QtZgs4fUDpaYj
    Db5QtZgs4fUDpaYj

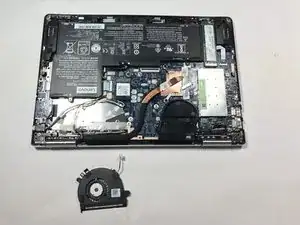

    CdBZNaOHkdEJwQ4N

    • Lift the fan up and out of its mount.

    • Be careful that the small plastic tabs don't get snagged on any other parts or cables.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Grant Doerksen

Mitglied seit: 18/04/17

957 Reputation

4 Kommentare

Thanks for a great guide! This is a great laptop with a really noisy cheep fan... It makes a high pitch sound even under the low load. Is it possible to make it run any better??

k.kubaitis -

I have searched online for a replacement fan for the Yoga 710-14ikb but havent found any. Is it possible to use a fan for another model, perhaps the 14isk or 15ikb?

David Hansson -

I did find this but dont want to wait that long. https://www.aliexpress.com/item/New-lapt...

edwardrmorley -

does anyone know the best place to buy a new one of these fans?

edwardrmorley -
