Lenovo Yoga 710-14IKB Headphone Jack Replacement

Geschrieben von: Evan Cruzen
  • Kommentare: 3
Lenovo Yoga 710-14IKB Headphone Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 15 Minuten

Einleitung

This simple guide will show you how to remove the headphone jack circuitboard (which also has the SD card attached) from the Lenovo Yoga 710-14KB.

  1. kChZtk6LroZc6IPB

    • Ensure your device is completely OFF before starting this guide.

    • Use a Torx T4 screwdriver to unscrew the nine 5 mm screws holding the cover in place.

    • Use a Torx T4 screwdriver to unscrew the 8 mm screw in the center.

    • When, reassembling, make sure not to tighten the screws too much or you may risk cracking the plastic cover.

  2. VIJmpowuxHAU4ny2
    VIJmpowuxHAU4ny2
    hHUtHNSiWAutT3po
    yjYeZmFvbMOIDjFK

    • Use the plastic opening tool to pry the cover up and away from the laptop, starting at one end and working your way around the cover.

    • The cover is large and flat and made of thin plastic. It cracks easily, so make sure not to pry too hard.

  3. Rqxe5g5ODfRvFmcZ
    Rqxe5g5ODfRvFmcZ
    BpMthSlCaApxuAJZ

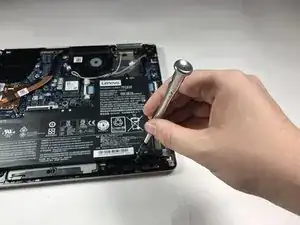

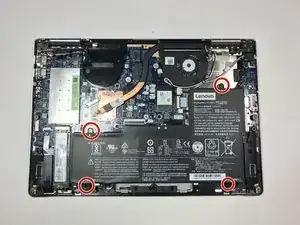

    • Use a Phillips #00 screwdriver to remove the four 3 mm screws holding the battery in place.

    • Be careful not to cross-thread the screws. Also, don't let the screws fall down into the laptop case.

  4. 6FW4Jb22b6AjnqrC
    6FW4Jb22b6AjnqrC
    y6wbOKAXniNN6nbf

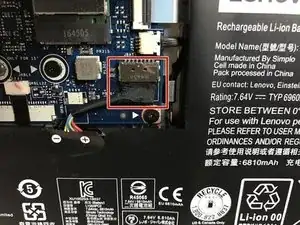

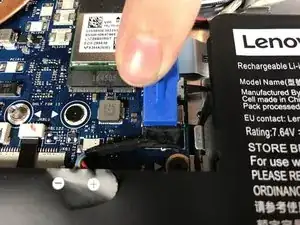

    • Use your fingers or an opening tool to slide the battery connector out of its motherboard socket.

    The connector slides out of the metal housing, not up from the board.

    Matthew Karmel -

    Thanks for the comment! I’ve corrected the step.

    Arthur Shi -

  5. vVeZeSsnHrNIWyeX

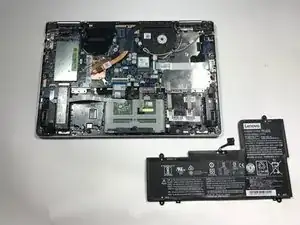

    • Remove the battery.

    i just bought a battery for my lenovo yoga 710-14ikb from ifixit..and now battery is not detected.

    jeffrey orr -

  6. n1FWOFLVOvfhAccI

    • Remove the two 3mm screws from the headphone jack using a PH00 screwdriver.

    • Make sure not to strip the screws as they can sometimes be hard to remove.

  7. PtYvJ6N4IXmTTuQ4

    • Pop the black bar on the tip of the wire connected to the headphone jack circuitboard.

    • Disconnect the wire.

    • Be careful not to pull or yank the cable.

  8. UgSGPQPFiaUSwl6E
    UgSGPQPFiaUSwl6E
    BveumlUZQRjqFl3U

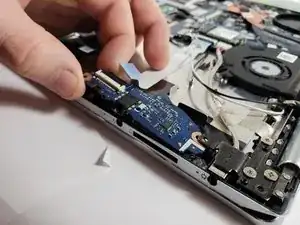

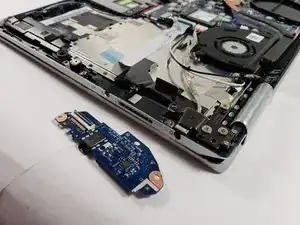

    • Remove the headphone jack circuitboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
