Lenovo Yoga 710-14IKB Speaker Replacement

Geschrieben von: Bailey Murphy

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

8 - 10 Minuten

Einleitung

This simple guide will show you how to remove the two speakers from a Lenovo Yoga 710-14KB.

Ensure your device is completely OFF before starting this guide.
Use a Torx T4 screwdriver to unscrew the nine 5 mm screws holding the cover in place.
Use a Torx T4 screwdriver to unscrew the 8 mm screw in the center.
When, reassembling, make sure not to tighten the screws too much or you may risk cracking the plastic cover.

Use the plastic opening tool to pry the cover up and away from the laptop, starting at one end and working your way around the cover.
The cover is large and flat and made of thin plastic. It cracks easily, so make sure not to pry too hard.

Use a Phillips #00 screwdriver to remove the four 3 mm screws holding the battery in place.
Be careful not to cross-thread the screws. Also, don't let the screws fall down into the laptop case.

Use your fingers or an opening tool to slide the battery connector out of its motherboard socket.

The connector slides out of the metal housing, not up from the board.

Thanks for the comment! I’ve corrected the step.

i just bought a battery for my lenovo yoga 710-14ikb from ifixit..and now battery is not detected.

Locate the speaker's plug and disconnect it.

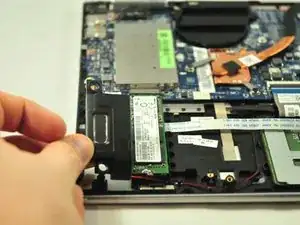

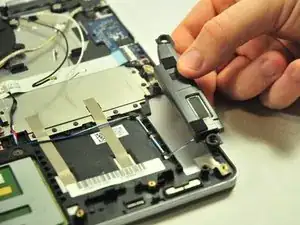

Follow the wires connected to the plug to locate the speakers. The left speaker will have red wires, and the right speaker will have blue wires.
