How to replace the battery of a Lenovo Yoga 710-14ISK laptop. The images and information in this guide were taken from this computer's service manual.
-
-

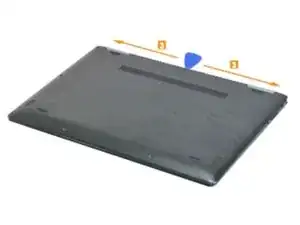

Insert a prying tool (opening pick) between the base cover and the cover and slide it in the direction shown by arrows to separate the base cover from the cover.
-

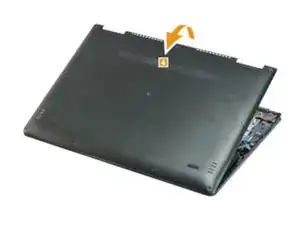

Remove the base cover.
-
-
-

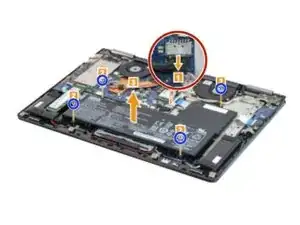

Unplug the battery connector.
-
Remove the M2 × 3 mm, Phillips-head screws.
-
Remove the battery pack.
-
Abschluss
To replace the battery & reassemble your device, follow these instructions in reverse order.
