Lenovo Yoga 710-15IKB Trackpad Replacement

Geschrieben von: Hanna Deon
  • Kommentare: 1
Lenovo Yoga 710-15IKB Trackpad Replacement

Schwierigkeitsgrad

Easy

Schritte

11

Zeitaufwand

8 - 15 Minuten

Einleitung

This guide will show you how to replace your trackpad if it is broken or defective.

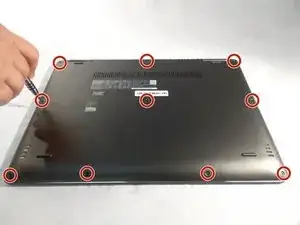

  1. fZi46dLrwsAbNFgs

    • Remove the ten 3.3 mm screws from the base cover using the T5 Torx screwdriver.

  2. EGTCvJjWgn2bIHK6

    • Slide opening tool between the base and back cover.

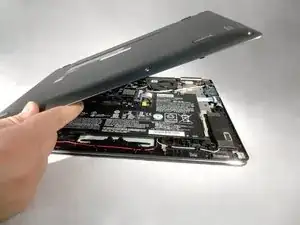

  3. VmbOA4MlAYKbnvlc

    • Lift back cover.

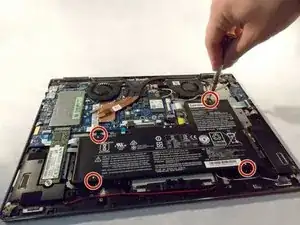

  4. Zbo6qAMCFQOkfynp

    • Remove the four 3.5 mm screws around the battery using the Phillips 00 screwdriver.

  5. SD2KCpNOaMBXMVUT

    • Disconnect the battery from the motherboard.

  6. MCIMmuYgVavQDVoO

    • Lift battery up gently to remove.

  7. gx5wOpW2uitygGeX

    • Use the JIS 1 screwdriver bit to unscrew the 3 screws.

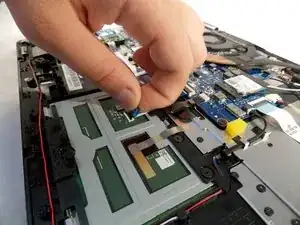

  8. oXhQ2IVLIJPOQChP

    • Grip the tab firmly.

  9. 1RRlPLODLgxTO3YF

    • Pull tab until it disconnects from the trackpad. Be gentle - you do not want to damage any part of the tab.

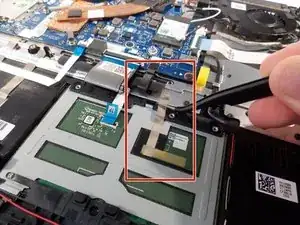

  10. LvEFPGnVCOZ6xv5k

    • Gently lift the tape with angled tweezers.

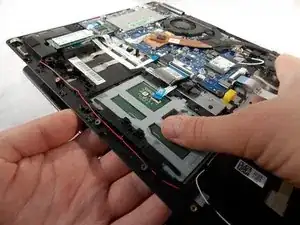

  11. aVMvRZwbAQr1ORKI

    • Push the trackpad to remove it.

    Although I don’t have this model but in fact a ThinkPad E595 instead, it worked in a very similar way so your instructions enabled me to fix it anyway. Thank you very much for this!

    Daniel Engelthaler -

Abschluss

To reassemble your device, follow these instructions in reverse order.
