Lenovo Yoga 710-15ISK SSD Replacement

Geschrieben von: Elisa Normand
  • Kommentare: 0
Lenovo Yoga 710-15ISK SSD Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

This guide will show you how to replace the SSD in a Lenovo Yoga 710-15ISK laptop. The storage of your laptop is an essential component that determines how many programs or files your device can store. This model of laptop uses an M.2 SSD for its storage and can be replaced if you are lacking space. Be sure your replacement SSD is also an M.2 form factor—a SATA or mSATA may be cheaper, but will not be compatible.

  1. PMSyAsXWKwhgAQZg
    PMSyAsXWKwhgAQZg
    KFVZbcwnGfP24GiR

    • Flip your laptop over so the bottom is facing upwards.

    • Remove ten 2 mm screws securing the back cover to the laptop using a Phillips #0 screwdriver.

  2. KnerAkaTijWqDSQG

    • Pry the back cover off of the laptop with your fingers.

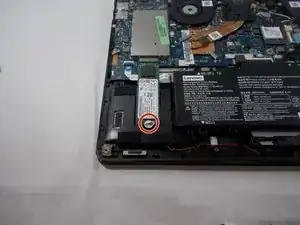

  3. 1RfWqkJOqCKNjttS

    • Remove the sticker from the SSD to gain access to the screw underneath.

  4. xuxMkyTLCb43rMyk
    xuxMkyTLCb43rMyk
    qxXgNXbkvIconVJo

    • Remove the screw holding the SSD in place using a Phillips #0 screwdriver.

    • Gently pull on the plastic clip next to the screw until the stick is freed and bounces up.

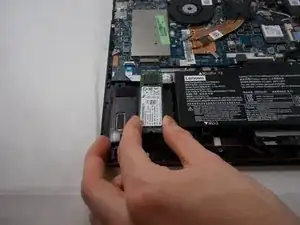

  5. sLUSpsuGBln1ZkrJ

    • Slide the SSD out of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
