Lenovo Yoga 720-12IKB Headphone Jack Replacement

Geschrieben von: Alex Escobar
  • Kommentare: 0
Lenovo Yoga 720-12IKB Headphone Jack Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

1 - 4 Minuten

Einleitung

If you are experiencing a loose or dirty headphone jack on your laptop then you will have to replace the headphone jack on the Lenovo 720-12IKB

The headphone jack on the Lenovo 720-12IKB is necessary to listen to the audio through a headset.

Use caution when replacing components in your Laptop as you could damage other components.

  1. jc1HLiWK1ZJqjKyI

    • Unscrew and remove the four 5.5 mm Phillips #00 screws on the back panel.

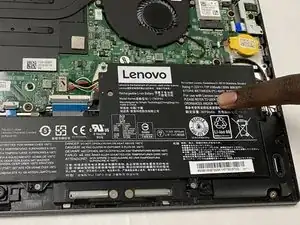

  2. OAMBDYwYqVDNAgf3

    • Pull down on the cover to remove it and you will see the battery after removing the cover.

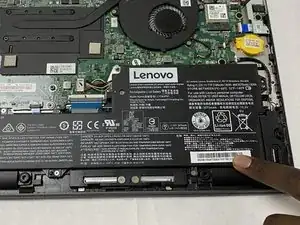

  3. YvrphtK1yAuSdejR
    YvrphtK1yAuSdejR

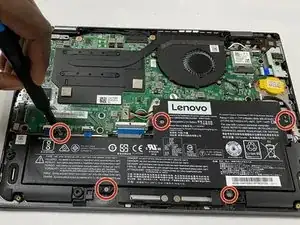

    O53LM33MippWe5bV

    • Unscrew and remove the 4.0 mm Phillips #00 screws on the battery to remove it from the motherboard.

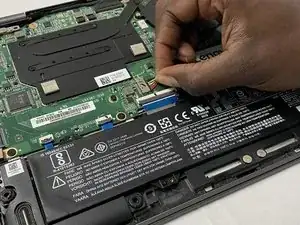

  4. IWYEUToGsJ4b5ZFc
    IWYEUToGsJ4b5ZFc

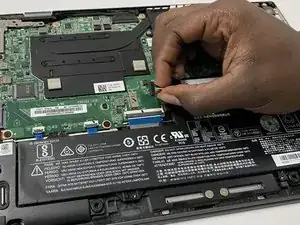

    sYFwCQVHJ2eXcqbI

    • Remove the battery wires from the socket on the motherboard above the battery.

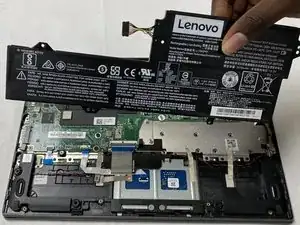

  5. AZBWi3uDhqEXVxMW

    • Finally remove the battery from the case.

  6. sGByXFhWcShCAXHL

    • The headphone jack can be found on the top right of the chassis.

    • Start by removing the 2.0 mm Phillips #00 screw.

  7. cID3rNh6cHjCRxSL

    • Undo the clip and remove the connector.

  8. Yf21JDLjkemVn5wX

    • Pull the connector to the right to remove it from the clip.

  9. moegRpR3gnpFRZXk

    • Remove the headphone jack from the chassis.

Abschluss

To reassemble your device, follow these instructions in reverse order.
