Lenovo Yoga 720-12IKB Motherboard Replacement

Geschrieben von: Alex Escobar
  • Kommentare: 0
Lenovo Yoga 720-12IKB Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 - 25 Minuten

Einleitung

If your Lenovo Yoga 720-12IKB laptop seems to be crashing more frequently or your laptop just won't turn on even after replacing the battery, then you will have to replace your motherboard.

Your laptop needs a motherboard to be able to be the laptop that you are using. The motherboard is what holds all the components and utilizes every feature that is promised with the Lenovo Yoga 720-12IKB.

Use caution when replacing the motherboard as you could hurt your hands. Be careful with the components on the motherboard as you remove it from the chassis as you could damage other components of the laptop.

  1. jc1HLiWK1ZJqjKyI

    • Unscrew and remove the four 5.5 mm Phillips #00 screws on the back panel.

  2. OAMBDYwYqVDNAgf3

    • Pull down on the cover to remove it and you will see the battery after removing the cover.

  3. YvrphtK1yAuSdejR
    YvrphtK1yAuSdejR
    O53LM33MippWe5bV

    • Unscrew and remove the 4.0 mm Phillips #00 screws on the battery to remove it from the motherboard.

  4. IWYEUToGsJ4b5ZFc
    IWYEUToGsJ4b5ZFc
    sYFwCQVHJ2eXcqbI

    • Remove the battery wires from the socket on the motherboard above the battery.

  5. AZBWi3uDhqEXVxMW

    • Finally remove the battery from the case.

  6. Yw3UPylA2WLKFYK4

    • The motherboard is located above the battery.

  7. HOeE1GCiFwPjJq2X

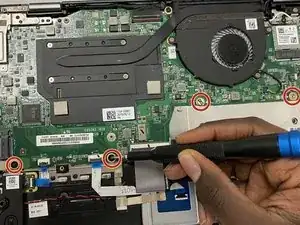

    • Unscrew and remove the 2.0 mm Phillips #00 screws.

  8. JajejIaAbfnSMB2y
    JajejIaAbfnSMB2y
    Y3MUVV4eOOtcLTNT

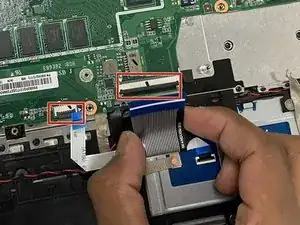

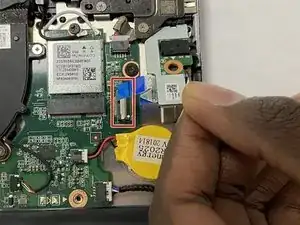

    • Disconnect the connectors by lifting up the clip and pulling them out.

  9. BZrHl2aZFF6XThoB

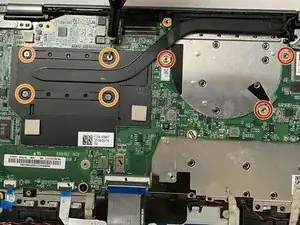

    • Remove the 4.0 mm Phillips #00 screws from the fan.

    • Remove the 4.0 mm Phillips #00 screws from the heatsink.

  10. CGLtZ2eAONH3OGcl
    CGLtZ2eAONH3OGcl
    UbeTwUYyhKIS4mn2

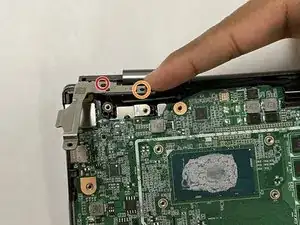

    • Remove the 5.5 mm Phillips #00 screws from the hinge.

    • Remove the 4.0 mm Phillips #00 screws froom the hinge.

    • Open the laptop a little to lift the hinge.

  11. IN3mvbAOjbsJNfit

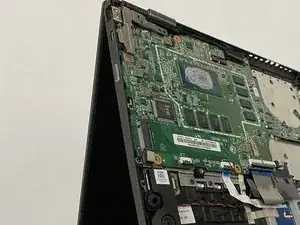

    • Remove the motherboard after all screws are out and connectors are disconnected.

Abschluss

To reassemble your device, follow these instructions in reverse order.
