Lenovo Yoga 720-12IKB Wireless LAN Card Replacement

Geschrieben von: Alex Escobar
  • Kommentare: 0
Lenovo Yoga 720-12IKB Wireless LAN Card Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

1 - 5 Minuten

Einleitung

If you can never seem to connect to the internet or the Wireless LAN Card isn't showing up in your Windows settings, then you may need to replace the Wireless LAN Card in your system.

Your Lenovo Yoga 720-12IKB needs a functioning Wireless LAN Card to be able to connect to the internet. Without the internet it can be difficult to enjoy the laptop to its full capabilities.

While taking out the Wireless LAN Card be mindful of the other components around as you could damage them.

  1. jc1HLiWK1ZJqjKyI

    • Unscrew and remove the four 5.5 mm Phillips #00 screws on the back panel.

  2. OAMBDYwYqVDNAgf3

    • Pull down on the cover to remove it and you will see the battery after removing the cover.

  3. YvrphtK1yAuSdejR
    YvrphtK1yAuSdejR
    O53LM33MippWe5bV

    • Unscrew and remove the 4.0 mm Phillips #00 screws on the battery to remove it from the motherboard.

  4. IWYEUToGsJ4b5ZFc
    IWYEUToGsJ4b5ZFc
    sYFwCQVHJ2eXcqbI

    • Remove the battery wires from the socket on the motherboard above the battery.

  5. AZBWi3uDhqEXVxMW

    • Finally remove the battery from the case.

  6. EMOPdnD2mhrK6ZXG

    • On the top right of the system you will find the wireless LAN card. Remove the 3.0 mm Phillips #00 screw.

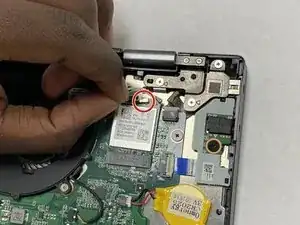

  7. IuR5DMcl4q5DHA13
    IuR5DMcl4q5DHA13

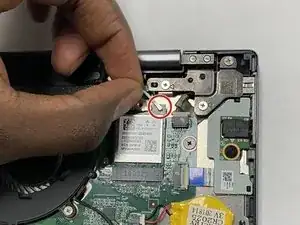

    bAOpXyYcLcKwMgke

    • Disconnect both wireless LAN cables by pulling up.

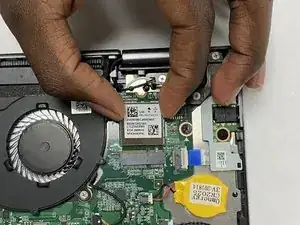

  8. jnghFSpq1DJraePq

    • Lift the wireless LAN card up and pull out.

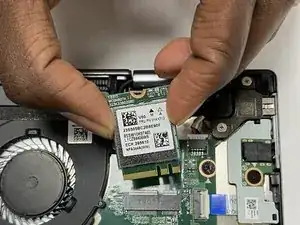

  9. 3J1mQnb3e2XJFBnF

    • You can now replace the wireless LAN card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
