Lenovo Yoga 720-13IKB Touchpad Replacement

Geschrieben von: Benjamin Porter Lesesne
  • Kommentare: 0
Lenovo Yoga 720-13IKB Touchpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

25 Minuten

Einleitung

  1. FL2m4Hq5DT1LgjQ5
    FL2m4Hq5DT1LgjQ5
    YjtELAyB3pohOOO4
    sAkjrjiNnT6oqbU2

    • Before you begin, be sure to turn off your laptop and discharge the battery down to 25%.

    • Start by flipping the device over so that you see the screws.

    • Remove seven Torx T5 short screws.

    • Remove three Torx T5 long screws.

  2. hfTPAjtqQmXQHRH1
    hfTPAjtqQmXQHRH1
    mVPhNaq1IixiUAhS
    jT1Wy5dwcqpIQZeV

    • Starting from the USB port, use your opening tool to gently pry up the case.

    • Make sure you are prying on the cover itself, not the metal shield around the USB port.

    • Pry along the laptop in the order shown by the arrows.

    • Do NOT pry along the top side, or you risk damaging the casing. Stay with the arrows.

  3. 5wvxLJqhry23JAsX
    5wvxLJqhry23JAsX
    4dZUco1OA4HfhJvE
    jMtoaRrXOksHKSSu

    • Lift the case from the bottom side. NOT the side with the hinges.

    • When you feel resistance, do NOT keep lifting or you will damage the housing.

    • Once you feel resistance, gently pull the case towards you. (away from the hinges.)

    • Remove the case.

  4. kWHeUqMJoAfXbXD1
    kWHeUqMJoAfXbXD1
    RKVctXeDSt3IPSlD
    bkdmKTG5nClTNf1v

    • This is the battery. For guides that are for other parts, the battery is removed for the reason of it being a pain to connect or disconnect while screwed in.

    • Be careful not to short anything on the motherboard, as the battery cannot be disconnected before removal.

    • Remove four J1 Philips screws.

    • Remove one J1 philips screw.

    • Do not mix these screws up. If you put the longer screw where the shorter screw belongs, you will damage the shield around the keyboard.

    • Lift the battery slightly using your plastic opening tool.

    • Do not lift the battery out all the way, as it is still connected to the motherboard.

    • Do NOT puncture or deform the battery or it may catch fire or even explode.

  5. EdBArGjCXT1LYl4f
    EdBArGjCXT1LYl4f
    rRgAC5MmN3gGQS34
    s6qCaDgVmSArpBgN

    • Pull the battery towards you until the wire is accessible.

    • gently tug and wiggle on the wire until it pops out.

    • Remove the battery.

  6. qLfZLxP6WyH3BDSI
    qLfZLxP6WyH3BDSI
    pRyiguTwOvpD2iEF

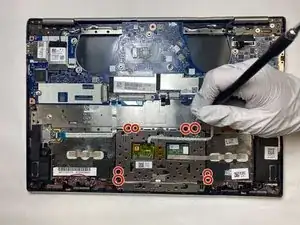

    • Use a Torx T5 screwdriver to remove the eight 8mm screws holding the touchpad in place.

  7. 5MqDHUVWDh5xhAqy
    5MqDHUVWDh5xhAqy
    Mhe3SvEQtFyc5LjJ

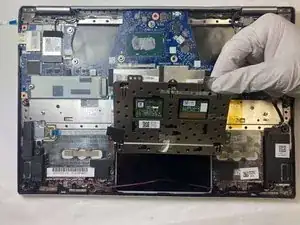

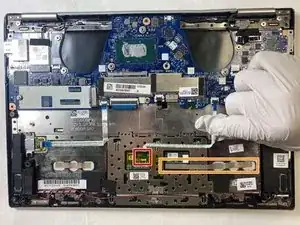

    • Lift the small black tab on the single ZIF connector in the center of the touchpad, and gently pull the white ribbon cable free.

    • Gently peel the silver conductive tape away from the touchpad shielding.

    • Do not discard the conductive tape. Reapply this strip during reassembly.

    • Remove the touchpad.

Abschluss

To reassemble your device, follow these instructions in reverse order.
