Lenovo Yoga 720-15IKB Display Replacement

Geschrieben von: Ryan Stewart
  • Kommentare: 1
Lenovo Yoga 720-15IKB Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

25 - 45 Minuten

Einleitung

If the screen in the Lenovo Yoga 720-15IKB is not properly displaying images or is cracked, it may be time to replace it. Follow these instructions to replace the display in your laptop.

  1. vFEwIFZ3MVTH1nnn
    vFEwIFZ3MVTH1nnn
    TufvlOlR6gIHLoDs
    eJpPegArgcoHKc3r

    • Power off the device before starting.

    • Flip the device over with the hinges facing away from you.

    • Remove seven 5.0 mm Torx T5 screws.

    • Remove three 9.5 mm Torx T5 screws.

  2. C3gcIiqxUYFsnUCL
    C3gcIiqxUYFsnUCL
    JWcuvryfEdQwmrLU

    • Pry around the edges from one side to another with a plastic opening tool.

    • Do not pry on the side with the hinges because this can break the cover.

    • Lift the case from the front until you feel resistance.

    • Do not keep lifting after you feel resistance, or the bottom cover can break.

    • Pull the cover towards you, away from the hinges.

    • Completely lift off the cover.

  3. H1lhTA1QFElCYeZs

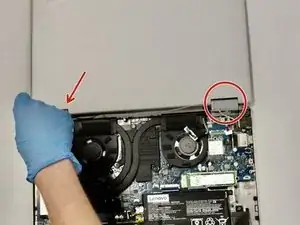

    • Remove the 6, 2.5x5 screws, located on the hinges of the underside of the device.

    • Separate the display from the back panel. The display should be away from the actual computer itself.

  4. enCMKuWERhcTHkrM

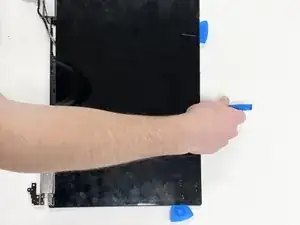

    • Use the opening picks and opening tool to pry off each side without cracking the display.

    • Once that is finished, carefully lift it up and place it on a safe surface.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Ryan Stewart

Mitglied seit: 15/02/21

117 Reputation

Ein Kommentar

This method didn't work for me. The screen is stuck to the lid with tape that has to be pulled from the bottom in order to release the screen without breaking it. I had to buy a new screen with tape.

Bruce Marcus -
