Lenovo Yoga 900-13ISK Keyboard Replacement

Geschrieben von: Austin Blakely

Kommentare: 2

Lenovo Yoga 900-13ISK Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

1 - 2 Stunden

Einleitung

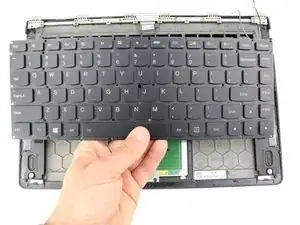

This step-by-step repair guide will show you how to replace the keyboard in the 13 inch Lenovo Yoga 900. Whether you have a malfunctioning key or the whole keyboard has ceased to work, replacing your keyboard will get you back to typing. Fortunately, the keyboard in the Yoga 900-13ISK is modular, so you can replace it without needing to replace the entire palm rest.

Be sure to unplug and completely turn off your device before you start working.

Werkzeuge

Schritt 1

Using a T5 Torx screwdriver, remove the ten 5.5 mm screws from the back case of the laptop.

Schritt 2

Use a spudger to pry open the back case at the hinges of the laptop.
There are plastic clips around the perimeter of the case holding down the back cover. These will need to be popped off as the cover is removed.
Use your fingers to completely pop off the back cover.

Schritt 3

Remove the five 3.6 mm screws from the battery with a Phillips #00 screwdriver.

Schritt 4

Grab the bottom corners of the battery and gently pull the battery until the cable disconnects from the connector on the motherboard.
While reassembling, use a plastic spudger to push the battery cable into the connector on the underside of the motherboard. This will be easier to do before the screws are replaced.

Schritt 5

Use a Phillips #00 screwdriver to remove the 2.7 mm screw that is holding down the SSD card.

Stop! Before you remove anything else, you can just un-secure the fan assm and lift it up to get the power connector cable out. This only requires removing the NGFF wifi card. You DON'T need to remove the motherboard like this guide recommends, just take care to not bend the heat pipe up too high as you lift the fan assembly, as it is quite fragile.

Avery Freeman -

Schritt 6

Pull the SSD card out of the port to the right.

Schritt 7

Pry up the gray and black coaxial cables from the Wi-Fi card using a spudger.
Move the cables to the side.

Schritt 8

Using a Phillips #00 screwdriver, remove the 2.2 mm screw holding down the Wi-Fi card.
The Wi-Fi card may pop up to rest at an angle to the motherboard after the screw is removed.

Schritt 9

Pull the WiFi card out from the connector on the motherboard.

Schritt 10

Using the pointed end of a spudger, flip up the hinged locking tabs of the eight ZIF connectors on the motherboard.
Pull the eight cables out from their connectors using a pair of blunt nose tweezers.

It is not necessary to open the 2 small connectors for the fans

Torsten Sadowski -

Schritt 11

Use a spudger to pry up the press fit connector on the right side of the motherboard.

Schritt 12

Remove the five 3.6 mm screws from the motherboard using a Phillips #00 screwdriver.

Schritt 13

Pull back the interconnect cable on the left side of the motherboard to reveal one of the fan screws for the left fan.
Remove the two 3.6 mm screws from the left fan with a Phillips #00 screwdriver.

Schritt 14

Remove the two 3.6 mm screws from the right fan using a Phillips #00 screwdriver.

Schritt 15

Unwind the black and white coaxial cables from the hooks on the right fan casing.

Schritt 16

Lift the motherboard from the bottom edge and pull it up and out of the case.
If you need to remove the fan assembly to swap it over to your new motherboard, continue to follow along with the heatsink guide.

Schritt 17

Remove the two 3.5 mm screws from the charging port with a Phillips #00 screwdriver.

Schritt 18

Peel up the charging port cable and remove the charging port.

Schritt 19

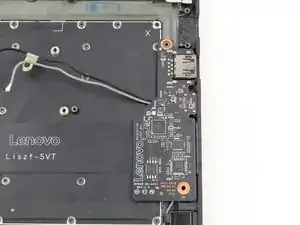

Remove the 3.6 mm screw from the daughterboard on the right with a Phillips #00 screwdriver.

Schritt 20

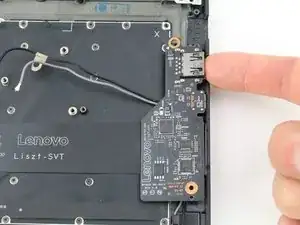

Lift the daughterboard from the right edge and peel off the interconnect cable from the keyboard panel.

Schritt 21

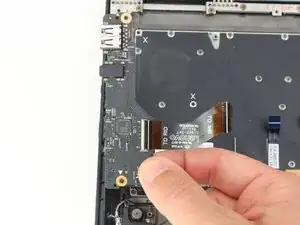

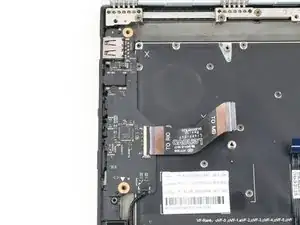

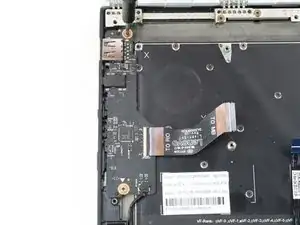

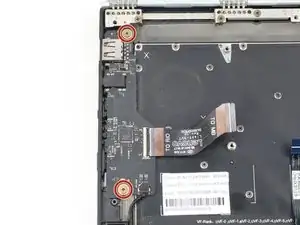

Use a Phillips #00 screwdriver to remove the two 3.6 mm screws from the daughterboard on the left.

Schritt 22

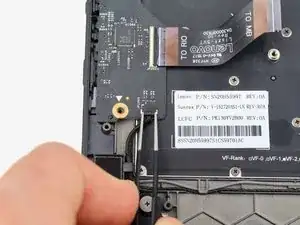

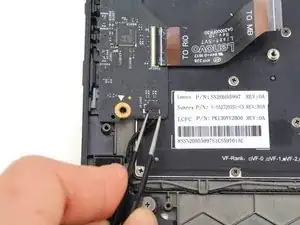

Use a pair of blunt nose tweezers to pull out the speaker cable on the lower portion of the daughterboard.

Schritt 23

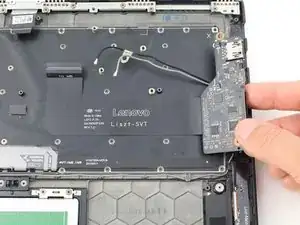

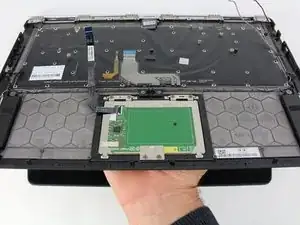

Lift up the daughterboard from the right side to remove it from the case.

Schritt 24

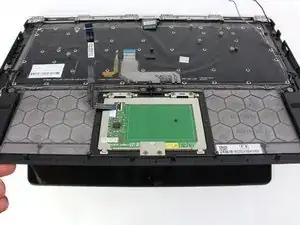

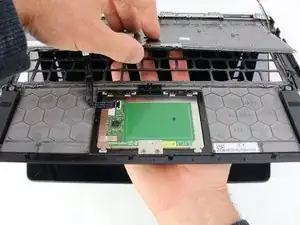

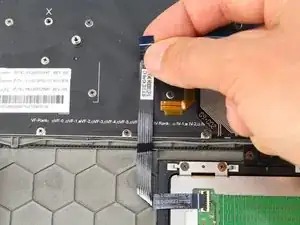

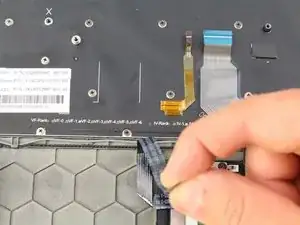

Peel back the trackpad cable from the black keyboard panel.

Schritt 25

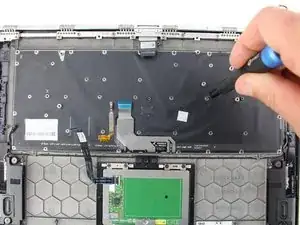

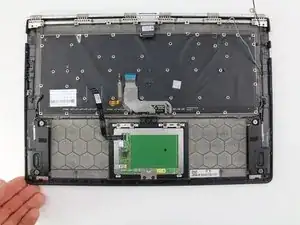

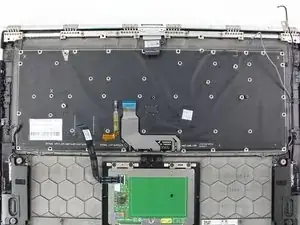

Remove the forty-one 1.9 mm screws from the keyboard panel with a Phillips #000 screwdriver.
While reassembling, you can use the 'X' markings to tell which holes do not need screws.
