In this guide, you will learn how to remove the bottom panel on the Lenovo YOGA 910-13IKB.
This has to be done to perform any maintenance or repairs on the device.
Werkzeuge
-
-

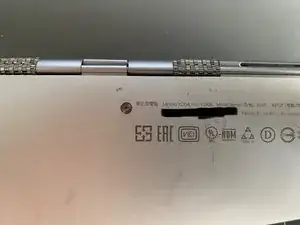

Turn the laptop over and remove the ten Torx T5 screws along the perimeter of the bottom panel.
-
Remove the panel.
-
-
-

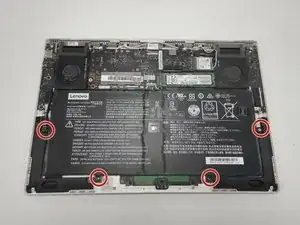

Remove all 4 screws attached to the battery with a small Phillips head screwdriver.
-
Each screw on the back is M2 x 1.7mm
-
After the screws are taken out, remove the battery.
-
-
-
Remove all 6 screws attached to the trackpad with a small Phillips head screwdriver.
-
Each screw on the back is M2 x 1.7mm
-

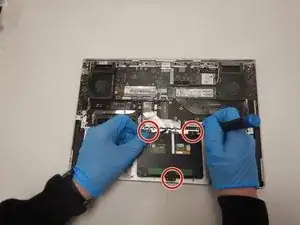

Detach the ribbon cable connected to the trackpad using a wedge device.
-
Remove the trackpad using a wedge device
-
-
-

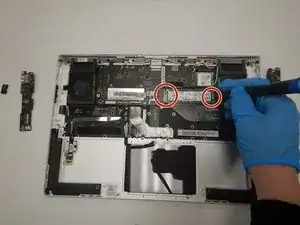

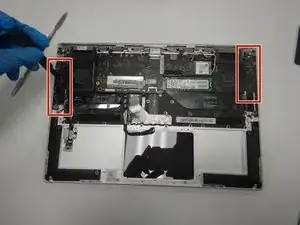

Remove all 6 screws attached to the USB ports on both sides of the device with a small Philips head screwdriver.
-
Detach both ribbon cables attached to each USB port with a wedge device, then detach the USB ports.
-
-
-

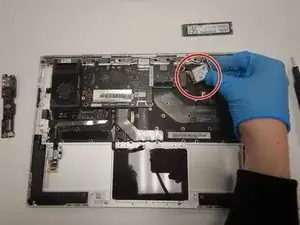

Remove all 4 screws attached to SSD stick with a small Phillips head screwdriver.
-
Pull the SSD stick directly to the right until it shifts out of place to remove it.
-
The storage chip above it (further away from you) may also simply be detached by pulling it directly to the right until it clicks out.
-
-
-

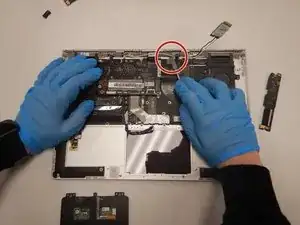

Remove all 4 screws attached to both fans, and the back connector strip (long metal piece furthest from you with screws in it) with a small Phillips head screwdriver
-

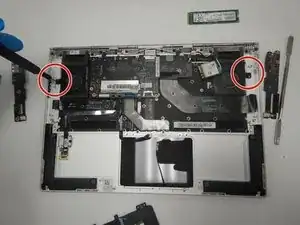

Remove the back connector strip using a wedge device to pry it off of the device
-

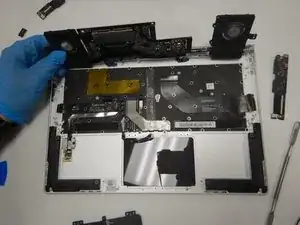

With the back connector strip removed, pry the fans (which are attached) using a wedge device and the fans will now be maintainable.
-
To reassemble your device, follow these instructions in reverse order.
