Lenovo Yoga 910-13IKB Fingerprint Reader Replacement

Geschrieben von: Nikki Sorfleet

Kommentare: 0

Lenovo Yoga 910-13IKB Fingerprint Reader Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

10 - 15 Minuten

Einleitung

Follow this guide to replace the fingerprint reader in your Lenovo Yoga 910-13IKB. If you have ensured that the finger you are trying to sign in with has been properly registered and the reader is clean of any grease or debris, but the reader still fails to correctly recognize your finger, it may need to be replaced. While this replacement is one of the longer ones in terms of time for this device, it is still quick and easy to do, requiring only a JIS #00 screwdriver.

Werkzeuge

JIS #00 Screwdriver

Schritt 1

Before you begin, be sure to turn off your laptop and unplug it from the outlet.
Turn the laptop over and remove the ten Torx T5 screws along the perimeter of the bottom panel.
Remove the panel.

Schritt 2

Remove all 4 screws attached to the battery with a small Phillips head screwdriver.
Each screw on the back is M2 x 1.7mm
After the screws are taken out, remove the battery.

Schritt 3

Remove all 6 screws attached to the trackpad with a small Phillips head screwdriver.
Each screw on the back is M2 x 1.7mm
Detach the ribbon cable connected to the trackpad using a wedge device.
Remove the trackpad using a wedge device

Schritt 4

Remove all 6 screws attached to the USB ports on both sides of the device with a small Philips head screwdriver.
Detach both ribbon cables attached to each USB port with a wedge device, then detach the USB ports.

Schritt 5

Remove all 4 screws attached to SSD stick with a small Phillips head screwdriver.
Pull the SSD stick directly to the right until it shifts out of place to remove it.
The storage chip above it (further away from you) may also simply be detached by pulling it directly to the right until it clicks out.

Schritt 6

Remove all 4 screws attached to both fans, and the back connector strip (long metal piece furthest from you with screws in it) with a small Phillips head screwdriver
Remove the back connector strip using a wedge device to pry it off of the device
With the back connector strip removed, pry the fans (which are attached) using a wedge device and the fans will now be maintainable.

Schritt 7

Remove the four 3 mm Phillips #0 screws holding the battery in place.

Schritt 8

Disconnect the battery cable from its motherboard socket by gently pulling it towards the battery. The spudger tool may be needed to lift the flap seal.
Pull parallel to the battery, not straight up.
Pull evenly on the width of the cable so that no individual wire is overly strained.
Lift the battery out.

Schritt 9

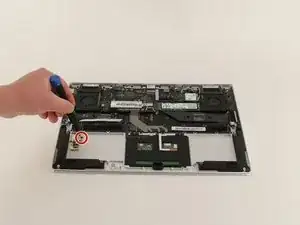

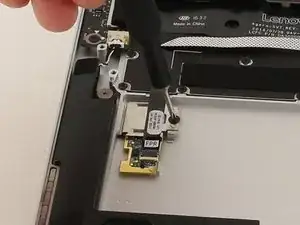

Remove the one 3mm JIS #00 screw on the right side of the silver component.

Schritt 10

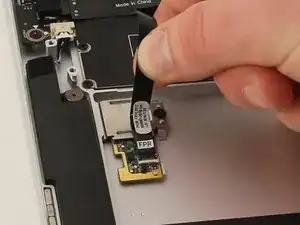

Gently pull up on the ribbon cable to detach it from the metal housing.

Schritt 11

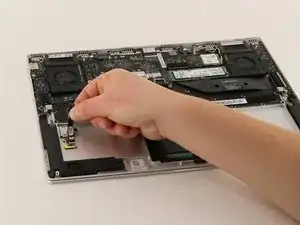

Lift the metal housing out and set it aside. This component holds the reader in place.

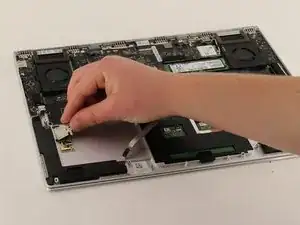

The left side of the component is tucked under the lip of the computer, so lift from the right side of the component.
