Lenovo Yoga 910-13IKB Wi-Fi Card Replacement

Geschrieben von: Tyler Jane McClure
  • Kommentare: 0
Lenovo Yoga 910-13IKB Wi-Fi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 30 Minuten

Einleitung

If you need to replace the Wi-Fi card in your Lenovo Yoga 910-13IKB follow this guide.

  1. mOQxDmSyXl4G6TMe
    mOQxDmSyXl4G6TMe
    OKPc5kPSyVUOx6XA

    • Turn the laptop over and remove the ten Torx T5 screws along the perimeter of the bottom panel using the T5 Torx Screwdriver.

    • Remove the back panel from the device exposing the components.

  2. iIp5d1lkTsrTaTFP

    • Remove the four 3 mm Phillips #0 screws holding the battery in place.

  3. BCIgxPVZHo1JFP1e
    BCIgxPVZHo1JFP1e
    XTeY1iFJAdgyoFNU
    p3vbWWq2dFXWAiNq

    • Disconnect the battery cable from its motherboard socket by gently pulling it towards the battery. The spudger tool may be needed to lift the flap seal.

    • Pull parallel to the battery, not straight up.

    • Pull evenly on the width of the cable so that no individual wire is overly strained.

    • Lift the battery out.

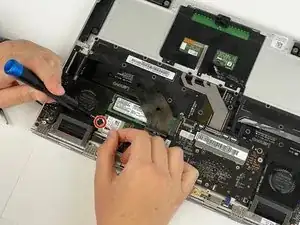

  4. Y6rZAnn5NCE211VT

    • Remove the single 1 mm screw at left of Wi-Fi card with a Phillips #0 screwdriver.

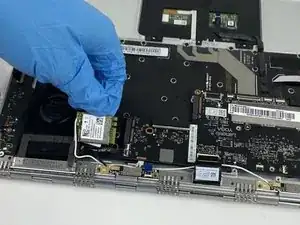

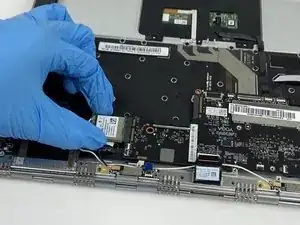

  5. bNTJUVAhrTTpVtyM
    bNTJUVAhrTTpVtyM
    ieAoEDDtlfOfcfZn

    • Pull the Wi-Fi card out of the slot on the motherboard.

    • It is still connected to the coaxial cables so don't yank it out or those connections will break.

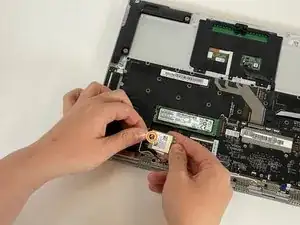

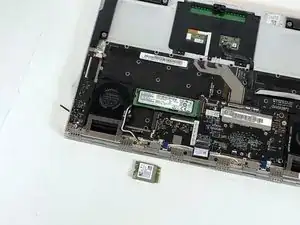

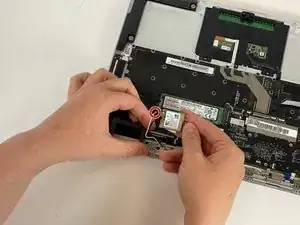

  6. BT1ulSjwQADwepdq
    BT1ulSjwQADwepdq
    sleOINeBTcw4nnMX
    yVjjydybACnQAMJu

    • Detach the white wire that is connected to the Wi-Fi card by applying gentle pressure.

    • Detach the black wire by applying gentle pressure.

Abschluss

To reassemble your device, follow these instructions in reverse order.
