Lenovo Yoga 920-13IKB Audio Jack Replacement

Geschrieben von: Alyssa McCulloch
  • Kommentare: 3
Lenovo Yoga 920-13IKB Audio Jack Replacement

Schwierigkeitsgrad

Difficult

Schritte

13

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide shows how to replace the audio jack on the Lenovo Yoga 920-13IKB.

  1. AID2BQdmpeC1JvNe
    AID2BQdmpeC1JvNe
    qMh6tfLuJMt5xwjM

    • Flip the device over to access the screws on the back cover.

    • Remove the ten 5mm Torx T5 screws on the back cover to loosen the back cover.

  2. mxS5m6auTObfv6PO
    mxS5m6auTObfv6PO
    I5E36gGiNCDeVhV5
    fHNC3jBueRYYesEh

    • Slide the iFixit Opening Tool under the back cover to lift it up.

    • Pull up on the cover with your hand to release the tab holding the center of the cover in place.

    Die Mitte der unteren Abdeckung wird von zwei Plastiknoppen am Gerät gehalten. Wenn die Schrauben gelöst sind, mit beiden Händen unter die Abdeckung greifen und nach oben gerade wegziehen.

    Captainquark -

  3. GVPUwRRUCf1iJv1M
    GVPUwRRUCf1iJv1M
    JqkP5dUQdYl1BRy4

    • Remove the twelve 5mm Phillips #00 screws to loosen the motherboard.

  4. MlUDLV1NxWeSM3xs
    MlUDLV1NxWeSM3xs
    RtxQ2HUosj5REJxk
    OOGlcuqUxt1mNetX

    • Flip up the ten flat connectors holding the motherboard using the iFixit Opening Tool to free the motherboard.

  5. Sdwfo2K1dGkvEkoK
    Sdwfo2K1dGkvEkoK
    2HCXQcjiT2BEq2vR

    • Pull out the ribbon cables from the opened connectors using the iFixit Tweezers to free up the motherboard.

  6. FZh4JBfQO6lsyVi3
    FZh4JBfQO6lsyVi3
    VuiN6Jhj4CNdq6dA

    • Disconnect the battery by pulling the ribbon wire grouping out of the top of the motherboard.

  7. fHvio1A4CDGGajNW
    fHvio1A4CDGGajNW
    LlHTrqfdvhu1hNWH

    • Disconnect the red and black wire from the motherboard using the iFixit Tweezers.

    Hi there. Could this step be further clarified, please? Does the small rectangular plastic component detach from the board?

    Dean Peart -

    I ended up simply unscrewing the speaker module that these Red and black cables connect to and removing that along with the motherboard.

    Dean Peart -

  8. yy5GLneTH2BBIjHw
    yy5GLneTH2BBIjHw
    JshlSAkikvQ4f3Ty
    oLLdtlLknuJsH2SS

    • Lift the motherboard up parallel to the hinge of the device.

    • Gently pull away from the port cutouts of the USB-C and audio jack to remove the motherboard from the device casing.

    • Avoid pulling the motherboard all the way out until the green AC card is disconnected.

  9. OpIYUNKUDMcQmbmD
    OpIYUNKUDMcQmbmD
    sbq5nYQl21kOMQ2X
    YUjFBufjuGGUsOWR

    • Disconnect the green AC card plugged into the motherboard by pulling it out with your hands.

  10. OyLHs3VvXDC4lNwD

    • Flip the motherboard over to access the back side.

  11. fBTFYqpg4GMWqpwX
    fBTFYqpg4GMWqpwX
    sGGbVOVWcCi6dH5T
    Qknx1QDFkNsbGSMT

    • Remove four 3mm JIS #00 screws with the screwdriver.

    • Remove one 3mm Phillips #00 screw with the screwdriver.

    • The screws stay attached to the speaker when removed from the motherboard.

  12. 4hW3ABFIpfWobLuZ

    • Separate the fans from the motherboard to isolate it for replacement.

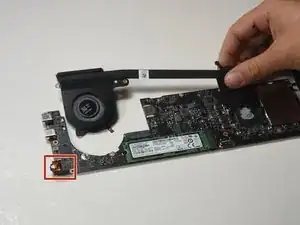

  13. sITTRZ3edJJUlNsi

    • Replace the motherboard to replace the audio jack.

Abschluss

To reassemble your device, follow these instructions in reverse order.
