Lenovo Yoga 920-13IKB Speaker Replacement

Geschrieben von: Alyssa McCulloch
  • Kommentare: 1
Lenovo Yoga 920-13IKB Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

4 - 5 Minuten

Einleitung

This guide will show you how to replace the speakers in the Lenovo Yoga 920-13IKB.

  1. AID2BQdmpeC1JvNe
    AID2BQdmpeC1JvNe
    qMh6tfLuJMt5xwjM

    • Flip the device over to access the screws on the back cover.

    • Remove the ten 5mm Torx T5 screws on the back cover to loosen the back cover.

  2. mxS5m6auTObfv6PO
    mxS5m6auTObfv6PO
    I5E36gGiNCDeVhV5
    fHNC3jBueRYYesEh

    • Slide the iFixit Opening Tool under the back cover to lift it up.

    • Pull up on the cover with your hand to release the tab holding the center of the cover in place.

    Die Mitte der unteren Abdeckung wird von zwei Plastiknoppen am Gerät gehalten. Wenn die Schrauben gelöst sind, mit beiden Händen unter die Abdeckung greifen und nach oben gerade wegziehen.

    Captainquark -

  3. mbsUEDlNcUWHEPi4
    mbsUEDlNcUWHEPi4
    1wy1ZNKsPJkXy5eQ

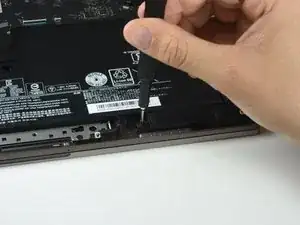

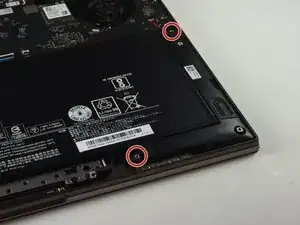

    • Remove two 3mm Phillips #00 screws that hold the speaker in place.

    • These steps are applicable for the speaker on the right or left. Identify the speaker to replace then proceed.

  4. Av3vmb5cUjLlOl2b
    Av3vmb5cUjLlOl2b
    ifcW5eaQSotJXd5g

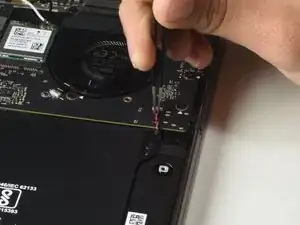

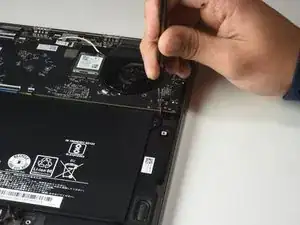

    • Disconnect the red and black wire from the motherboard to free the speaker.

  5. QhBXXDYPtJUmIZBk

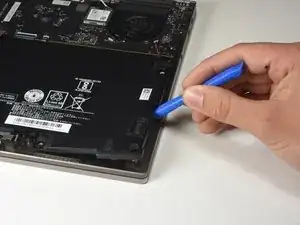

    • Lift up the speaker with the iFixit Opening Tool and remove the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
