Lenovo Yoga 920-13IKB USB 3.0 Port Replacement

Geschrieben von: Alyssa McCulloch
  • Kommentare: 2
Lenovo Yoga 920-13IKB USB 3.0 Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

This guide shows how to replace the USB 3.0 port on the Lenovo Yoga 920-13IKB.

  1. AID2BQdmpeC1JvNe
    AID2BQdmpeC1JvNe
    qMh6tfLuJMt5xwjM

    • Flip the device over to access the screws on the back cover.

    • Remove the ten 5mm Torx T5 screws on the back cover to loosen the back cover.

  2. mxS5m6auTObfv6PO
    mxS5m6auTObfv6PO
    I5E36gGiNCDeVhV5
    fHNC3jBueRYYesEh

    • Slide the iFixit Opening Tool under the back cover to lift it up.

    • Pull up on the cover with your hand to release the tab holding the center of the cover in place.

    Die Mitte der unteren Abdeckung wird von zwei Plastiknoppen am Gerät gehalten. Wenn die Schrauben gelöst sind, mit beiden Händen unter die Abdeckung greifen und nach oben gerade wegziehen.

    Captainquark -

  3. jRPuCNMWYUwn2ZkM
    jRPuCNMWYUwn2ZkM
    LyWjNL24BkG5Eh4u

    • Disconnect the red and black wire connected to the speaker using the iFixit Tweezers.

  4. ANPV6cZNyor62OOS

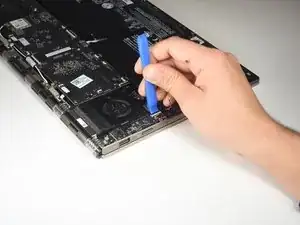

    • Lift up the black tab on the flat cable connector with the iFixit Opening Tool.

  5. uPiONljmDyKgVcm6
    uPiONljmDyKgVcm6
    knPTbCE4KNXAZAkp
    Lg5EkqGKKmNmgxSU

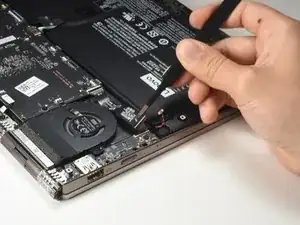

    • Flip up the tab using the iFixit Tweezers to release the flat cable.

  6. IKDCY2c2LO3mpJBQ
    IKDCY2c2LO3mpJBQ
    G6uiBBXLsnlVkBkk

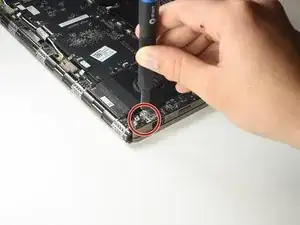

    • Undo the two 3mm Phillips #00 screws to loosen the USB 3.0 board.

  7. DCXpTKTMWe4oqGgr
    DCXpTKTMWe4oqGgr
    eHIcPmnNRGLLVocX
    QFuZ4O4kP5VqeHQv

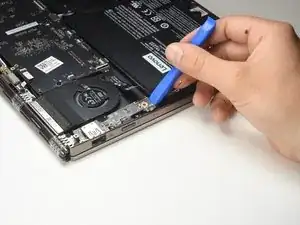

    • Remove the USB 3.0 Board from the device using the iFixit Opening Tool.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Alyssa McCulloch

Mitglied seit: 24/01/19

1765 Reputation

Ein Kommentar

Just wanted to say thank you to Alyssa and the others who contributed to this.

I just used your guide to fix a problem with my Yoga constantly entering and waking (repeatedly, seconds apart) from connected sleep mode. Infuriating. It was accompanied by the USB connect/disconnect sound as well.

Using the Event Viewer I managed to find out it was entering sleep mode in response to the power button (which I wasn’t pressing). So, I used your guide to disconnect and reconnect the USB board and it has resolved my issue.

iFixIt gained some tools income, you gained some more reputation points, and I gained a laptop that’s behaving itself now!

Now, what else can I break? ;o)
