Lenovo Yoga Book X90F Bottom Screen Camera Replacement

Geschrieben von: Tim Freund
  • Kommentare: 3
Lenovo Yoga Book X90F Bottom Screen Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

35 - 45 Minuten

Einleitung

Use this guide to replace the bottom camera in your Lenovo Yoga Book X90F.

The Lenovo Yoga Book X90F comes with two cameras, one on the top screen and one on the bottom. The bottom camera is used when the computer is in Tablet mode.

Before considering replacing the camera, check out the Lenovo Yoga Book X90F troubleshooting page.

Replacing the camera requires the removal of the bottom screen. This process will end up with you needing to also replace the screen. Be careful as sharp glass can become a problem if the screen shatters.

  1. GfiXLIojsSUJi5ab

    • Turn off and power down the device before beginning this process. A heat gun or hair dryer will be suitable to heat the adhesive that holds down the screen. Apply heat to the entire surface area of the bottom screen.

    • New adhesive will be required when completing the steps in reverse order.

  2. 3BrEC6bOykXD1wwL
    3BrEC6bOykXD1wwL
    3KKv4g6TIeaTOZRA

    • Once the adhesive has been heated up, take the iFixIt suction cup and lift in a corner. The screen should be separating from the adhesive here.

    • While the screen is lifted, insert the ifixit opening pick to help pry off the screen.

    • The screen may crack easily as it is thin and fragile.

    basically by this technique the screen WILL be cracked (as the images here show, and as I was actually expecting sadly). I wonder if there is a safer technique to remove the screen, even though it is too late for me now?

    Mark Rohde -

    I also &&^&@@ up the screen following this guide. Too bad, the thing costs 160 euros.

    tanner85 -

    This is barbaric work. The keyboard is broken at the edges. In other words, it's not just the battery that needs to be replaced 😁 It wasn't heated enough at the edges. You shouldn't tense up

    Ricsi Fusti -

  3. lJCgjSvDX24FgliB

    • While the screen has been lifted, insert the plastic opening picks. Heat the adhesive and follow with the screen removal tool to ensure that you are not prying it apart with excessive force.

  4. RAHkaeBokaPINODL
    RAHkaeBokaPINODL
    Lb3n3Hp24H2bbuug
    U1rIZuDiQVcdPoZK

    • After the screen has been opened, disconnect the ribbon connecting the bottom screen to the motherboard by gently pulling the ribbon with tweezers.

    • If there are black coverings on the tabs as shown in the second image, carefully remove them using a pair of tweezers.

    • You can find more information on Zero Insertion Force (ZIF) connectors on this guide.

  5. T1hMTUIBnMeFbCJR

    • Separate and remove the bottom screen from the device.

  6. VpukPXLDIAkLtIwG
    VpukPXLDIAkLtIwG
    SlPJQnhHRYweIAig
    UB32ub6hHuJRAAVN

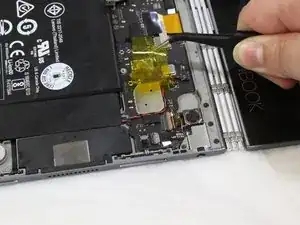

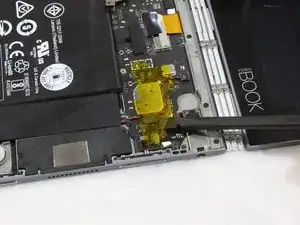

    • Use the spudger to remove the yellow sticker from the motherboard.

  7. 1Zd5HfvFjbLwpXKA
    1Zd5HfvFjbLwpXKA
    FxGEjAScZBOyTUjR
    Sw1oI2FDgIeLRYyo

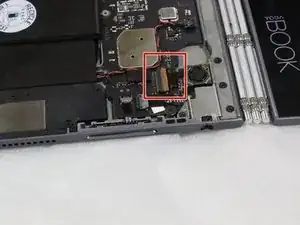

    • Remove the camera's orange ribbon connector tab.

    • Use the spudger to get under the orange tab and lightly pull upwards.

    • This lets the ribbon disconnect easily from the motherboard.

    • Use the a pair of tweezers to remove the ribbon.

  8. OMJ4Dn1oNfB11BuY
    OMJ4Dn1oNfB11BuY
    deNKOiM1pRYObKcG

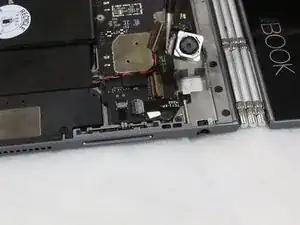

    • Use the pointed end of the spudger to pry out the camera.

    • There is a line of double sided adhesive that holds the camera down. This may take some force to remove.

    • Pull out the camera with tweezers.

    • Add a new adhesive strip to hold the camera down when installing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
