Lenovo Yoga Book X90F Bottom Screen/Keyboard Replacement

Geschrieben von: Cristian Harris

Kommentare: 6

Lenovo Yoga Book X90F Bottom Screen/Keyboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

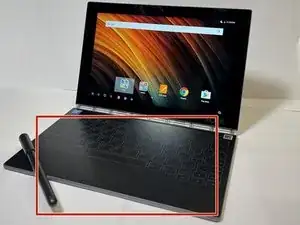

Lenovo Yoga Book X90F. Model number: Lenovo YB-J912F. This guide will help to replace the keyboard if it does not work after trying to turn it on. This keyboard is useful when using the Lenovo Yoga Book in laptop mode. The relevant troubleshooting section can be found using this link. Please be aware that when replacing the screen, there is a large possibility that it will crack and will need to be replaced. Take caution as the screen is made of glass.

Werkzeuge

Schritt 1

Turn off and power down the device before beginning this process. A heat gun or hair dryer will be suitable to heat the adhesive that holds down the screen. Apply heat to the entire surface area of the bottom screen.
New adhesive will be required when completing the steps in reverse order.

Schritt 2

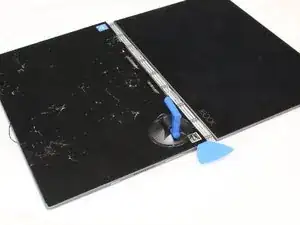

Once the adhesive has been heated up, take the iFixIt suction cup and lift in a corner. The screen should be separating from the adhesive here.
While the screen is lifted, insert the ifixit opening pick to help pry off the screen.
The screen may crack easily as it is thin and fragile.

basically by this technique the screen WILL be cracked (as the images here show, and as I was actually expecting sadly). I wonder if there is a safer technique to remove the screen, even though it is too late for me now?

Mark Rohde -

I also &&^&@@ up the screen following this guide. Too bad, the thing costs 160 euros.

tanner85 -

This is barbaric work. The keyboard is broken at the edges. In other words, it's not just the battery that needs to be replaced 😁 It wasn't heated enough at the edges. You shouldn't tense up

Ricsi Fusti -

Schritt 3

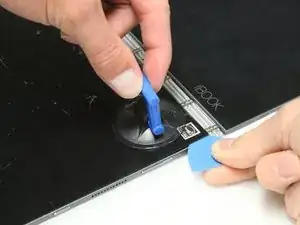

While the screen has been lifted, insert the plastic opening picks. Heat the adhesive and follow with the screen removal tool to ensure that you are not prying it apart with excessive force.

Schritt 4

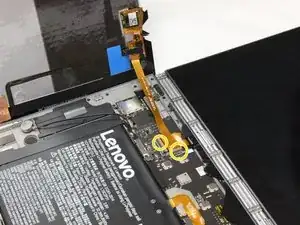

After the screen has been opened, disconnect the ribbon connecting the bottom screen to the motherboard by gently pulling the ribbon with tweezers.
If there are black coverings on the tabs as shown in the second image, carefully remove them using a pair of tweezers.
You can find more information on Zero Insertion Force (ZIF) connectors on this guide.

Schritt 5

Separate and remove the bottom screen from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
