Lenovo Yoga C930-13IKB Display Replacement

Geschrieben von: Josiah Grayson Sawyer
  • Kommentare: 1
Lenovo Yoga C930-13IKB Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

30 - 45 Minuten

Einleitung

  1. oNJtsja5YlMSp6NA
    oNJtsja5YlMSp6NA
    cDbchhXjYIWS43SS

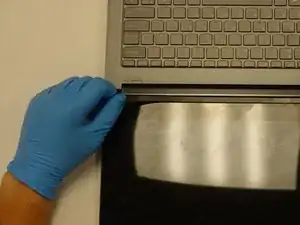

    • Using a halberd spudger, gently lift up the metal bezel that lines the lower edge of the display.

  2. QDQsW5vBlFyyA2fE

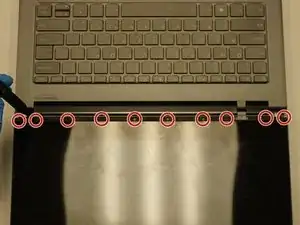

    • Remove the ten 3 mm screws along the bottom edge of the display with a Phillips #00 screwdriver.

  3. SiyhBRyZ1wNKI5rX
    SiyhBRyZ1wNKI5rX
    qqWRedPwGXODtUhc

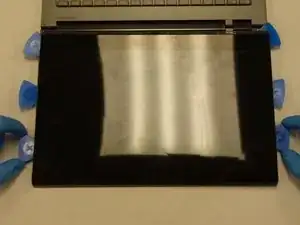

    • Gently wedge two opening picks underneath the display.

    • Slowly work the opening picks around the display.

    • Add opening picks as needed to keep display separated from the frame.

    • Use caution if dealing with broken glass.

    • The iFixit suction cup tool can be used to add some extra leverage to the mix when removing the display.

  4. 4IumNUcZQwWiurV3
    4IumNUcZQwWiurV3
    JLcIAEsVsBULZw3T

    • Gently flip the display assembly to rest on top of the keyboard.

  5. EVYw2AvRj5Qv4T24
    EVYw2AvRj5Qv4T24
    xFwEZaKwieIwbHvt

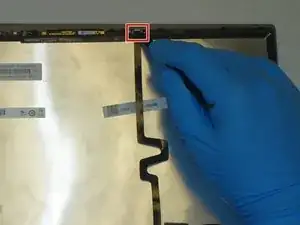

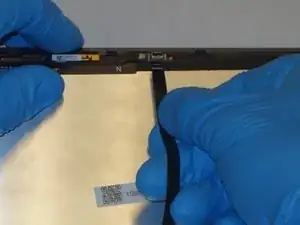

    • Use the halberd spudger to lift the locking tab of the ZIF connector holding the black ribbon cable that runs vertically across the display.

    • Pull out the black ribbon cable from the connector.

  6. IcXDX6uLpJZ6YwYo
    IcXDX6uLpJZ6YwYo
    paAhbpVvVTI1nP1b
    DOTFZwAh3laqP4wm

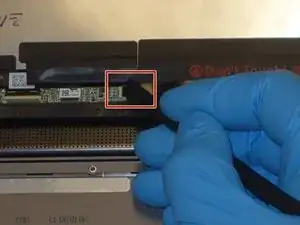

    • Use the halberd spudger to lift the latch on the ZIF connector of the horizontal black ribbon cable.

    • Pull out the horizontal black ribbon cable from the connector.

    • Gently pull the rest of the horizontal black ribbon cable from the back of the display.

  7. RJjiBTkHWbJ44gRW
    RJjiBTkHWbJ44gRW
    ALEoUuGKHARFINCR
    axmi1NMXBvhMxL3G

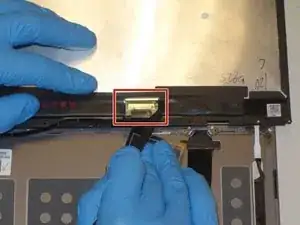

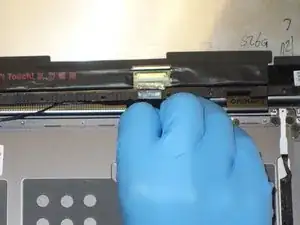

    • Use the halberd spudger to flip the metal latch of the display cable up.

    • Using the halberd spudger, gently pull the connector out of the display.

  8. SU2pvATdqLhoY3nl

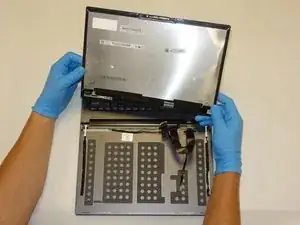

    • Gently lift the display away from the laptop frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
