Lenovo Yoga Tab 3 10 Wifi Module Replacement

Geschrieben von: Phanudej

Kommentare: 7

Lenovo Yoga Tab 3 10 Wifi Module Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

4 Minuten

Einleitung

Use this guide to replace your wifi module

Werkzeuge

Schritt 2

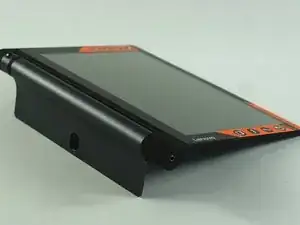

Remove the sticker located directly under the the built-in kickstand to reveal two 0.75 mm screws.

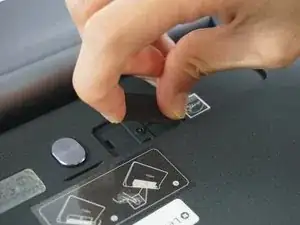

Remove the microSD card slot cover. Remove any microSD card (if inserted).

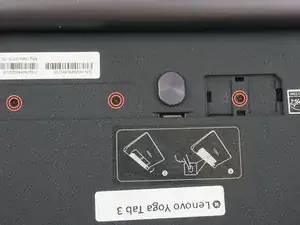

Using a Phillips head screwdriver, remove the three 0.75 mm screws.

On 3 plus model the third screw is not under microSD card but rather under a small sticker on the right side. Plus has longer battery.

George - 07/06/20

on the Tab 3 plus , the third screw is not under the sd card but a little further over under another sticker and is painted white

dan o brien - 19/05/21

Schritt 3

Orient the device so the screen is facing you.

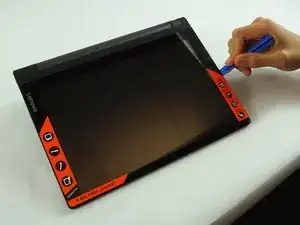

Carefully insert the spudger along the seam between the screen and back cover and gently separate the back cover from the device frame.

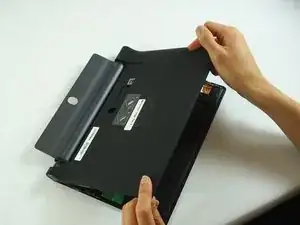

Continue to detach the backplate from the frame by moving the spudger around the perimeter.
Some force will be required to detach the small plastic braces securing the backplate to the device.

On some models there is glue pad under the sim/sdcard tray.

Ervins Stepanovs - 08/09/17

Ein Hinweis auf den Federrahmen an der Kamera wäre nützlich. Er ist sehr empfindlich. Ich habe ihn beim Öffnen zerstört und jetzt stellt die Kamera nicht mehr scharf.

Thomas Spieker -

Hallo Thomas, tut mir leid, dass deine Kamera nicht mehr schart stellt. Aber die Anleitungen funktionieren wie Wikipedia: Wenn du mehr Infos hast, stelle sie gern allen anderen zur Verfügung!

Fabian Neidhardt -

(at least on the Plus model) the most difficult plastic clips are near the micro-SD/SIM. So it is easier to release the other side, where the camera not is. or pull the casing "down" towards the battery/stand.
