Lenovo Yoga Tab 3 8 Camera Replacement

Geschrieben von: Nicklaus Krems

Kommentare: 4

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

15 - 20 Minuten

Einleitung

If you are following this guide, that means your camera is not responding on your Lenovo Yoga Tab 3 8. Before starting to work on your device, it is advised to back up any important files just in case something happens. You will want to make sure you have the device powered off to prevent harming yourself or damaging your hardware, especially because you will have to remove the battery to remove the camera. To make reassembly easier, be sure to avoid misplacing the small screws by keeping track of them as you go.

Werkzeuge

Schritt 1

Open the kickstand by pressing the release button in the center.
Remove the identification sticker with a pair of tweezers to allow access to the two 2mm screws underneath.

Schritt 2

Remove the three 2mm screws under the kickstand with a PH00 screwdriver.
The third 2mm screw to the right may have an S sticker covering it which you can scrape off.

PH000 is the correct size.

Thomas Cacaj - 10/12/22

Schritt 3

Starting along the edge opposite of the hinge, insert a plastic opening tool between the screen and the backing to begin separating the small clips holding the backing on.
Work along the edge and then up the sides, separating the clips with the plastic opening tool.
There is adhesive underneath the slot for the SD card so you will need to slowly apply some force to break the adhesive.
As the back is separated from the device, be careful to not lose the power button. It may come loose and fall out.

this step is not clear. Where are the clips ? The screen looks inset. How to insert the tool ?

Chiruvolu Sivachander - 04/12/20

Schritt 4

With the tablet oriented screen side down and hinge opposite of you, locate the black plastic piece on the top right.
Remove the upper 4mm and lower 3mm screws with a PH00 screwdriver.

Schritt 5

Position the kickstand to an almost closed position. Carefully move the plastic block aside and pry the metal lock out with a metal spudger.
Be careful not to pull off the wires connecting the plastic block.
The lock may be difficult to remove so you may need to apply more pressure to release the lock.

Schritt 6

At the opposite end of the hinge, locate the silver metal bracket over the wires coming from the end of the hinge. Remove the two 3mm screws with a PH00 screwdriver. Lift the bracket off with your fingers.
Removing the bracket will expose two silver connectors at the ends of the wires coming from the end of the hinge. Use tweezers to carefully lift off the two silver connectors.
Locate the smaller metal wire bracket guiding the wires coming from the end of the hinge. Remove the single black 2mm screw with a PH00 screwdriver. Lift the bracket off with your fingers.

I can't get the 2 silver connectors off the board - how are they attached? They seem to move a little bit, but they seem to want a bit more force than I would like to use. Which direction should I pull/push?

patrick.magee - 06/11/18

Schritt 7

Begin removing the entire hinge assembly by lifting it out, starting at the end where the lock is located. Carefully feed the wires through the hinge mount with your fingers as you pull the hinge assembly free.

Schritt 8

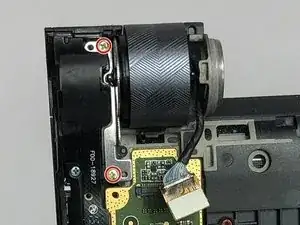

Locate the silver camera mounting bracket between the power button and the camera housing. Remove the two 3mm screws on the camera mounting bracket using a PH00 screwdriver.

Schritt 9

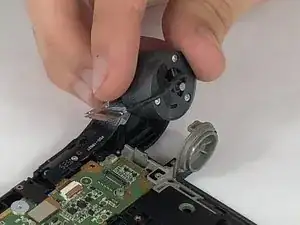

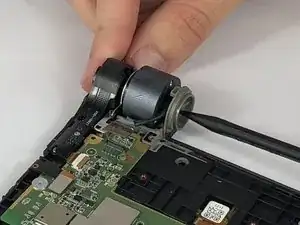

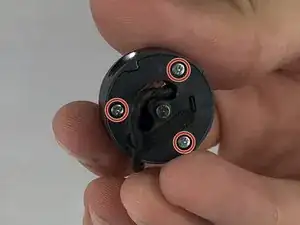

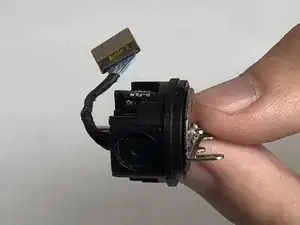

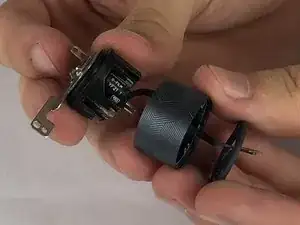

The camera housing is held in place by a pin in the center of the grey hinge mount. Push and hold in the pin with the pointy end of a spudger while you lift the camera assembly out.
