Einleitung

  1. nWX3CWZZ4DcdDUMW

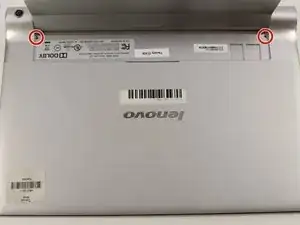

    • Remove the two Phillips #000 screws.

    • These screws are located behind the stand for the device.

    • Our device did not include these screws.

  2. BWShHZ3TZHOoR2VJ

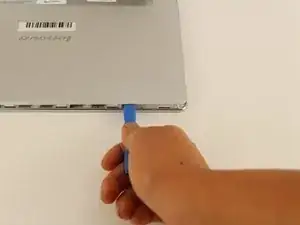

    • Use a plastic iFixit opening tool to pry the edges of the back case loose by placing it in between the edge of the cover and the screen.

    • Do not immediately attempt to remove the back of the case without attempting Step three, or you risk snapping the back cover.

  3. 3NcExvPo6rJS6JAW
    3NcExvPo6rJS6JAW
    SKtg3VLeuMKa2QIU

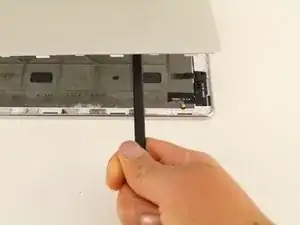

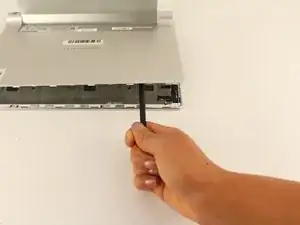

    • Use the spudger to reach into the center of the device and pry off the back case by giving it a light force upwards.

  4. MaJPE2CewyWppryT
    MaJPE2CewyWppryT
    vm6tAMuKXVlX1exH

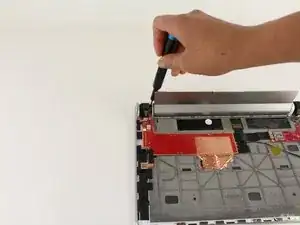

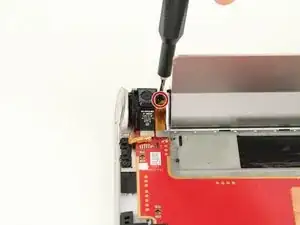

    • Remove one 5mm screw using the Phillips #00 Screwdriver.

  5. 4Pk1gyH2esExhHeA
    4Pk1gyH2esExhHeA
    IAYIGJjLy3qaTVWb
    1KQCiAV1T55ZjYd2

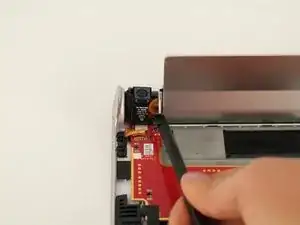

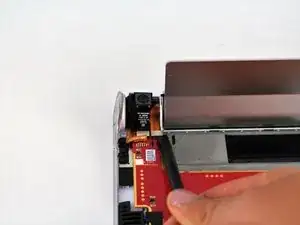

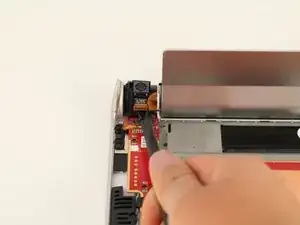

    • Use the spudger to disconnect the camera and battery from the printed circuit board by putting the spudger in between the connections and the printed circuit board and pushing the spudger up.

  6. 3DmD1L6oRZQWYOGZ

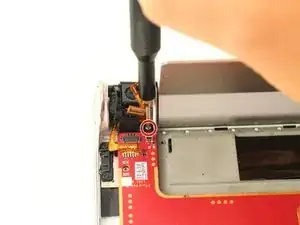

    • Remove one 5mm screw with the Phillips #00 screwdriver.

  7. vPR5o26NlhKBaNsN
    vPR5o26NlhKBaNsN
    CXiKOwgCHfQWD6u5
    AG2TTX2fn3PWiRJI

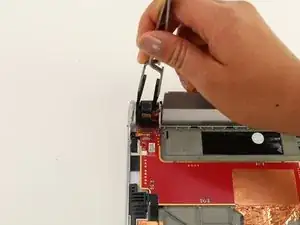

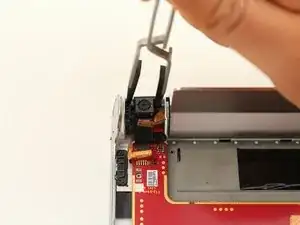

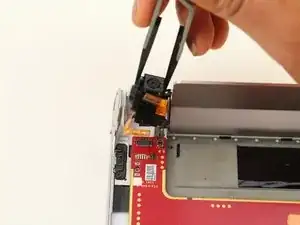

    • Use the nylon tip tweezers to push the camera out from between the power button and the kickstand.

    Be careful not to break the power buton flex cable. You can desolder it from the motherboard. If necesary

    Claudiu Nistor -

  8. IdW53cQyHcmaWHwa

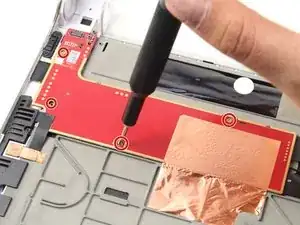

    • Remove the four 1 mm screws with a Phillips #00 Screwdriver.

  9. sWafSxMRLTcFQGja
    sWafSxMRLTcFQGja
    4vKxLpVGdeFM2AyV

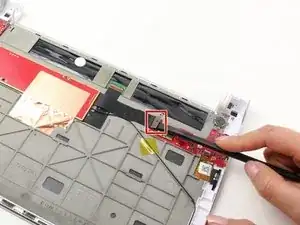

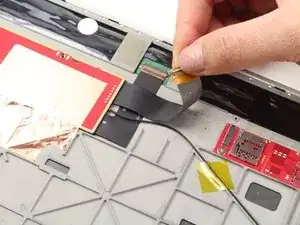

    • Use a spudger to disconnect the ribbon wire by applying a force upwards.

  10. AnsUFbKBOSsbwrMa
    AnsUFbKBOSsbwrMa
    XUFIu2KKmUX3G3An

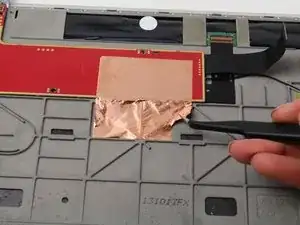

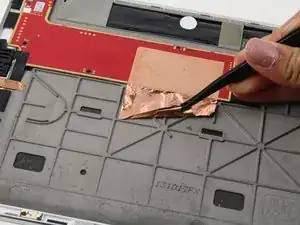

    • Use tweezers to lift up the foil.

    • The foil may tear.

  11. KEkFFCe3DWPPsNjN
    KEkFFCe3DWPPsNjN
    Ag4BSuujivLvQICV

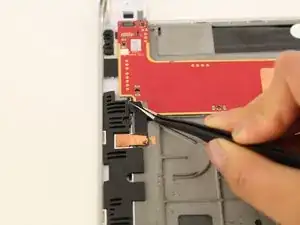

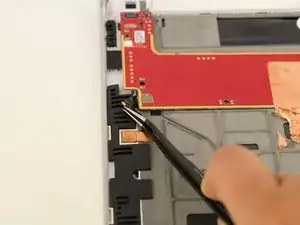

    • Use the tweezers to lift the black tape from the corner of the printed circuit board.

  12. KwGCT2HVxLSfyUJe
    KwGCT2HVxLSfyUJe
    jMrlbrnoXunq3XJp
    gsb36VikjCAvgTpq

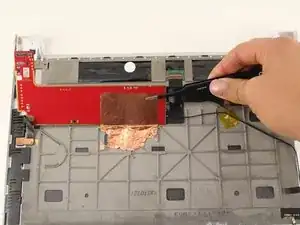

    • Flip the board 180 degrees towards you using the tweezers.

  13. 4LTqTyxiaedGsuD2
    4LTqTyxiaedGsuD2
    iXxHNI2rnA3A4nys

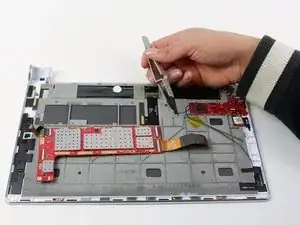

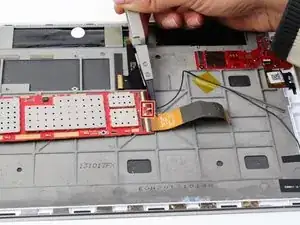

    • Remove the wire from the PCB by pulling it towards the edge of the headphone jack using tweezers.

  14. g6TVcyEAdM3VkWAn
    g6TVcyEAdM3VkWAn
    Smk6hpaAqqFGUFvI
    mmmOT3pbKdqIgSMu

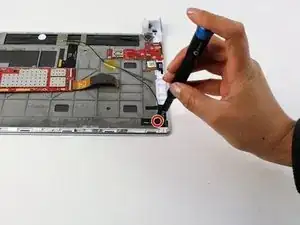

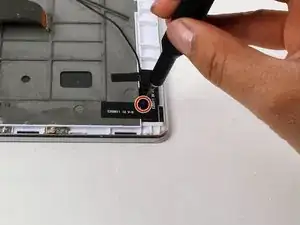

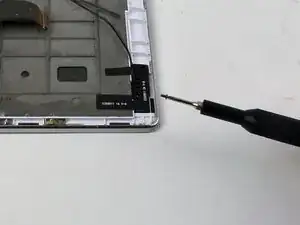

    • Remove the one 5mm screw using a Phillips #00 Screwdriver.

  15. Y3MvdAQLxWJBLBLH
    Y3MvdAQLxWJBLBLH
    qAVgFkYUR3BdSn6S
    SLKWsZAXC4xMXFvl

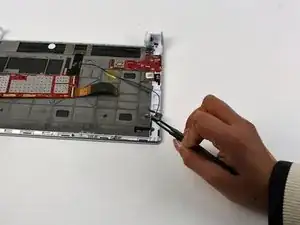

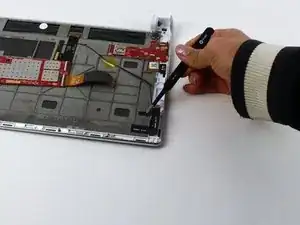

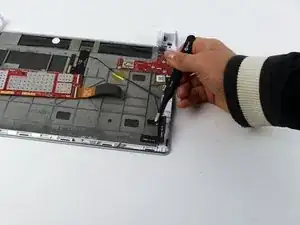

    • Using tweezers remove the tape to disconnect the module by pulling it upward.

  16. ovaB1O6QIZKd1hLP
    ovaB1O6QIZKd1hLP
    YbcCcXpxUYJbFs4A

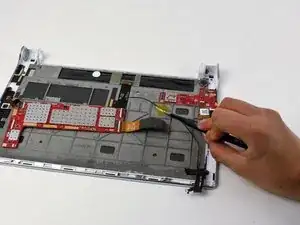

    • Remove the yellow piece of tape by pulling it upward using tweezers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
