Lenovo Yoga Tablet 2 830-F Antenna Replacement

Geschrieben von: Mario Gjyli
  • Kommentare: 0
Lenovo Yoga Tablet 2 830-F Antenna Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

  1. bqJ1M2Lq6H4FsZDS
    bqJ1M2Lq6H4FsZDS
    KaGbp2cWspsHTtjh

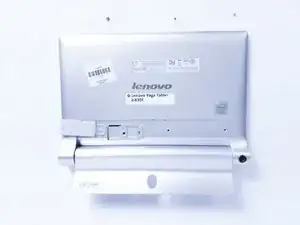

    • Remove the three screws on the back of the device with the Phillips Screwdriver #00 bit.

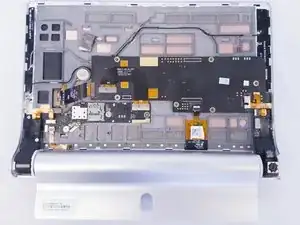

    • Using the blue opening tools or spudger, gently remove the back cover to expose the interior of the tablet.

  2. TO1SKEqsbmVqRirw
    TO1SKEqsbmVqRirw
    Z6DvAbUUgXhTepnt
    WM6vCSjV3AT4fsaS

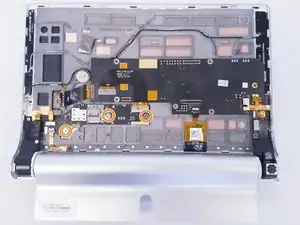

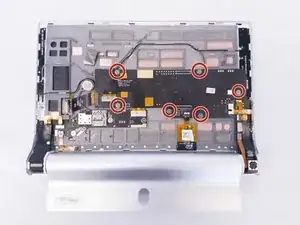

    • Remove the six screws on the back of the motherboard with the Phillips Screwdriver #00 bit.

    • Remove the three screws on the back of the secondary board with the Phillips Screwdriver #00 bit.

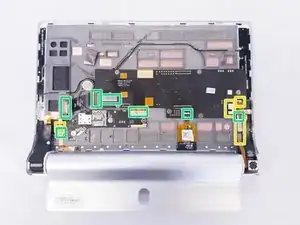

    • Remove the ribbon cables connecting the boards to the other electrical components.

    • Remove the ZIF connectors connecting the boards to the other electrical components.

    • Some of the ribbon cables are secured with clips, simply pry up the clips before sliding them out of the pin connectors.

  3. eRNBU2AQQyVEo6sB

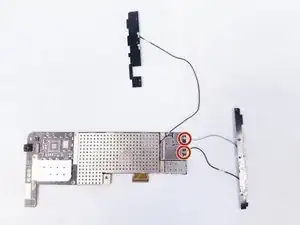

    • Disconnect the antenna module from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
