Lenovo Yoga Tablet 2 830-F Battery Replacement

Geschrieben von: Charles Rhode
  • Kommentare: 10
Lenovo Yoga Tablet 2 830-F Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

Before beginning, acquire a replacement battery from a retailer of your choice and begin with the device off and a clear, static-free workspace.

  1. ACoQ24beTCAF6eIj
    ACoQ24beTCAF6eIj
    WgtKlONsbRPVXbnD

    • Remove two 3mm screws on the back of the device with a Phillips #00 bit.

    • Remove the single 2mm screw with a Phillips #00 bit.

    • Using the blue opening tool or spudger, gently remove the back cover to expose the interior of the tablet.

  2. BMvi3oIFI6H4kghB
    BMvi3oIFI6H4kghB
    IKquoWqmiHQBkKpL
    BUOobpplrxuS1HAA

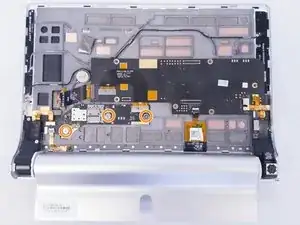

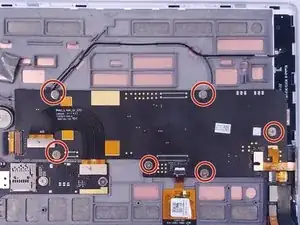

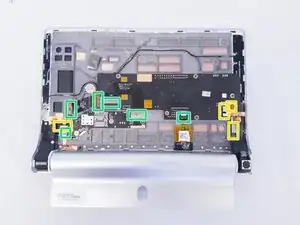

    • Remove the six 3mm screws on the back of the motherboard with the Phillips Screwdriver #00 bit.

    • Remove the three 3mm screws on the back of the secondary board with the Phillips Screwdriver #00 bit.

    • Remove the ribbon cables connecting the boards to the other electrical components

    • Remove the ZIF connectors connecting the boards to the other electrical components

    • Some of the ribbon cables are secured with clips, simply pry up the clips before sliding them out of the pin connectors.

    According to the Hardware Maintenance Manual published by Lenovo, this step is completely unnecessary. There is no need to remove the motherboard. It can be left in place. The only ZIFs that need to be unplugged are the ones for the battery pack and the right speaker.

    https://download.lenovo.com/consumer/mob...

    Bob Cox -

  3. cXZvHFUETwrOUXBd
    cXZvHFUETwrOUXBd
    ELjUt4DfiE1HMJaI
    uAUkmUb6FXi6QQyi

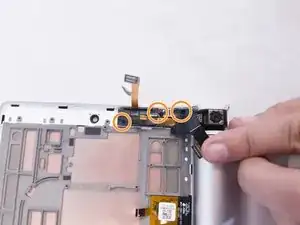

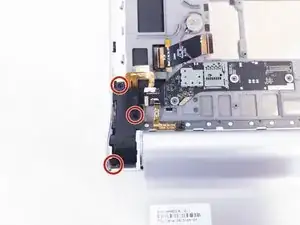

    • Remove the three 2mm screws on the back of the left speaker module with the Phillips Screwdriver #00 bit.

    • Remove the three 2mm screws on the back of the right speaker module with the Phillips Screwdriver #00 bit.

    • Gently remove both the left and right speaker modules.

    According to the Hardware Maintenance Manual published by Lenovo, only the right speaker module must be removed. The left speaker module can be left in place.

    Bob Cox -

  4. bNf5ZCouAEUpcYYG
    bNf5ZCouAEUpcYYG
    lZfDlleokcREKfNY

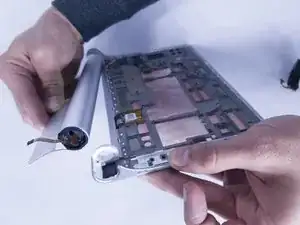

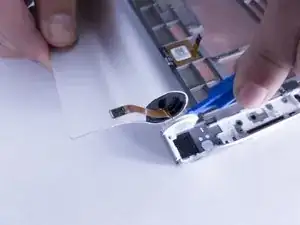

    • Using the blue opening tool or spudger, pry the battery compartment off of the high located on the right hand side of the back.

    • This may require a decent amount of force to accomplish. If you feel like the white plastic holder will break, try using the spudger at a different angle.

    • Do not attempt to use the spudger on the right hand side of the device. It must be done on the left side.

    it might help if the use of colloquial, nonsense English is avoided.

    It is so bad I am not able to follow the instructions!

    Do you actually speak English?

    kewisha -

    Don’t do that. Just flip this thing in the “closed” position and you can Pull the Metal Thing in Step 6 and get it from the other side way easier, so you don’t neet to bend anything…

    m4c1990 -

  5. IAWHWZj5bQfvjTHH
    IAWHWZj5bQfvjTHH
    mh4ZEDNaaqq1NSmq
    phxtvoD1eNa5Q2xm

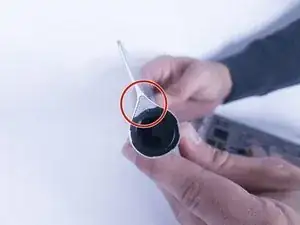

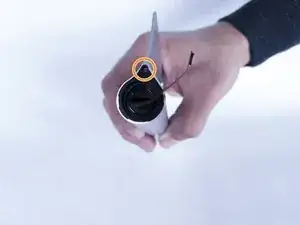

    • Remove this metallic sticker with your fingernail to expose the screw underneath.

    • Remove the 3mm screw under the sticker with the Phillips Screwdriver #00 bit.

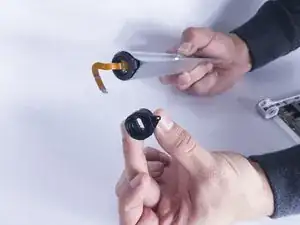

    • Using the tweezers, pull off the black clip that secures the battery compartment. This may require some force.

  6. X1LBhLdvwAsXjKRp
    X1LBhLdvwAsXjKRp
    aZXGayUTSBaYfFEQ
    1Wput6XE6aaHHHmt

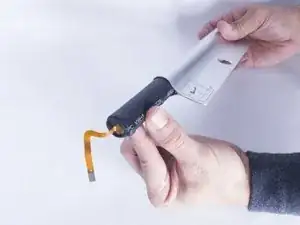

    • Remove the hinge clip from one side of the battery compartment. Use the spudger tool if necessary.

    • The battery should be able to slide from the compartment.

  7. VKbs3fmKQwIIXdrp
    VKbs3fmKQwIIXdrp
    oEdSKscI6vIvwy1l

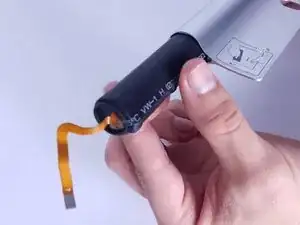

    • Replace the old battery with the new battery

    • Be careful not to damage the ribbon cable on the new battery when inserting it into the compartment and reassembling the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Charles Rhode

Mitglied seit: 28/09/17

567 Reputation

6 Kommentare

hi

where i can find batter, of battery cable

Humaid Al Siyabi -

Excuse me, where can i get the battery if it is not for sale?

Joe Harry -

Bought one off eBay: Replace Lenovo L14C3K31 L14D3K31 Battery For Yoga Tablet 2 1050F 1051F YT2-830

Rusty Travelboy Rob -

Are you effin kidding me? All of this just to replace a battery?

Sf Chick -

Sorry to tell you :

prying the battery compartment off with a spudger is the wrong disassembly move and you will very likely damage the fragile construction.

The correct way to go is to remove the speaker modules as shown and then pry / pull out the metal hinge clip on the headphone side. Once it´s out, the battery compartment can be swivelled out on that side with great ease. Assembly later works a treat. No damage done.

handyandy -

last comment ps. :

no need to disassemble completely with last described method !

simply remove the back cover and the headphone side speaker module, disconnect the battery ribbon on the camera side, remove / pry / pull out the metal hinge clip on the headphone side and you´re set for swapping the battery. If you´re used to soldering - simply buy two ICR18650 cells with a good amperage with u-soldering tags (can be cut with a good pair of scissors), confection to originals - and replace.
