Lenovo Yoga Tablet 2 830-F Camera Replacement

Geschrieben von: Mario Gjyli
  • Kommentare: 0
Lenovo Yoga Tablet 2 830-F Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

10 - 30 Minuten

Einleitung

  1. yxoSwEjukQHJtyrM
    yxoSwEjukQHJtyrM
    OUMkqggyiqayZIrk

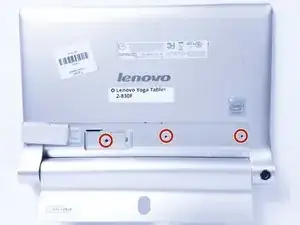

    • Remove the three screws on the back of the device with the Phillips Screwdriver #00 bit.

    • Using the blue opening tools or spudger, gently remove the back cover to expose the interior of the tablet.

  2. Jp42Xwfft63CNPyU
    Jp42Xwfft63CNPyU
    ELRrQNP3Fst3OSfo
    PrACaOgYstOyqghL

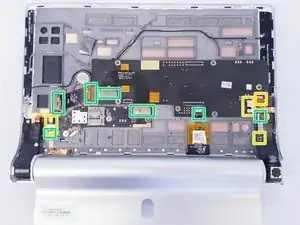

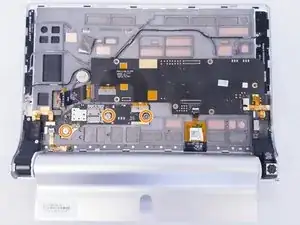

    • Using the Phillips Screwdriver #00 bit remove the 6 screws.

    • Using the Phillips Screwdriver #00 bit remove the 3 screws.

    • After removing all the screws, disconnect the ribbon cables.

    • Disconnect the ZIF connectors.

    • Some of the ribbon cables are secured with clips, simply pry up the clips before sliding them out of the pin connectors.

  3. MHPqNNOivnxOmUJq
    MHPqNNOivnxOmUJq
    OWQJUESOrkGek2Rj
    f5qqqBbilhLHOXEQ

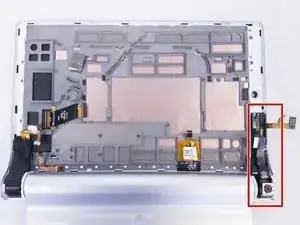

    • After removing the motherboard and antennas the camera module is located on the right as marked in red.

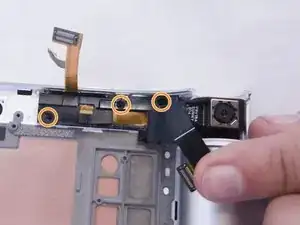

    • Remove the three 2mm screws holding the module in place with the Phillips Screwdriver #00 bit.

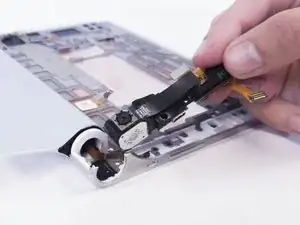

    • The camera module is also held in place with adhesive so gently remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
