Einleitung
This guide will explain how to remove the back panel on a Lenovo Z70-80 laptop.
Werkzeuge
-
-
Use your fingers two push both latches away from each other to release the battery.
-
Pull the battery out.
-
-
-

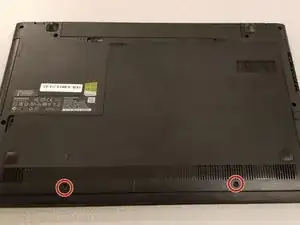

Remove the two Phillips #0 screws from the bottom panel.
-

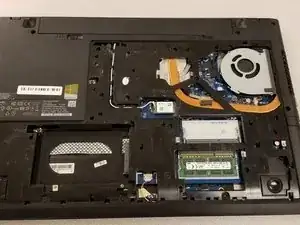

Slide the panel down slightly, and then lift to pull it off.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
