Lenovo Z70-80 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

3 Minuten

Einleitung

This guide will demonstrate how to replace the keyboard on your Lenovo Z70-80 laptop.

Werkzeuge

  1. uQ5oCYUnBslcb22E
    uQ5oCYUnBslcb22E
    Bea3JiYoesSEafvG

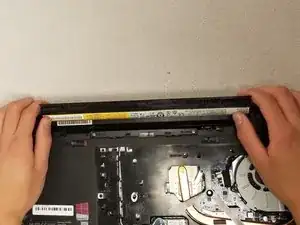

    • Use your fingers two push both latches away from each other to release the battery.

    • Pull the battery out.

  2. uHsOTukkqIiBunPa
    uHsOTukkqIiBunPa
    QsfYyRnGxAVhdS6c
    N5sqVHHmfLIi4mJS

    • Carefully pry up the keyboard with the flat end of a spudger and remove all of the 3mm Phillips #0 screws.

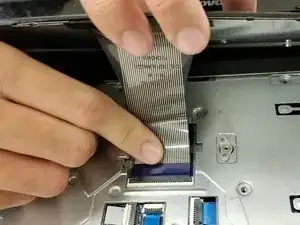

    • Use a spudger to flip up the retaining flap on the keyboard ribbon cable ZIF socket.

    • Pull the keyboard cable out of the socket.

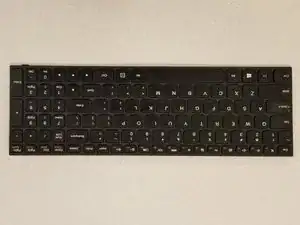

    • Remove the keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
