Lew's Mach Crush Speed Spool Disassembly

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

20 - 50 Minuten

Einleitung

Guide for disassembly to allow for repair, greasing, and cleaning of parts of baitcaster.

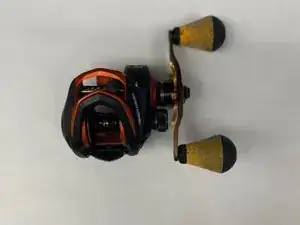

    • Refer to the featured document for specific part names and exploded view. Determine whether you have the right-handed or left-handed reel.

  2. OPEVZA4GgOLDodyJ
    OPEVZA4GgOLDodyJ
    eYECM16bpDt1cJGP

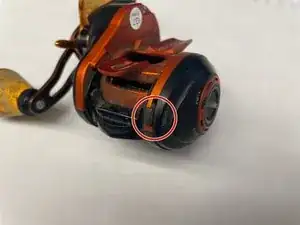

    • Slide switch to 'open' on left side of reel to remove left cover.

  3. XrKiyHx2oUTixXTN

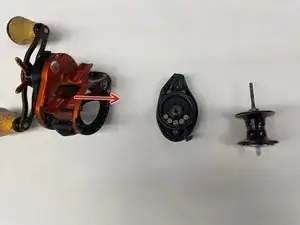

    • Remove the palm-side cover, then spool assembly from center frame of reel.

  4. pZaUmLAAIVQFUoWp

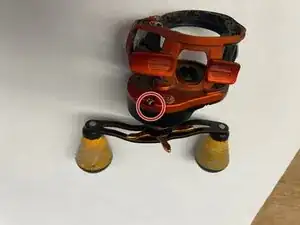

    • Remove lube-port screw using small Phillips screwdriver.

  5. gYf6nRYIlc4cqJJs

    • Remove cover off of lube-port.

  6. pBiBOaS6gRWVr3HN

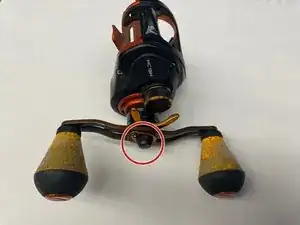

    • Remove screw and handle nut from reel.

  7. YAQmAByMGVNEYa2f

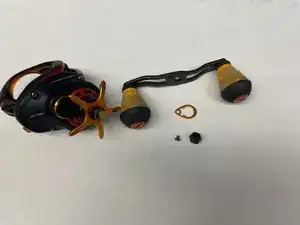

    • Remove handle and handle nut retainer.

  8. FpF4lYFMJBOJneZl

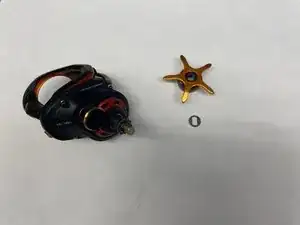

    • Unscrew star-drag until it is loose, remove it and the handle washer from the shaft.

    • Note: You may have to hold the reels gears in place in order to unscrew the drag, as it will try to spin the gears.

  9. OydKYWZJXbFsEfKI

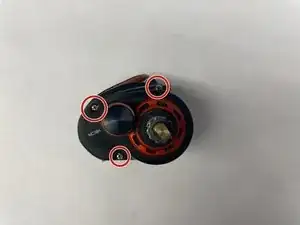

    • Remove three spool cover screws from reel.

  10. HTgsXMGeJUkHDnfx

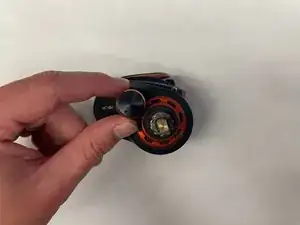

    • Remove cast control cap.

  11. JfnHAQBZqnr4NMAG

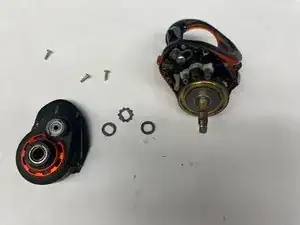

    • Pry 2 drag spring washers, and 1 click holder washer off to finish removing side cover.

  12. bG5okFp6ZvEATtTx

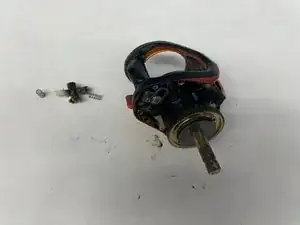

    • Remove the pinion yoke and 2 pinion yoke springs

  13. y11qcQ2buvAlrFBW

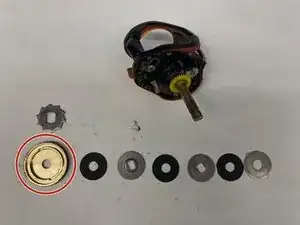

    • Remove drive gear and accompanying drag and ratchet washers.

  14. pBf41QaeO4Kob5yQ

    • Apply oil to main gear if desired.

  15. 1Dprl32dxKJPkRNg

    • At this point, you have disassembled the reel enough to where you can clean parts, remove dust and debris , or replace individual parts

Abschluss

To reassemble your device, follow these instructions in reverse order.
