Lezyne Micro Drive Battery Replacement

Geschrieben von: graham
  • Kommentare: 35
Lezyne Micro Drive Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

Here is how to get access to the battery in the Lezyne Micro drive using a vice and ratchet sockets (no special tools).

I found that my brilliant new light that I bought from the UK did not charge, so rather then paying the ridiculous amounts of postage to claim warranty, I thought I would try to fix it myself.

  1. lnJDQX1adgBwoXmq

    • Mount the light in between a 11mm socket and 22 socket like so in a vice.

  2. RRPrEWXyUJBrJtEF

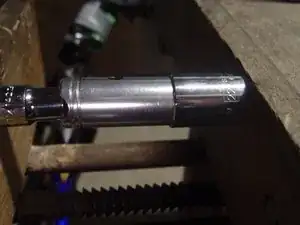

    • Slowly clamp, the clear light cover will push in. There is quite a lot of resistance.

  3. 52dFSnNfCHOZJELG

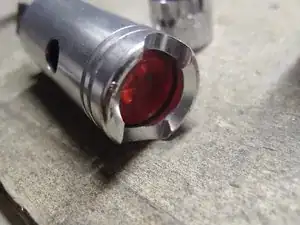

    • Keep on going until the resistance fades. The light cover will be depressed as shown. and the electronics will just fall out.

  4. L1aeF3biFRrBaPKP
    L1aeF3biFRrBaPKP
    HHDxvNUUTs1KXsII
    U6kQNeBH1x5hXnQy

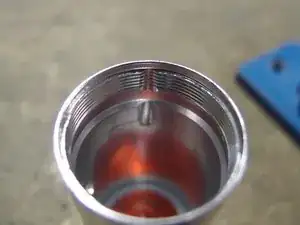

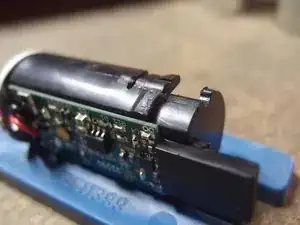

    • You can see where the electronics slides into.

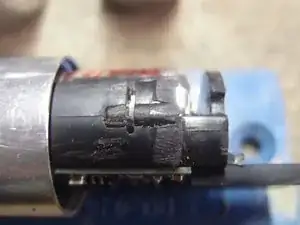

    • You can see how it is held in with friction from the raised plastic bevel. If you wish to make it easier to disassemble, file the friction bevel down. Don't file down the keying semi circular bevel.

    • The last picture shows the plastic filed down.

    Many thanks, replaced the battery in 5 mins.

    I advise removing the rubber button before re-assembly, It’s easy to put in afterwards.

    Your picture seem to show it absent anyway.

    Tony -

    I think the gunge around the main LED board is heat-transfer compound. I would recommend cleaning off the old stuff and replacing if you have some. On the same note, it would be wise not to run the light on full ( at least for the front lamp I have ) for too long without the case to avoid the LED overheating.

    mikejwatts -

    Excellent FixIt guide!! Mine’s working again now.

    Simon -

    Useful but, it would be great to know spec of battery, how to source etc.

    Andrew Mitchell -

    Thanks for this. I thought it was great of you to do this as I love that light myself and Lezyne no longer make the light, gutted!! However, you call this "Lezyne Micro Drive Battery Replacement" and then don't even show how you replace the battery??🤔 What battery size, what voltage and the rest of the jazz, funk and refusion!!

    powernab

    powernab -

Abschluss

To reassemble your device, just put it back together.

Tinte & Feder

graham

Mitglied seit: 21/08/13

350 Reputation

30 Kommentare

Thanks just repaired my Lezyne Macro Drive front light. Light would flicker, just needed to re-solder the top left resistor shown in step 4.

richard taylor -

Thanks to your instruction I was able to fix my lezyne micro drive which had denied to work after short-circuiting the charging leads by accident. Just cut the battery and reconnected it - light was working again! Worked out nicely!

Thanks!

mongo -

Is it a 123 cell it takes? I will do this when I visit my father as he has a large vice. Thanks for the guide!

Aerotec -

Yes a "CR-123" cell 3V lithium ion

graham -

you can just push the electronics and battery out with your thumb. Usually the issue with these batteries is the battery contact gets slightly corroded. Clean it with battery cleaner, and twist the battery a bit for a new and clean connection.

scotdferguson -

Thanks for this!

I found that my battery was not charging correctly, flashing green for 3mins and then going solid, but only taking 0.6V charge, not the normal 3V+.

The solution was to remove battery and charge it independently with a more powerful charger. Once replaced, all is well, it charges perfectly now.

P Fonk -

Thanks for the helpful how to. Did you have to remove the rubber button before pushing out the electronics?

Ta

Niu07 -

A correctly assembled unit will NOT have its internal parts removeable by thumb pressure, unless youre Marius Pujanowski.

It relies on the grip for its seal. The socket thing is the way to go as the large socket is there to accept the tray as it is being pushed out. Do it in your hand and you risk snapping the USB donglerooney.

John Robertson -

Brilliant! Took me all of 15 minutes to push the cartridge out and replace the battery with a fresh Sanyo 18650 . My light has only been lasting about 2 hours on the lowest flash setting and hardly any time on full beam.

kevinross -

Ps, mine is a Macro drive, bigger battery but same process to push the cartridge out with a pair of sockets

kevinross -

When stripped down there is a small wavey washer... can anyone confirm where this goes? Is it between the led and the lense?

Neil -

the washer should be placed between the LED and the battery cartridge. there are three little plastic pegs on top of the battery cartridge. place it inside of them. I guess its purpose is to push the LED against the lens.

Rupert Angermeier -

Thanks Rupert... I came to the same conclusion in the end and my lights are running again with new batteries.

Neil -

I have the macro drive front light. It flashes green when charging but before long goes constant green. when I switch it on it lasts about 30 seconds before turning off. There is no red low battery warning. I can turn it straight back on and again it lasts for 30 seconds only. has anyone got any ideas please?

David

David Tyson -

Hi David, I'm having the exact same issue. Have you found any resolutions?

James Purslow -

I had the same issue. My light went dimm after a few seconds and switched off completely after some more seconds. I found out, that the part U1 was loose. It is located next to the LED at the very front and I assume it’s a temperature sensor. It’s probably used for overheating checks and without the sensor working, the light switches off for security reasons. I was able to fix it by resoldering the three legs of part U1.

Adrian Kamer -

Hey, thanks! Simple but effective. My macro drive started to flicker and switching off unintentionally. I thougt it was a loose contact somewhere but couldn’t find any bad soldering on the electronics. After pulling out the battery I saw that one of the battery contacts was a little corroded. I cleaned the part with contact spray and a brass brush. Now it works like new!

Luk -

Presumably you remove the black plastic end of the light before trying this? How does the 22mm socket hold the light while still allowing the electronics to be pushed outwards without crushing them?

Phil W -

My macro shows fully charge but soon as I turn it on it switches off after a flash….. any idea why?..

Magoo -

Battery buggered and needing replacing?

Trev Holloway -

I don’t have a vice, so I used a silicone gun, the top off of my herb grinder (plugs the end of the gun perfectly) and 2 sockets (22mm & 12mm), I only had to squeeze once and the light came apart. Nice guide, useful, thank you.

Quanchy Plimp -

Thanks for this, I was going to send my macrodrive off for repair but thanks to your instructions, I was able to change the battery in a few minutes, much cheaper and easier, especially as the light is a few years old now

Rob Lockyer -

Hi, managed to get the unit out and battery of my lezyne microdrive thanks to your help and I’ve contacted upgrade bikes to get a replacement however it will be a four week wait and £11 each! Does anyone know which is the best alternative, finding exactly the same battery is proving impossible! The battery is the LIR123A 3.6b 600mah - 2 amp protected.

cheers, tom

tom shepherd -

I have this issue, as an earlier poster states;

I have the macro drive rear light. It flashes green when charging but before long goes constant green. when I switch it on it lasts about 30 seconds before turning off. There is no red low battery warning. I can turn it straight back on and again it lasts for 30 seconds only. has anyone got any ideas please?

I have swapped out the battery from the front light to eliminate the battery as the root cause but still does same thing, are the electronics damaged?

Gthecommuter -

I managed to do the same with a Macro Duo, without a vice using a small-ish socket, a big freewheel/centrelock brake socket, and some gentle hammering on a hard surface. Thanks! Replacement batteries with a higher capacity also available on eBay for peanuts.

Thom Chesshyre -

I’ve just managed to pop mine out with my thumb.

I pushed it in quite firmly first, then applied pressure to the lens and out it popped.

I fear that the microswitch has gone on mine, I can set it off using the end of a biro, but the rubber button won’t apply sufficient pressure in the right place to turn the light on/off… brilliant lights, had it for about 5 years.

Although thinking back I did get it repaired once before (for free by Lezyne, after I got biblically drenched) so perhaps the bevelled plastic was smoothed a little during that removal?

Excellent tutorial nonetheless!

jimpoolio -

Re: My earlier comment about broken / damaged microswitch.

A trimmed biro end-cap, inserted onto the underside of the rubber allows the required pressure to be applied, a bit Heath Robinson, but it works!!

jimpoolio -

Note the later Hecto drive lights look similar but the lens won’t allow you to push the internals out the same way as the micro drive. I was able to extract the internals but levering them out with a small spoon inserted between the battery & rear wall of internals. They run the same 123A battery as micro.

Al. -

Does it take 3V or 3.7V battery? I found several different CR123A’s and im not sure which one to buy.

Anton Demkin -

My friend asked me to repair his micro drive. Upon disassembly, the SMD 4x4 button was missing and there 2 mysterious pairs of pads as well on top and below of the pads for the button. There are text beside these pairs of pads, namely DG & DR. Do you have any idea what components are missing? Thank you and keep safe!

Wotta -
