LifeTrak Zone C410 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

This guide will show you the steps to replace the battery of the LifeTrak C410. Replacement battery can be found here.

  1. cIHkdNNU6vRpnA1C
    cIHkdNNU6vRpnA1C
    BwTLRQG5dGAys4Nl
    KOoO1qrySIDHHvRE

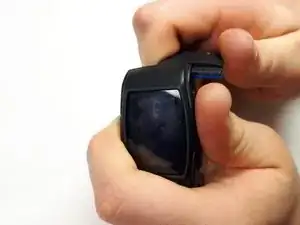

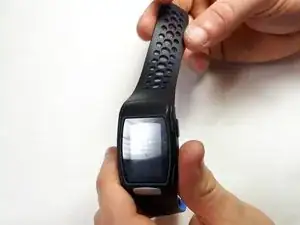

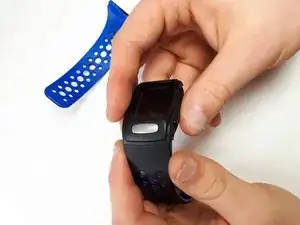

    • Grasp the body of the watch between your thumb and your index finger.

    • Slide the band through its clasp.

  2. KUExVWE1RFNt52dD
    KUExVWE1RFNt52dD
    dDKgOwbhjIIsGpms
    GAgPEb5xvvEfEgS6

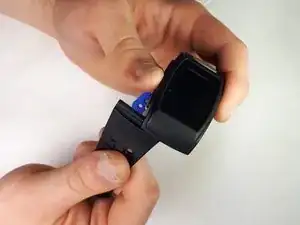

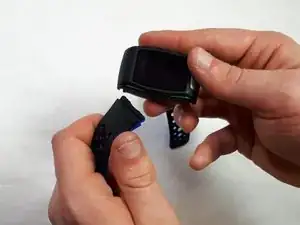

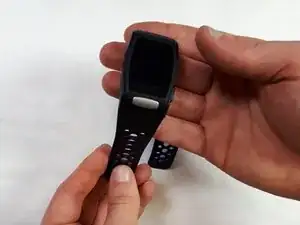

    • Repeat step 1 for the next band.

  3. VVcZasSJxwBCfUqI
    VVcZasSJxwBCfUqI
    out3XJ6SRiVCmwTU
    tkDRqwWNDGitZHNe

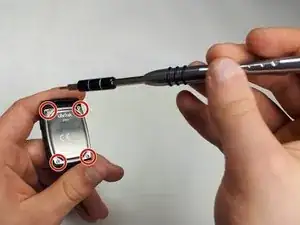

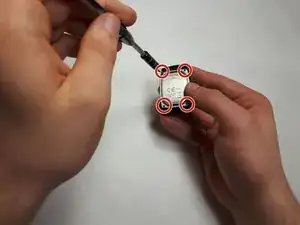

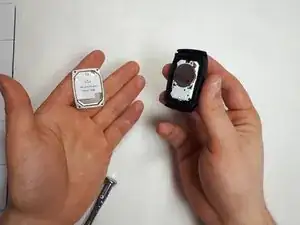

    • Remove the four 5.24 mm screws using a Phillips #0 screwdriver.

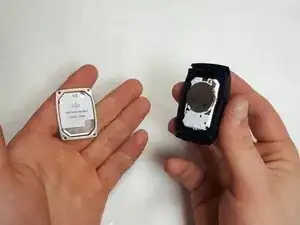

    • Remove the back panel.

  4. cKKGtIVx3VWj3A2f
    cKKGtIVx3VWj3A2f
    hZYQncAqfMdO5qiv
    4vJIdTGcjdk1qobq

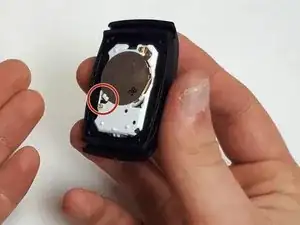

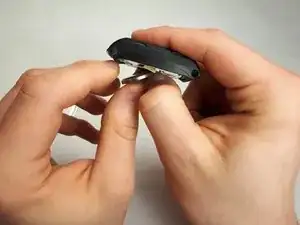

    • Pull on the white tab to release the battery.

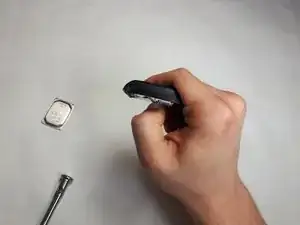

    • While holding the watch upside down, pull the battery out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
