Linear Rail V2/V3 Endstop Install

M3 Sliding T-Nut

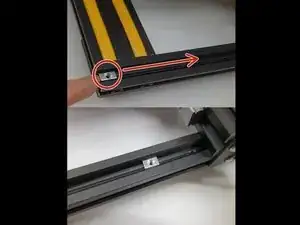

Slide in the M3 T-Nut toward the middle of the printer

M3X12 BHCS & M3 FLAT WASHERS

M3x10 FHCS

Adjustable Endstop Mount A

Adjustable Endstop Mount B

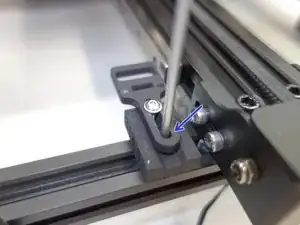

Tighten the M3 screw into the T-Nut

Adjust endstop mount until it is square with the Linear rail

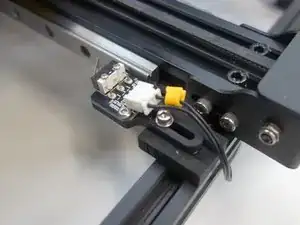

Remove stock endstop board form Creality mount and Reuse the stock screws to mount the endstop as shown

Use M3x12 BHCS to adjust the endstop position, so the nozzle tip is even with the front edge of the bed when the end stop is triggered

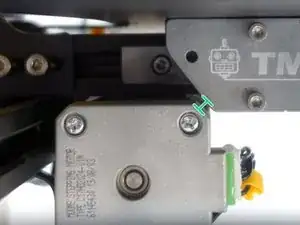

Check the clearance between the motor and the linear adaptor. When the bed is all the way back against the endstop. There should be a 1-2 mm gap when the endstop is triggered.
