Linsay Model F-7HD2CORE Battery Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

15 - 30 Minuten

Einleitung

After determining that your battery is permanently damaged or broken, you can replace it with a new one.

  1. eTkwLfSYAiKPJCew
    eTkwLfSYAiKPJCew
    MLoqvPGXomkuOTNZ
    caYlYE14XSRbxLuf

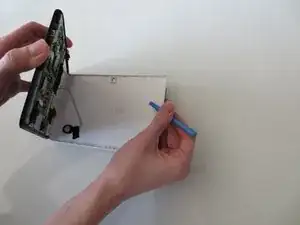

    • Carefully insert your plastic opening tool in between the white and black sections of your device.

    • Gently pry the top screen portion from the base of the tablet.

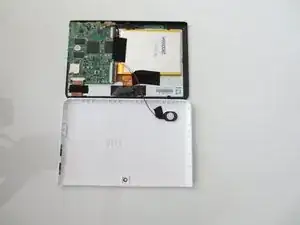

    • Your tablet should now look like the third image.

  2. dQDq2AsixjmA56Zp
    dQDq2AsixjmA56Zp
    NIWYxepTOWmnb5S1

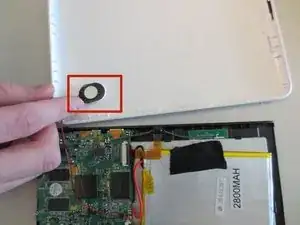

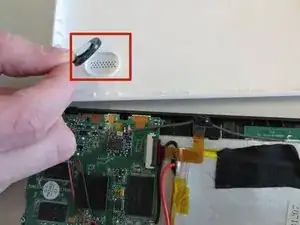

    • To completely remove the base from the top of the tablet, peel the microphone from the back.

  3. sXFHWwv64cMKO1p6
    sXFHWwv64cMKO1p6
    2mfKknCKITRvRTLj

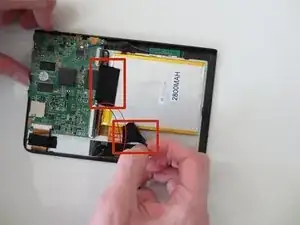

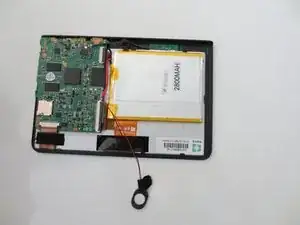

    • Remove the two pieces of tape holding the battery in place by gently peeling it off.

  4. BRD2vSI5ZtFPZKEP

    • Using the spudger, carefully peel the battery off of the tablet panel.

    • Tape of the back of the battery will be very strong, pull gently!

    • The metal exterior of the battery can be quite pliable. Use caution when removing the battery from the tablet.

  5. cuyRqxLQnSLLZESi

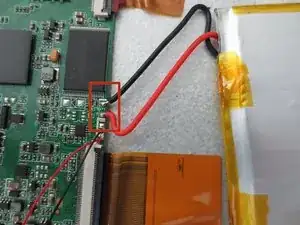

    • To remove the battery, completely desolder the wires connected to the circuit board.

    • To reattach the new battery, you must solder the wires back on.

Abschluss

To reassemble your device, follow these instructions in reverse order.
