Little Beaver Augers MDL5HD 2017 Clutch Assembly Replacement

Geschrieben von: Adam O'Camb
  • Kommentare: 0
Little Beaver Augers MDL5HD 2017 Clutch Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 20 Minuten

Einleitung

Use this guide to replace the clutch assembly in a Little Beaver Augers MDL5HD 2017.

The auger bit is removed in this guide. While not necessary, removing it will make the repair easier.

  1. KOJsTbo5eCCV1AME
    KOJsTbo5eCCV1AME
    nQTxRydaJQ2sFXKC

    • Before you begin, make sure the engine is switched off and cool to the touch.

    • Pull the spark plug connector straight off of the spark plug.

  2. ucYIJklTQLNDkFKT

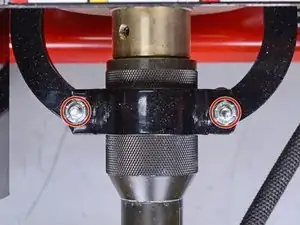

    • Use a 5/16 inch socket to remove the two nuts securing the clutch bracket clamp.

    • You may need another 5/16 inch wrench to hold the bolt from underneath while you loosen the nut.

  3. wilHY4t1X2aTEFPj

    • Remove the clutch bracket clamp.

  4. txQbI4OnLwvNsEEE

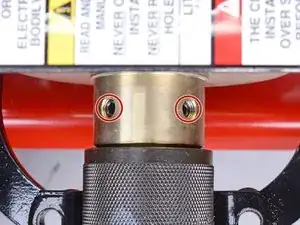

    • Use a 5/32 inch hex wrench to loosen the two set screws on the clutch drum.

  5. 2252qcjakDEXv6Lq
    2252qcjakDEXv6Lq
    IWG35kxiNmry6XSh

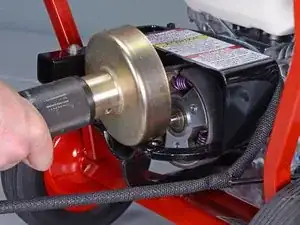

    • Slide the clutch drum straight off of the clutch rotor assembly.

  6. KchfbRM2JhVpwkkF
    KchfbRM2JhVpwkkF
    Tw3YBFBIB1HgS5XR
    D6WrX6K3doNoHR5f

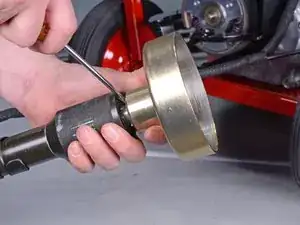

    • Use a flathead screwdriver or small pry bar to pry the clutch drum off of the flexible shaft.

    • Slide the clutch drum off of the flexible shaft and remove it.

    • During reassembly, apply anti-seize lubricant to the interface between the clutch drum and flexible shaft.

    • The clutch drum can be replaced as part of the clutch assembly replacement.

    • The replacement clutch drum should come with a new pilot bearing installed. If it doesn't, you may need to install a new pilot bearing.

  7. YsGaiWLnu2CLXKKu
    YsGaiWLnu2CLXKKu
    bZnfDwpeHDQDx2ju

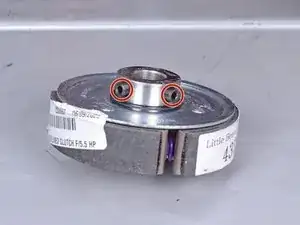

    • Use a long-handle 5/32 inch hex wrench to loosen the two set screws on the clutch rotor assembly.

    • The first photo shows the set screws on the replacement part for reference. Loosen the screws on the installed part, not the replacement part.

    • The screws are positioned behind the clutch rotor and won't be easy to access. Use a long-handle hex wrench as shown in the second photo.

  8. OQjn4ZFEcBYYWJIJ
    OQjn4ZFEcBYYWJIJ
    hRntxWq6TLSWY5ER

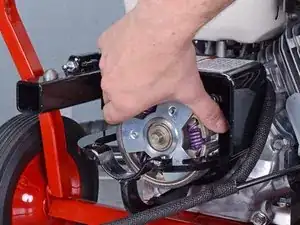

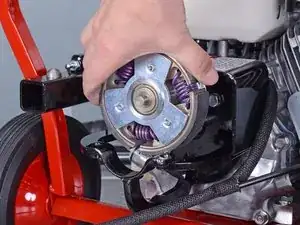

    • Slide the clutch rotor assembly off of the engine drive shaft.

    • The clutch rotor assembly can be replaced as part of the clutch assembly replacement.

    • During reassembly, make sure the clutch rotor assembly key is inserted correctly into its slot before reassembly.

    • During reassembly, apply anti-seize lubricant to the interface between the clutch rotor and engine drive shaft.

Abschluss

To reassemble your device, follow these instructions in reverse order.
