Use this guide to replace the throttle lever and cable in a Little Beaver Augers MDL5HD 2017.

The auger bit is removed in this guide. While not necessary, removing it will make the repair easier.

  1. KOJsTbo5eCCV1AME
    KOJsTbo5eCCV1AME
    nQTxRydaJQ2sFXKC
    • Before you begin, make sure the engine is switched off and cool to the touch.

    • Pull the spark plug connector straight off of the spark plug.

  2. e5KpBHodCR36gfWw

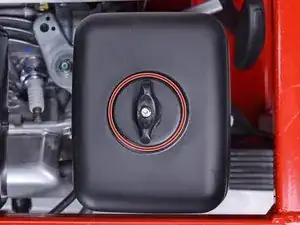

    • Unscrew the bolt securing the air filter cover

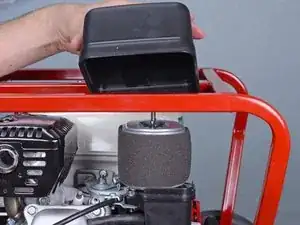

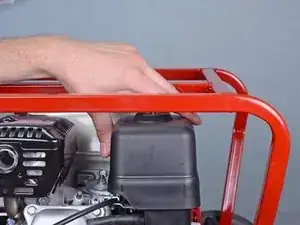

  3. kjBjnNfMGqvEgxYW
    kjBjnNfMGqvEgxYW
    Px4cu5DAXjVEgD6n
    WMn4NnAuWw2qVOIg
    • Rotate the air filter cover 90° and lift it straight up to remove it.

  4. kJEDggdpVCpsWDim

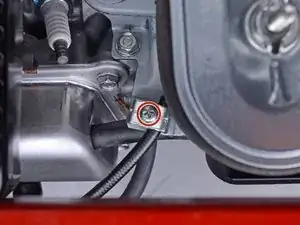

    • Use a Phillips #2 screwdriver to loosen the screw securing the throttle cable clamp.

  5. bIVwuZmdskAQ2blk
    bIVwuZmdskAQ2blk
    6RZRBfBbh2DDg4wx

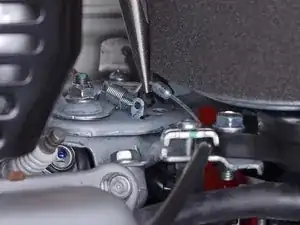

    • Use a pair of needle nose pliers to lift the throttle cable out of its slot on the throttle body.

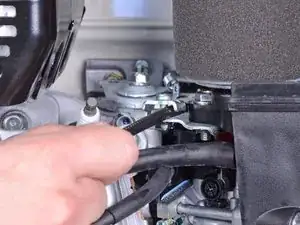

  6. kXOBdEjoxk6AI6Yj
    kXOBdEjoxk6AI6Yj
    RgkQhXZIrm1O3pWy
    • Slide the throttle cable out of its clamp.

  7. KcP3WLiBRKLLGvZe
    KcP3WLiBRKLLGvZe
    QwiVuJqST2y1tXLr
    • Use a pair of flush cutters to cut through the zip tie securing the throttle cable to the auger and remove it.

    • Repeat this step for all seven zip ties along the throttle cable.

  8. BG6pmkVgGKUggphd
    • Use a flathead screwdriver to loosen the throttle cable end clamp.

  9. mZQSJl1PWqGqrGLI
    mZQSJl1PWqGqrGLI
    GupumDfMM4vD2QOO
    • Remove the end of throttle cable from the clamp.

  10. BjiiLnOYjvmVuhys

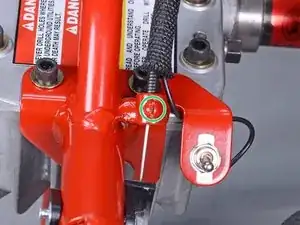

    • Loosen the red screw clamping the throttle cable in the holder on the handle.

  11. LTiIJMW4QuRUAa4W

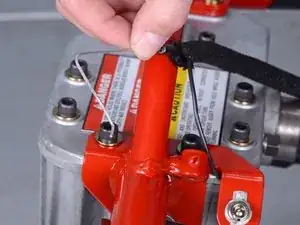

    • Remove the throttle cable from its holder on the handle.

  12. XjmwcnpXVWKB6JF6
    XjmwcnpXVWKB6JF6
    SbVEUJiYGwE2YGmd
    • Slide the throttle cable out of the braided wiring sleeve.

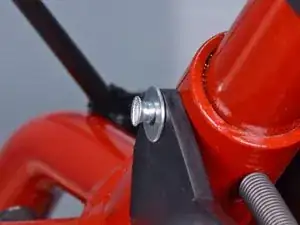

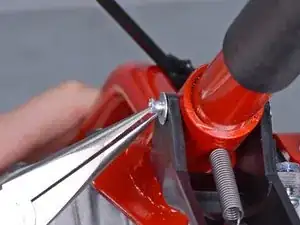

  13. yBMpn3oTtQGoYaML
    yBMpn3oTtQGoYaML
    aVCNNTun5VMwdLqo
    t2JFpOMSJeaMP1oQ

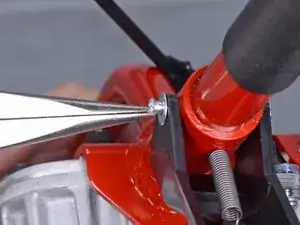

    • The throttle lever is held in place by a flared rivet. You will need to replace this rivet with a new one, and re-flare it, during reassembly.

    • Use needle nose pliers to bend the flared end of the rivet inward to straighten it.

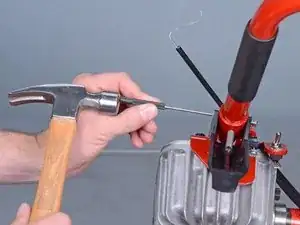

  14. OmHRcNdiriSSCEGx
    • Use a pin punch and a hammer to tap the rivet out of the handle.

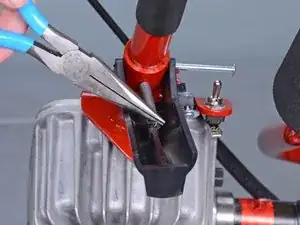

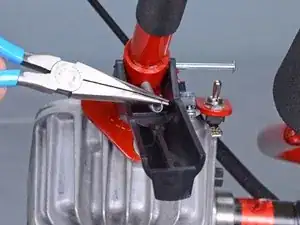

  15. pqqUBpu6gEr4Sk5e
    pqqUBpu6gEr4Sk5e
    K1yYbGpgIHD5Z3Zb
    • Use needle nose pliers to unhook the throttle lever spring from the throttle lever.

  16. Fif1V3HJIZICeYiC
    Fif1V3HJIZICeYiC
    otv5r6I13ANjGwYv

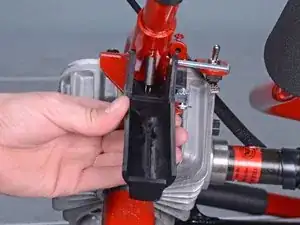

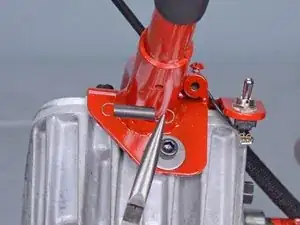

    • Remove the throttle lever.

    • Remove the throttle lever spring.

Abschluss

To reassemble your device, follow these instructions in reverse order.
