This is a prerequisite-only guide! This guide is part of another procedure and isn't meant to be used alone.
-
-
Power off your MacBook Air and unplug all cables.
-
Close the display and flip the laptop upside down. Keep the lid closed until you've physically disconnected the battery.
-
-
-
Use a P5 Pentalobe driver to remove the four 6.4 mm screws securing the lower case:
-
Two screws with a short threaded portion near the hinges
-
Two screws with a long threaded portion near the front of the MacBook
-
-
-
Apply a suction handle to the center of the lower case's front edge.
-
Pull up on the suction handle with strong, steady force to create a small gap between the lower case and the frame.
-
Insert an opening pick into the gap.
-
-
-
Slide the opening pick around the bottom right corner and three quarters of the way up the right edge to release the second clip.
-
-
-
Insert the opening pick in the original gap created in the middle of the front edge.
-
Slide the opening pick to the bottom left corner to release the third clip.
-
-
-
Slide the opening pick around the bottom left corner and three quarters of the way up the left edge to release the fourth clip.
-
-
-
Firmly pull the lower case away from the hinges one corner at a time to separate the four locking tabs.
-
-
-
Remove the lower case.
-
Set it in place and align the sliding tabs near the display hinge. Press down and slide the cover toward the hinge. It should stop sliding as the tabs engage.
-
When the sliding tabs are fully engaged and the lower case looks correctly aligned, press down firmly to engage the hidden clips underneath. You should hear and feel four distinct clicks as they snap back into place.
-
-
-

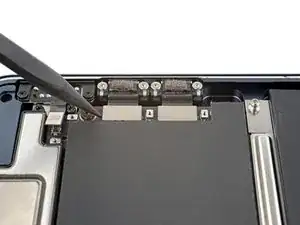

Use a T3 Torx driver to remove the two 1.5 mm screws securing the battery connector cover.
-
-
-
Use a spudger or your fingers to move the trackpad cable cover out of the way so you can access the press connector underneath.
-
-
-

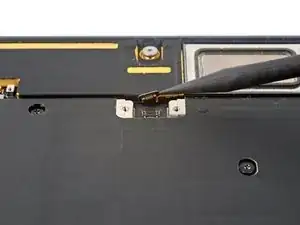

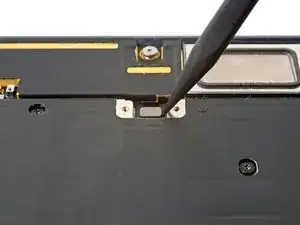

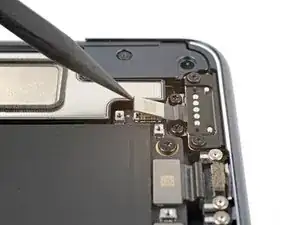

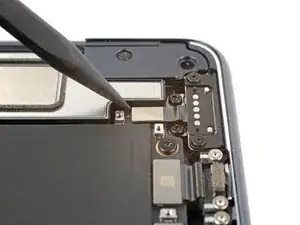

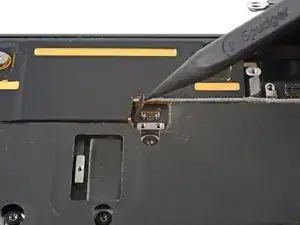

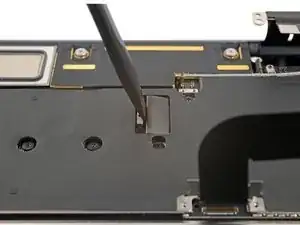

Use the pointed end of a spudger to pry up and disconnect the trackpad cable press connector.
-
-
-

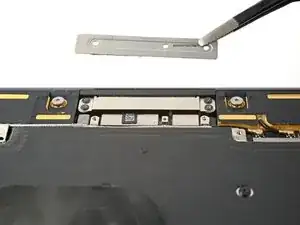

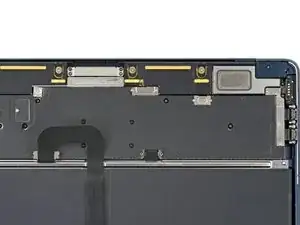

Peel up and remove the foam pad from the lower display cable cover to reveal a hidden screw.
-
-
-

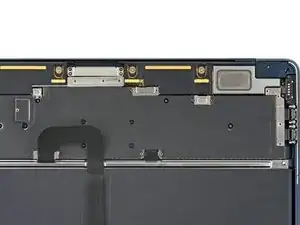

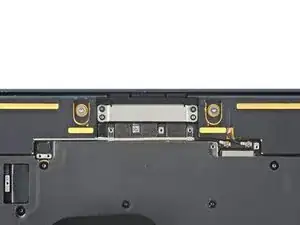

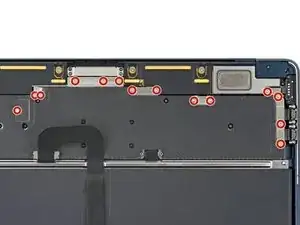

Use a T3 Torx driver to remove the fourteen 1.5 mm screws securing the various cable covers.
-
-
-

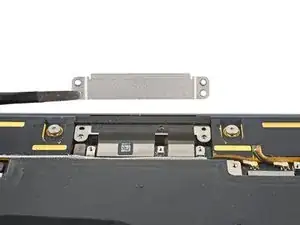

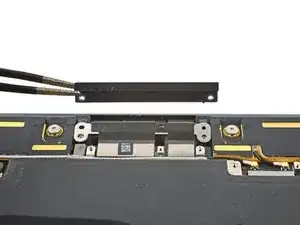

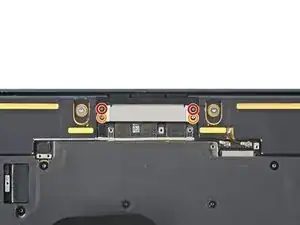

Remove the four screws securing the upper display cable cover:
-
Two 2.5 mm P2 Pentalobe screws
-
Two 2.5 mm T3 Torx screws
-
-
-

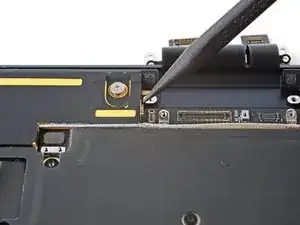

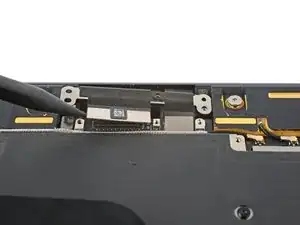

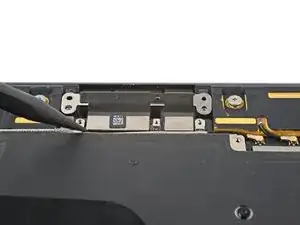

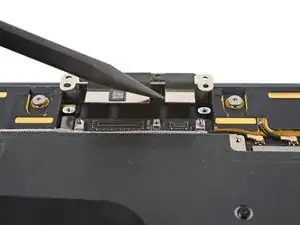

Use the pointed end of a spudger to pry up and disconnect both display cable press connectors.
-
-
-

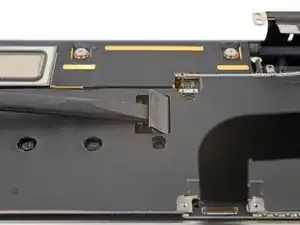

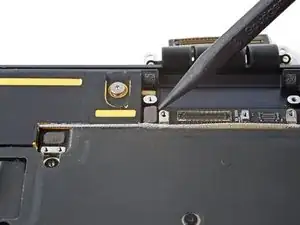

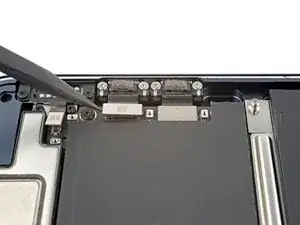

Insert the flat end of a spudger between the the interconnect cable and the screw post.
-

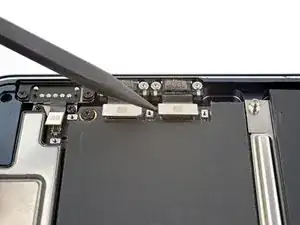

Pry up and disconnect the interconnect cable.
-
-
-

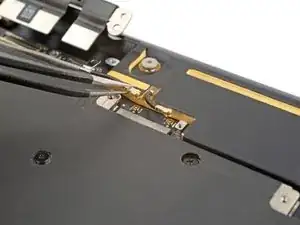

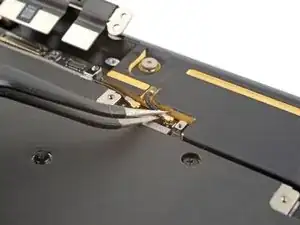

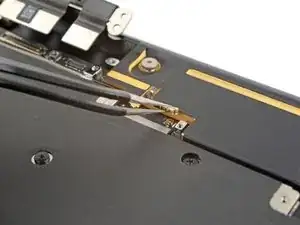

Use a pair of tweezers to grip the first antenna connector, as close to its base as possible.
-
Lift straight up to disconnect the cable.
-
Repeat for the second antenna cable.
-
-
-

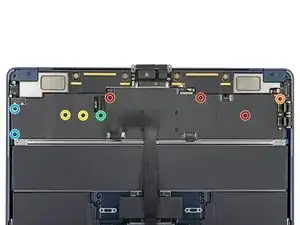

Remove the nine screws securing the logic board:
-
Three 3.8 mm T5 Torx screws
-
One 3.6 mm T5 Torx screw
-
Two 3.4 mm T5 Torx screws
-
One 3.1 mm T5 Torx screw
-
Two 2.7 mm T3 Torx screws
-
-
-

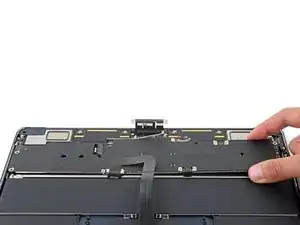

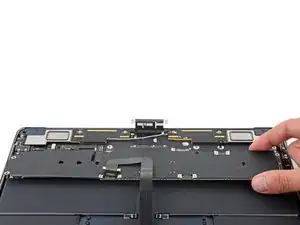

Grip the right side of the logic board and slide it towards the trackpad until it clears the overhangs near the speakers.
-

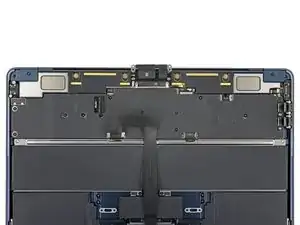

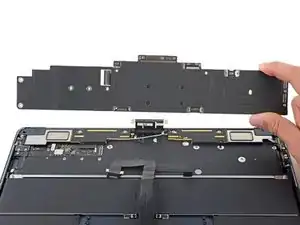

Remove the logic board.
-
-
-

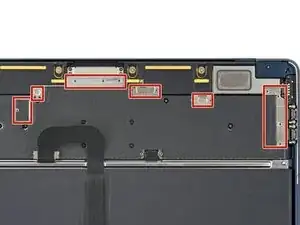

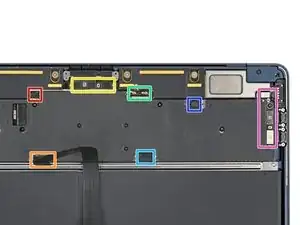

Right speaker cable
-
Trackpad cable
-
Display cable
-
Antenna cables
-
Battery cable
-
Left speaker cable
-
USB-C and MagSafe cables
-
To reassemble your device, follow these instructions in reverse order.
