Logitech Extreme 3D Pro Base Button Circuit Board Replacement

Geschrieben von: Emanuel Canela
  • Kommentare: 5
Logitech Extreme 3D Pro Base Button Circuit Board Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 - 10 Minuten

Einleitung

If one of the six buttons on the base of joystick no longer works, it may be necessary to replace the circuit board.

  1. ifhZCZwXn2SySdkS

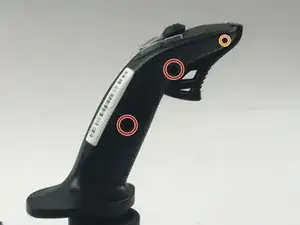

    • Remove these three Phillips #1 screws:

    • Two 10mm screws.

    • One 7mm screw.

  2. 66wFFnSOg3jfoFnD

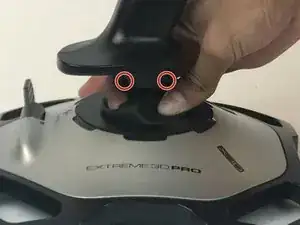

    • Using your fingers, lower the rubber boot to reveal two screws underneath the joystick.

    • Remove the two 10mm Phillips #1 screws.

  3. Lqxji5uwBiv2KAyJ
    Lqxji5uwBiv2KAyJ
    HRc6nwCxcxt1XuFb

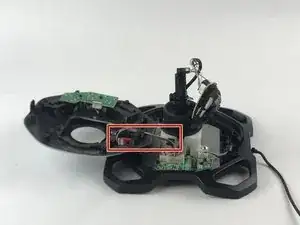

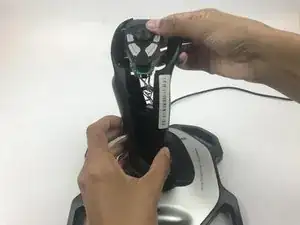

    • Pull apart the joystick chassis by hand.

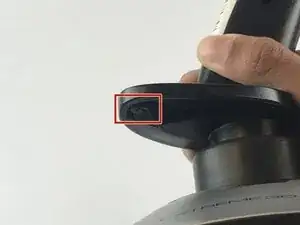

    • Release this clip located underneath the hand rest

    • The circuit board will be loose and may fall down.

  4. 3TX5NMxtv1mXtc1a

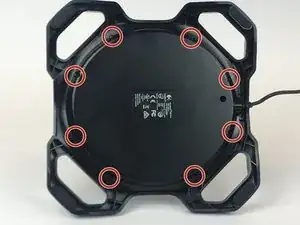

    • Remove the eight 10mm Phillips #1 screws from the bottom.

    There is a 9th screw that you need to remove near the cable

    gigakoulis -

  5. IuYBpuAJkpaRhtrT
    IuYBpuAJkpaRhtrT
    6ueJblDYFbyUAEfQ
    UpvWZhpoN2N552Qh

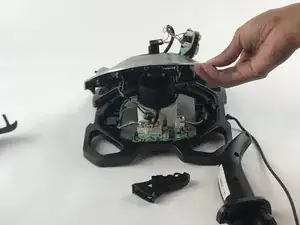

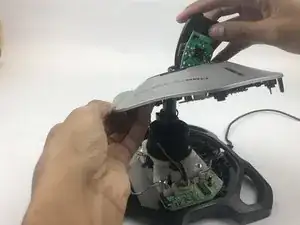

    • Flip the joystick upright.

    • Lift up the sliver base cover and feed the loose circuit board through.

    • Careful with the wires still attached to the silver base cover from the bottom of the joystick.

  6. TSNVqKeuvwTvWQZr
    TSNVqKeuvwTvWQZr
    mYgXVFNhBemOM46V

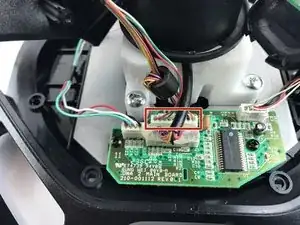

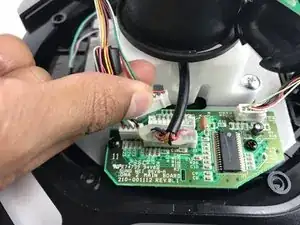

    • Remove this wire plug head from this circuit board.

    • Removing this wire frees the base piece to make working on it easier.

  7. Hdg4MWoHOrJgUU3U

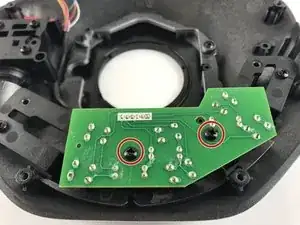

    • Remove the two 10mm Phillips #1 screws from the button board.

  8. qw3GUPhIeruZFMRx
    qw3GUPhIeruZFMRx
    LHp4PQ2mIvmXTnJ2

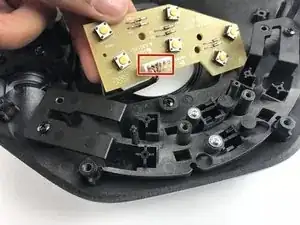

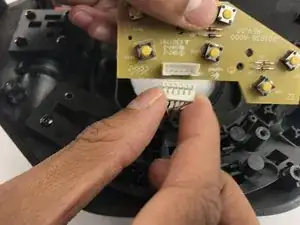

    • Lift up the button board.

    • Disconnect the button board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
