Logitech Extreme 3D Pro USB Cable Replacement

Geschrieben von: Emanuel Canela
  • Kommentare: 7
Logitech Extreme 3D Pro USB Cable Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 - 15 Minuten

Einleitung

After extended use, the USB cable may have become frayed or broken completely. This will require you to change the cable to continue using the joystick.

  1. ifhZCZwXn2SySdkS

    • Remove these three Phillips #1 screws:

    • Two 10mm screws.

    • One 7mm screw.

  2. 66wFFnSOg3jfoFnD

    • Using your fingers, lower the rubber boot to reveal two screws underneath the joystick.

    • Remove the two 10mm Phillips #1 screws.

  3. Lqxji5uwBiv2KAyJ
    Lqxji5uwBiv2KAyJ
    HRc6nwCxcxt1XuFb

    • Pull apart the joystick chassis by hand.

    • Release this clip located underneath the hand rest

    • The circuit board will be loose and may fall down.

  4. 3TX5NMxtv1mXtc1a

    • Remove the eight 10mm Phillips #1 screws from the bottom.

    There is a 9th screw that you need to remove near the cable

    gigakoulis -

  5. IuYBpuAJkpaRhtrT
    IuYBpuAJkpaRhtrT
    6ueJblDYFbyUAEfQ
    UpvWZhpoN2N552Qh

    • Flip the joystick upright.

    • Lift up the sliver base cover and feed the loose circuit board through.

    • Careful with the wires still attached to the silver base cover from the bottom of the joystick.

  6. j6uGSHGAGhMBmYAJ
    j6uGSHGAGhMBmYAJ
    bk5F6PY6MSlEVcFC

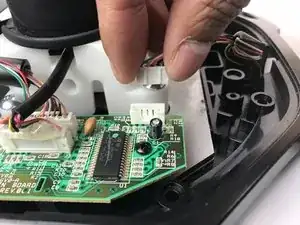

    • Carefully pull from the plug head straight up.

    • It may require some force to remove the cable. However be careful not to damage the wires.

Abschluss

To reassemble your device, follow these instructions in reverse order.
