Logitech Harmony 1100 Logic Board Replacement

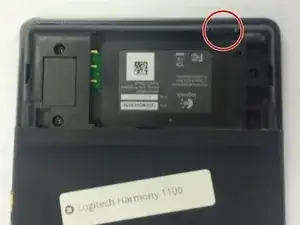

Remove battery cover, pushing down on circled areas and pushing outward

Remove battery by lifting up on corner exposed by indent in case

Use a J0 screwdriver head

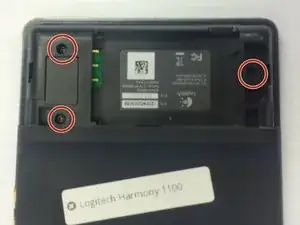

Remove 3 screws from battery compartment

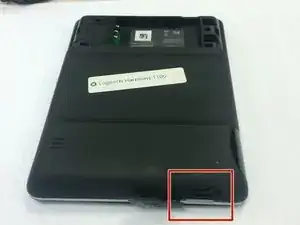

Open connector port on side

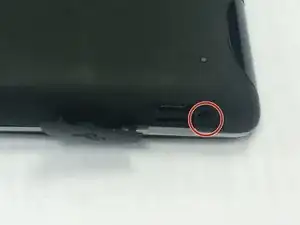

Remove screw with PH00 screwdriver head

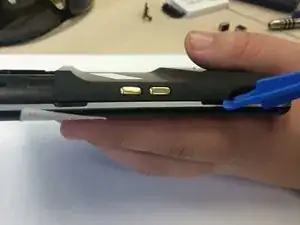

Use plastic opening tool to pry at the open slits on the side.

Pop out plastic screen backing on front of device.

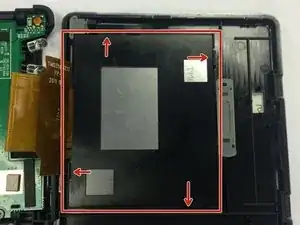

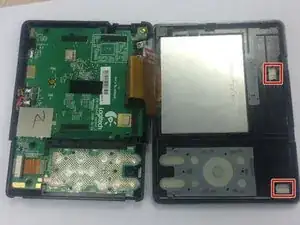

Loosen screen backing by pushing back on plastic clips that are holding the black screen backing in place.

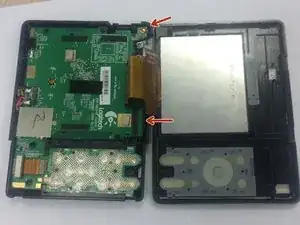

Use PH00 Phillips head from the iFixit Tool Kit to remove 3 screws from the circuit on the back half of the device.

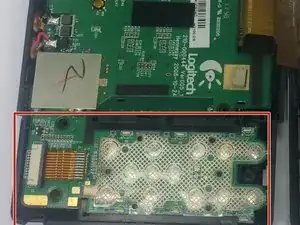

Flip over the larger circuit board to the left.

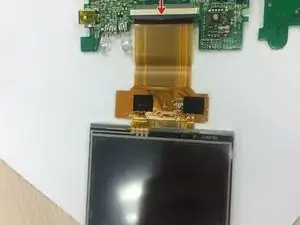

Find the wire that attaches to the screen

Push dark grey bar that is used to lock the screen in place, outward from beige bar to disconnect.

Remove screen wire

Push grey bar away from the beige bar

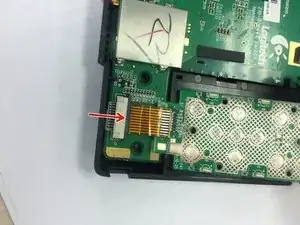

Remove button tab wire from logic board

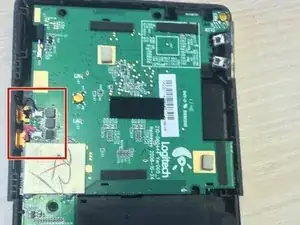

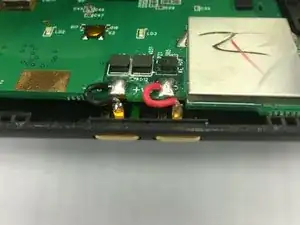

Lift on back of gold tab to unsecure positive and negative wires from device

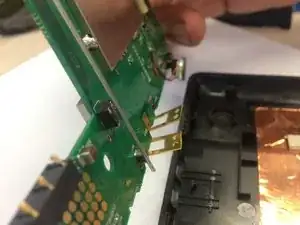

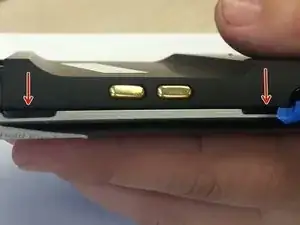

Pull the gold buttons in towards the center of the device to detach logic board from case
