Logitech Harmony 950 Battery Replacement

Geschrieben von: Blake Sanborn
  • Kommentare: 1
Logitech Harmony 950 Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

If the battery to the remote is not working properly, follow this guide to replace it.

  1. g5rMpp3DNYwoLE5Z
    g5rMpp3DNYwoLE5Z
    Q3h2JciWDBpl3ale

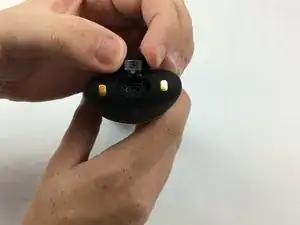

    • Make sure the remote control is powered off before starting.

    • Use the Opening Tool to open the port cover at the bottom of the remote control.

    • Bend the cover back to gain easy access to the screws.

  2. hSbdJAyVGFFLAUby
    hSbdJAyVGFFLAUby
    ZsCqQB1C2YfYLpSj
    RSSDGHUDlnIEQlsE

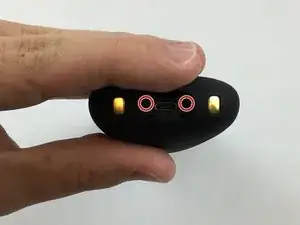

    • Use the Phillips #0 Screwdriver to remove the (2) two 6mm screws.

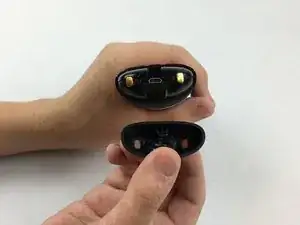

    • Pull the bottom cover off of the remote control.

  3. S1GW5RZSBvejdaNQ
    S1GW5RZSBvejdaNQ
    C5TFEMLAPxyqlXVo
    THEUfdZWljQTXFSC

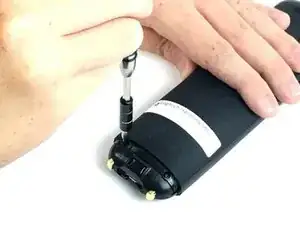

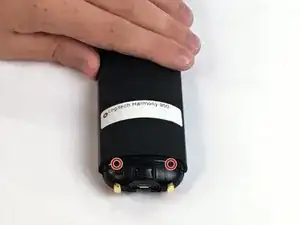

    • Use the Phillips #1 Screwdriver to remove the (2) two 6mm screws.

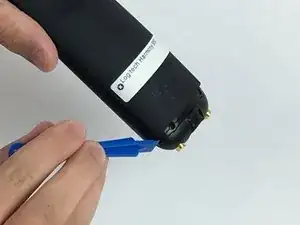

    • There should be a gap on each side to fit the Opening Tool. Use the Opening Tool to open the back cover (Soft Touch cover) using the gap.

  4. wRAYOGbaQAYKVw4e
    wRAYOGbaQAYKVw4e
    6iKpuT6cQCgC2HnD
    LxxxEGLAfhGSVDLt

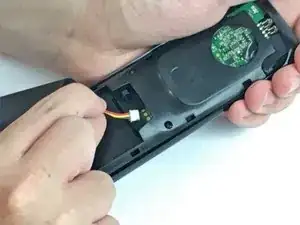

    • Use the Opening Tool to lift the battery out of the case.

    • Gently pull the cable out of the socket to unplug the battery.

    • Be careful not to damage any part of the remote when pulling the cable out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
