Logitech Harmony 950 Case Replacement

Geschrieben von: Shiba Kandel
  • Kommentare: 3
Logitech Harmony 950 Case Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

20 Minuten

Einleitung

This guide will involve using basic tools to replace the case of the Logitech Harmony 950.

  1. g5rMpp3DNYwoLE5Z
    g5rMpp3DNYwoLE5Z
    Q3h2JciWDBpl3ale

    • Make sure the remote control is powered off before starting.

    • Use the Opening Tool to open the port cover at the bottom of the remote control.

    • Bend the cover back to gain easy access to the screws.

  2. hSbdJAyVGFFLAUby
    hSbdJAyVGFFLAUby
    ZsCqQB1C2YfYLpSj
    RSSDGHUDlnIEQlsE

    • Use the Phillips #0 Screwdriver to remove the (2) two 6mm screws.

    • Pull the bottom cover off of the remote control.

  3. S1GW5RZSBvejdaNQ
    S1GW5RZSBvejdaNQ
    C5TFEMLAPxyqlXVo
    THEUfdZWljQTXFSC

    • Use the Phillips #1 Screwdriver to remove the (2) two 6mm screws.

    • There should be a gap on each side to fit the Opening Tool. Use the Opening Tool to open the back cover (Soft Touch cover) using the gap.

  4. wRAYOGbaQAYKVw4e
    wRAYOGbaQAYKVw4e
    6iKpuT6cQCgC2HnD
    LxxxEGLAfhGSVDLt

    • Use the Opening Tool to lift the battery out of the case.

    • Gently pull the cable out of the socket to unplug the battery.

    • Be careful not to damage any part of the remote when pulling the cable out.

  5. YOUPiquNyHjK1tfF
    YOUPiquNyHjK1tfF
    RnV5OCe1LPKCgoPq
    v4lNXKIYBIU1KBch

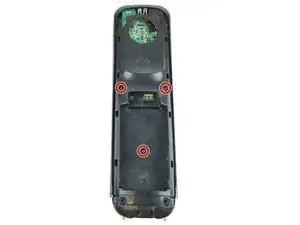

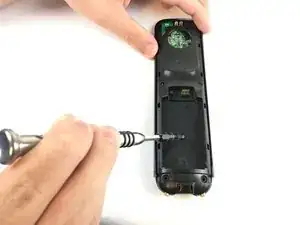

    • Use the Phillips #1 screwdriver to remove the (3) three 6mm screws.

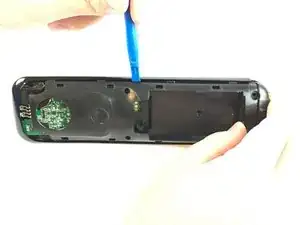

    • Push the opening tool into the gap along the side of the remote, then slide it across until you hear clicking sounds.

    • You need to repeat this process for both sides of the remote.

  6. YeGFpobwYDHBEBUQ
    YeGFpobwYDHBEBUQ
    6FBN2UjDGkBOSvaZ
    maAwXXeMwJoqZkW2

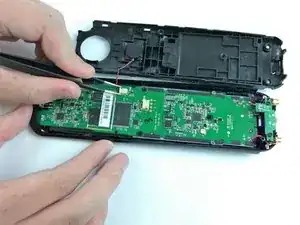

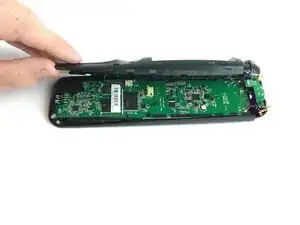

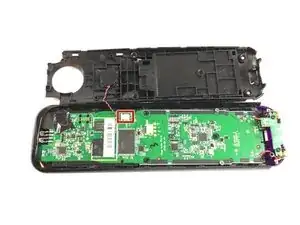

    • Carefully remove the back cover and place it next to the remote. Be careful not to detach the wire during this process.

    • Use the Angled Tweezers to carefully pull the white cable end off of the remote and disconnect it.

  7. MTHerSSIbZaVIbXG
    MTHerSSIbZaVIbXG
    Z6wAMckSHm1JRmug
    BEsDuEYwmxrhpFQZ

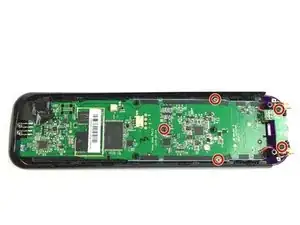

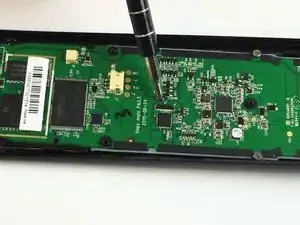

    • Use the Phillips #0 screwdriver to remove the (5) five 6mm screws. Keep in mind that once the screws are off, the circuit board will be completely separate from the case.

    • Be careful not to damage or disconnect the pink wires when removing the gold charging conductors from the case.

  8. LXsre4TkDppgyGkL
    LXsre4TkDppgyGkL
    CbhfVaVpgWOpcAfy
    UZV5wACUAjOQSR6I

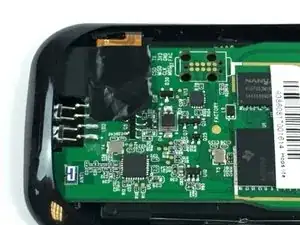

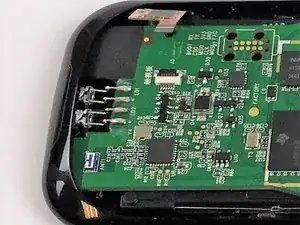

    • Remove the black tape to fully access the cable underneath.

    • This cable has a locking mechanism. Use the Angled Tweezers to lift the black part (lock).

    • Slide the yellow cable to disconnect it from the circuit board.

  9. JYkuDuZHQfGVSdjo
    JYkuDuZHQfGVSdjo
    Q2ll4UXrPkVxJnLN

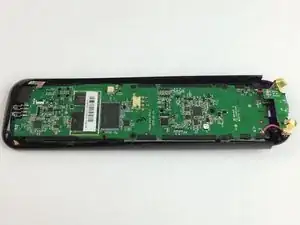

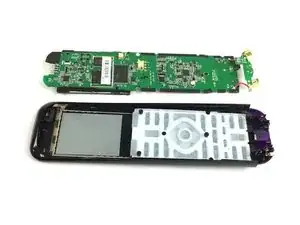

    • Pull the circuit board off of the case. Start from the bottom, and lift up to completely detach it from the cover.

  10. iWStn2DZKfmZZD1C
    iWStn2DZKfmZZD1C
    XGYJBgTKItMI4Uvg
    HrLrDskQbiiosWwE

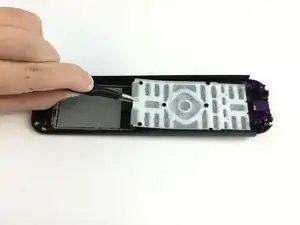

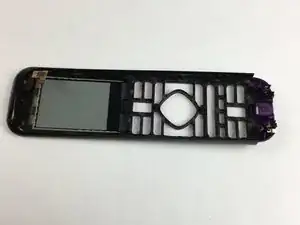

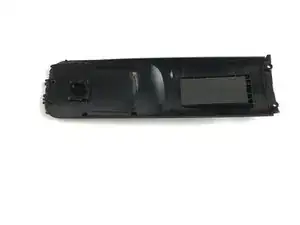

    • Use the Blunt Tweezers to carefully remove the keypad from the cover of the remote.

Abschluss

To reassemble your device, follow these instructions in reverse order.
