Logitech Harmony 950 Motherboard Replacement

Geschrieben von: Blake Sanborn

Kommentare: 4

Logitech Harmony 950 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 Minuten

Einleitung

Werkzeuge

Schritt 1

Make sure the remote control is powered off before starting.
Use the Opening Tool to open the port cover at the bottom of the remote control.
Bend the cover back to gain easy access to the screws.

Schritt 2

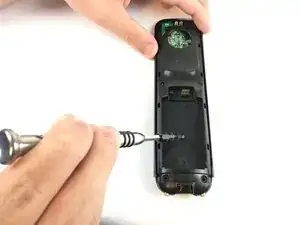

Use the Phillips #0 Screwdriver to remove the (2) two 6mm screws.
Pull the bottom cover off of the remote control.

Schritt 3

Use the Phillips #1 Screwdriver to remove the (2) two 6mm screws.
There should be a gap on each side to fit the Opening Tool. Use the Opening Tool to open the back cover (Soft Touch cover) using the gap.

Schritt 4

Use the Opening Tool to lift the battery out of the case.
Gently pull the cable out of the socket to unplug the battery.
Be careful not to damage any part of the remote when pulling the cable out.

Schritt 5

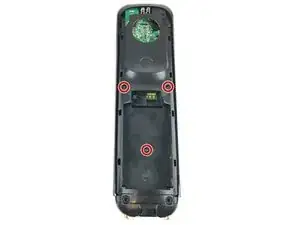

Use the Phillips #0 screwdriver to remove the (3) three 6mm screws.

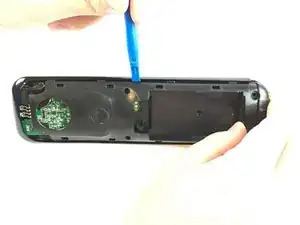

Push the opening tool into the gap along the side of the remote, then slide it across until you hear clicking sounds.
You need to repeat this process for both sides of the remote.

Schritt 6

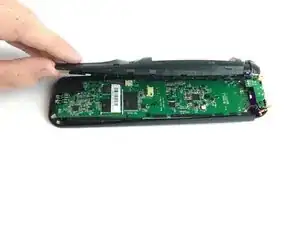

Carefully remove the back cover and place it next to the remote. Be careful not to detach the wire during this process.

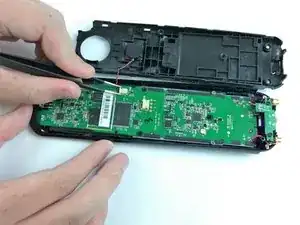

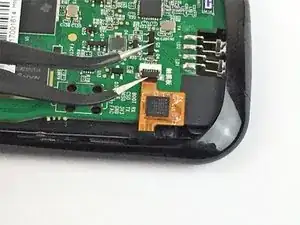

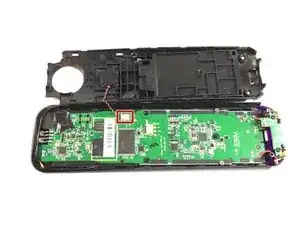

Use the Angled Tweezers to carefully pull the white cable end off of the remote and disconnect it.

Schritt 7

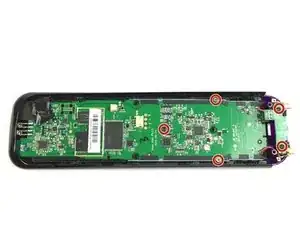

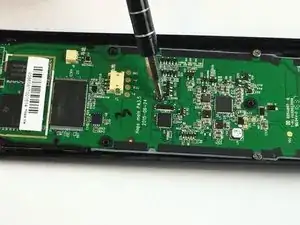

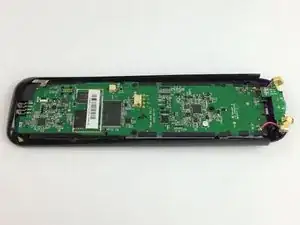

Use the Phillips #0 screwdriver to remove the (5) five 6mm screws.

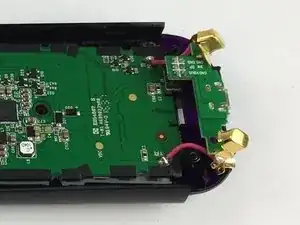

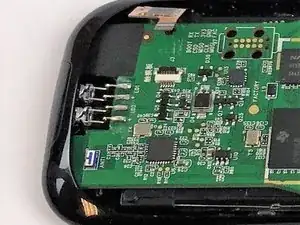

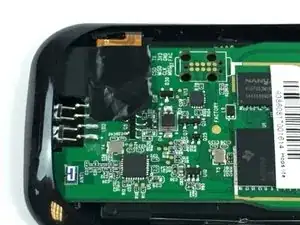

Be careful not to detach the pink wires when removing the gold charging conductors.

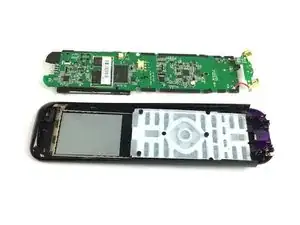

Removing the gold charging connectors is a pain. The inner mounting points really didn’t want to let go. Rather than force it, since I ultimately didn’t need to pull the entire board for my fix (my son decided to stir a cocktail with our remote), I left them in place and was still able to slide the board enough to tilt it out.

Ergolad - 12/05/18
