Logitech Harmony Smart Control Remote Buttons Replacement

Geschrieben von: Josh Hendricks
  • Kommentare: 9
Logitech Harmony Smart Control Remote Buttons Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

8 - 15 Minuten

Einleitung

  1. fgnFAGIaRKmyK1UV
    fgnFAGIaRKmyK1UV
    ltNjUTL3Amxp2wVF

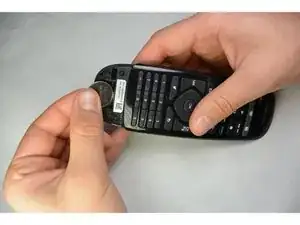

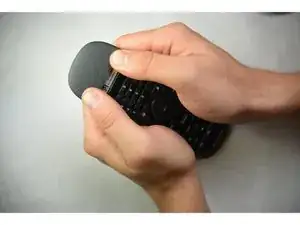

    • With both thumbs, slide the grooved cover off the end of the remote.

    • Remove the battery once cover is removed.

  2. KRFKt5KbxDeCJWgQ
    KRFKt5KbxDeCJWgQ
    ok4mJID2fKFnRb4e

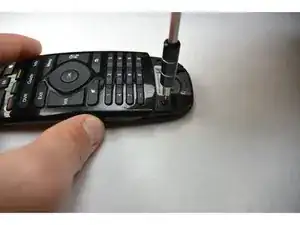

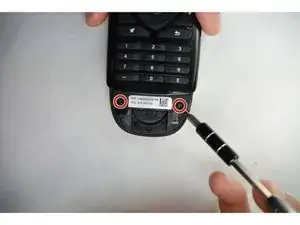

    • With the PH00 bit, remove both of the 4mm Phillip screws on the remote.

  3. 1KiSscGR1Y6OJVWX
    1KiSscGR1Y6OJVWX
    gvKYNDPDijrQeV2r

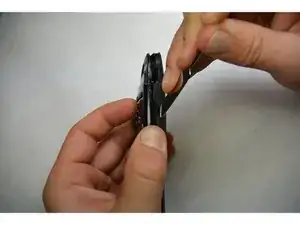

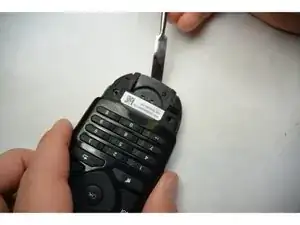

    • Using a metal spudger, pry the remote. Maneuver around to separate both sides.

  4. jVIRu3nBocRVSbEl
    jVIRu3nBocRVSbEl
    vwLnjonTSZ66swrc
    Rv55UcWEPglQnvBN

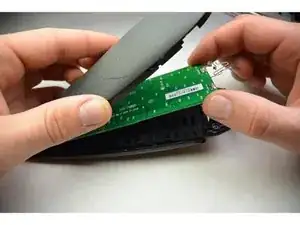

    • Manualy separate the two pieces of plastic.

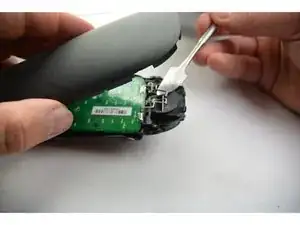

    • Using the metal piece from the housing, pry up the circuit board. Do not disconnect anything.

    • When the circuit board is pried, slide the circuit board out of the housing.

  5. VU45e2UqTuhy2g2m

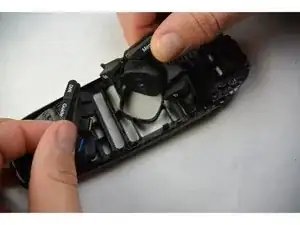

    • From the front of the remote, remove the buttons. Clean or replace the necessary buttons.

    too bad the buttons aren’t serviceable. atleast on the version i have.. you can’t clean or repair them. the rubber buttons aren’t the conductive contact. that part is under metal domes mounted on the PCB under a sealed layer of clear plastic. those metal domes don’t appear to be repairable.

    Kevin -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Josh Hendricks

Mitglied seit: 17/09/15

464 Reputation

8 Kommentare

Excellent guide. However, I can’t find a supplier for the button pad. Any suggestions?

fhaist -

Hi there,

My son dropped mine in water. I opened it and dried it off but it still doesn’t work.

I could give you my button pad if you want.

Benoit Lagarde -

Where do you purchase button replacements?

Steve Lutes -

Where do you purchase button replacements?

Flavio Campos -

Excellent! I wasn’t sure if it was possible to crack it open or not. Thanks, I was able to clean it up.

John Wall -

I run an electronic repair shop and unlike other cleanable carbon surface remote units, the buttons on these remotes are “sealed” contacts that sit under a rubber press pad, yesterday, my wife tried using alcohol to “clean” the top of the remote. the problem w/ that is the oils on the unit are dissolved and slowly migrate to the “sealed” button pad, which isn’t very well sealed at all. there’s no way to clean those button pads as they cannot be disassembled, So, its now a brick. Also, over time, the buttons just stop working. Again, no fix for this since the buttons themselves are “sealed”. I have 4 of these and I throw them away as they fail since there is no cleaning or replacement of the button pads available.

Jeff Stevenson -

Next time one goes dead send it to me! All I need is the rubber button pad to resurrect my remote :)

MedDev Dude -

Thanks for this, but unfortunately I didn't see anything obviously wrong on the inside. I cleaned up the contacts with iso alcohol, but it still doesn't work.
