Logitech Harmony Smart Keyboard Key Printed Circuit Board (PCB) Replacement

Geschrieben von: Hayley Nichols
  • Kommentare: 1
Logitech Harmony Smart Keyboard Key Printed Circuit Board (PCB) Replacement

Schwierigkeitsgrad

Moderate

Schritte

18

Zeitaufwand

25 Minuten

Einleitung

This is a replacement guide for the Logitech Harmony Smart Keyboard's key printed circuit board.

The keyboard printed circuit board (PCB) sends messages to the wifi and transmits key data to the server.

  1. yeFWtiLBjSocyENG
    yeFWtiLBjSocyENG
    3BwD5hli2x1iLHhH

    • Turn keyboard over to the backside.

  2. bkilisV2dQGEFneF
    bkilisV2dQGEFneF
    L4Q6NyWEELcmN3MN
    ZsF2eLBUFaQNrbng

    • Press and slide up on the upper battery latch, using both thumbs.

  3. JgKfbQkckWndfV33

    • Remove the two AA batteries and set them aside.

  4. lqVPdDa2PXLNpiSU
    lqVPdDa2PXLNpiSU
    MwoTmVWnwIVdSHsw

    • Unscrew all five 4.0 mm screws, using Phillips #1 screwdriver.

  5. MXrNtLXF3pKjVfQD
    MXrNtLXF3pKjVfQD
    iFygMbZQXpbCGdIX

    • Peel off the center sticker to reveal two hidden 4.0 mm screws.

    • Unscrew these two screws with a Phillips #1 screwdriver.

  6. BFMJEZKGEgMUHwNF
    BFMJEZKGEgMUHwNF
    cllVdhlf45PBQTUt
    dT3NWxDTPZZxKbtX

    • Lift both top left and top right rubber stickers halfway, using the sharp end of the plastic spudger.

    • Unscrew a total of two 4.0 mm screws, under the rubber stickers, using a Phillips #1 screwdriver.

  7. qhQFV4c2R6AZctUI
    qhQFV4c2R6AZctUI
    tvNV5yDa4AMypJFc

    • Unscrew the top center 4.0 mm screw, in the battery compartment, using the Phillips #1 screwdriver.

    • Now, you should have a total of ten 4.0 mm screws set aside.

  8. QvfEWbEEhCQ3RRP5
    QvfEWbEEhCQ3RRP5
    1AePc6T3aahPEOTZ
    2AJSDA35Ir3ZbWLD

    • Wedge the flat end of the spudger between the back panel and front panel.

    • Slide the flat end of the spudger from right to left to pry the two panels apart.

  9. cDZ4OUrr5gyGT1PT
    cDZ4OUrr5gyGT1PT
    XIY3ovvr4Ts4MCef
    DY4UKtsBnNFgW1aW

    • Separate the back panel from the front panel completely, using both hands.

    • A white ribbon flex cable will remain connected to both panels.

    • Pull the panels apart slowly and gently, or the white ribbon flex cable may be unsafely removed.

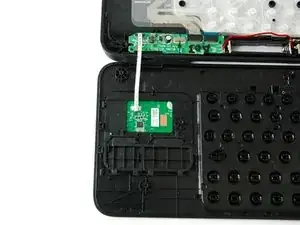

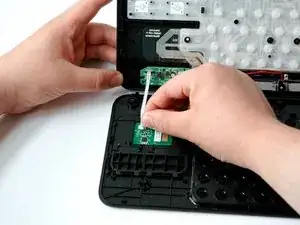

  10. PGHYYYWsX5mmgQuR
    PGHYYYWsX5mmgQuR
    PmKYjYB16os6MIxG
    fW4LYJYrIjlRFBhC

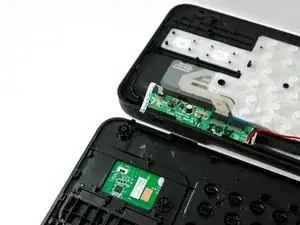

    • Grip the lower end of the ribbon flex cable (white band) using your thumb and index finger.

    • Then slide the strip out toward yourself in a scooping motion.

    • Now, you should have two completely separated panel pieces.

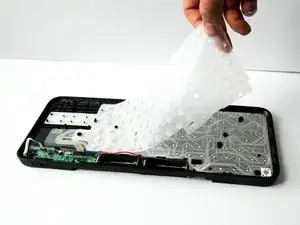

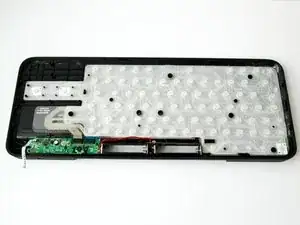

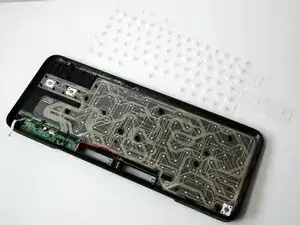

  11. LlCuCsbmKn3oOcPL
    LlCuCsbmKn3oOcPL
    nPIr2UgDw4JmE5g1
    5IT1PYWCaWwIYSuD

    • Lift and remove the white rubber sheet that lays over the keyboard pet flexible PCB.

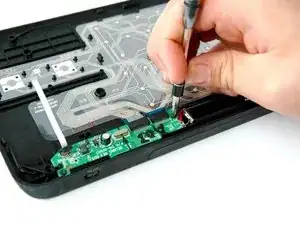

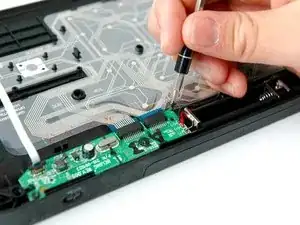

  12. HSENIAf4tYmJgq2i
    HSENIAf4tYmJgq2i
    COFFNLfHsYCfFhuJ
    Ym1jSuHSBHNjIn6L

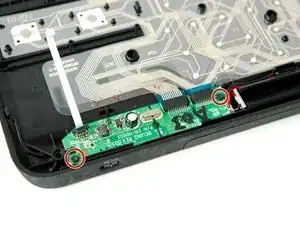

    • Unscrew the two 4.0 mm screws on either side of the green card using a Phillips #1 screwdriver.

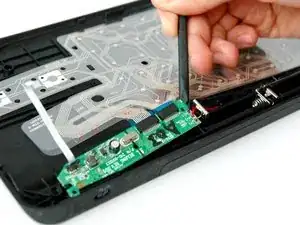

  13. 4dv6MXtyDXge15bC

    • Lift the green card up using the flat end of the plastic spudger.

  14. oXsMqXlo5jfrHVJm

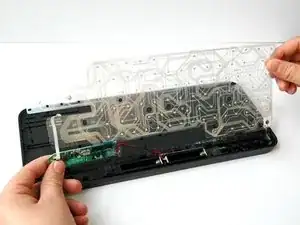

    • Grip and lift the keyboard PCB up and out.

    • The battery wires will remain connected.

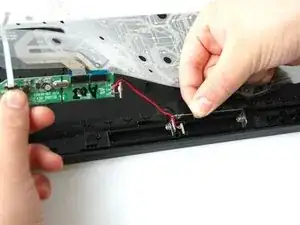

  15. xaiHSBDfDadAbJqP

    • Grip and lift the battery wire bar out of the battery compartment, using your thumb and index finger.

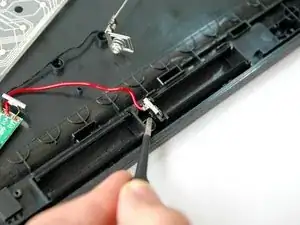

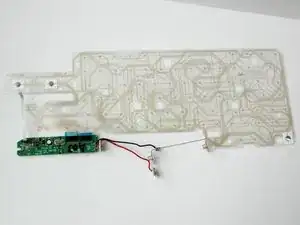

  16. 4yBGgTwW3A5N1Mc1
    4yBGgTwW3A5N1Mc1
    NYhYNKPKYv1nukBy

    • Pinch your precision tweezers and wedge the battery clamp up.

    • Lift the entire keyboard PCB out of the panel.

    • The keyboard PCB will remain connected to the green card.

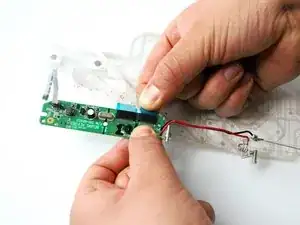

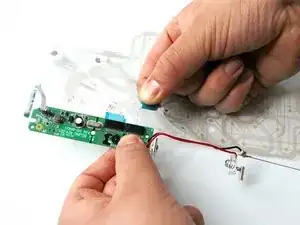

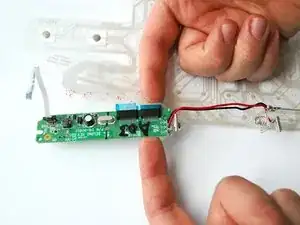

  17. YqWwupnfumCmhxh2
    YqWwupnfumCmhxh2
    KFBlfCZ5nGAaPDNI
    ra5PM5V1d51KxE4H

    • Slide your index finger into the slot under the right blue tab.

    • Pinch and pull the right blue tab away from the green card.

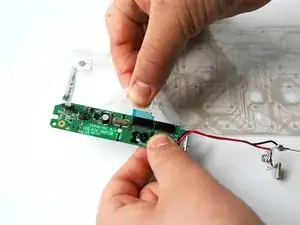

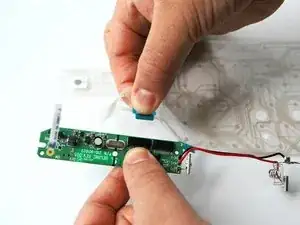

  18. FOwvtISsXDTY4tVb
    FOwvtISsXDTY4tVb
    mODDiO3FCLugYKjx
    DIXrRkJUbB3lSJdI

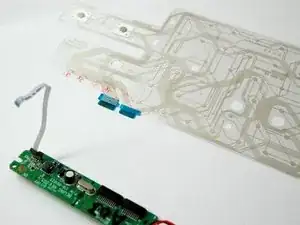

    • Pinch and pull the left blue tab away from the green card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
