Logitech Harmony Smart Keyboard Ribbon Flex Cable Replacement

Geschrieben von: Hayley Nichols
  • Kommentare: 0
Logitech Harmony Smart Keyboard Ribbon Flex Cable Replacement

Schwierigkeitsgrad

Easy

Schritte

11

Zeitaufwand

20 Minuten

Einleitung

This is a replacement guide for the Logitech Harmony Smart Keyboard's ribbon flex cable.

The ribbon flex cable is thin, flat, multiconductor cable that is widely used for internal peripheral connections in electronic systems. In the Logitech Harmony Smart Keyboard, the ribbon flex cable connects the touchpad printed circuit board (PCB) and the keyboard printed circuit board (PCB).

  1. yeFWtiLBjSocyENG
    yeFWtiLBjSocyENG
    3BwD5hli2x1iLHhH

    • Turn keyboard over to the backside.

  2. bkilisV2dQGEFneF
    bkilisV2dQGEFneF
    L4Q6NyWEELcmN3MN
    ZsF2eLBUFaQNrbng

    • Press and slide up on the upper battery latch, using both thumbs.

  3. JgKfbQkckWndfV33

    • Remove the two AA batteries and set them aside.

  4. lqVPdDa2PXLNpiSU
    lqVPdDa2PXLNpiSU
    MwoTmVWnwIVdSHsw

    • Unscrew all five 4.0 mm screws, using Phillips #1 screwdriver.

  5. MXrNtLXF3pKjVfQD
    MXrNtLXF3pKjVfQD
    iFygMbZQXpbCGdIX

    • Peel off the center sticker to reveal two hidden 4.0 mm screws.

    • Unscrew these two screws with a Phillips #1 screwdriver.

  6. BFMJEZKGEgMUHwNF
    BFMJEZKGEgMUHwNF
    cllVdhlf45PBQTUt
    dT3NWxDTPZZxKbtX

    • Lift both top left and top right rubber stickers halfway, using the sharp end of the plastic spudger.

    • Unscrew a total of two 4.0 mm screws, under the rubber stickers, using a Phillips #1 screwdriver.

  7. qhQFV4c2R6AZctUI
    qhQFV4c2R6AZctUI
    tvNV5yDa4AMypJFc

    • Unscrew the top center 4.0 mm screw, in the battery compartment, using the Phillips #1 screwdriver.

    • Now, you should have a total of ten 4.0 mm screws set aside.

  8. QvfEWbEEhCQ3RRP5
    QvfEWbEEhCQ3RRP5
    1AePc6T3aahPEOTZ
    2AJSDA35Ir3ZbWLD

    • Wedge the flat end of the spudger between the back panel and front panel.

    • Slide the flat end of the spudger from right to left to pry the two panels apart.

  9. cDZ4OUrr5gyGT1PT
    cDZ4OUrr5gyGT1PT
    XIY3ovvr4Ts4MCef
    DY4UKtsBnNFgW1aW

    • Separate the back panel from the front panel completely, using both hands.

    • A white ribbon flex cable will remain connected to both panels.

    • Pull the panels apart slowly and gently, or the white ribbon flex cable may be unsafely removed.

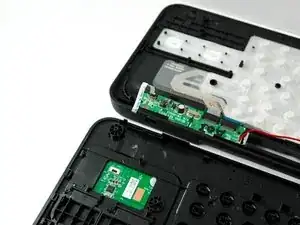

  10. HnCvfgIsra4porss
    HnCvfgIsra4porss
    1G3STa6XDCN3oAHr
    hBGZuDXPEwhsvmrB

    • Grip the lower end of the ribbon flex cable (white band) using your thumb and index finger.

    • Then slide the strip out toward yourself in a scooping motion.

    • Now, you should have two completely separated panel pieces.

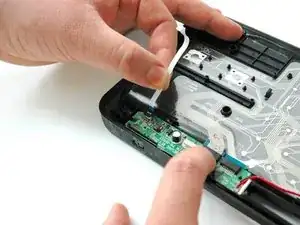

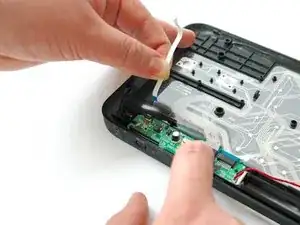

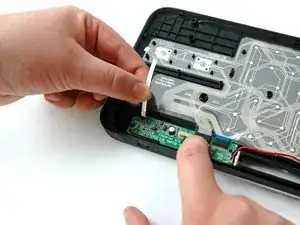

  11. afNQPO2qCZDmofdo
    afNQPO2qCZDmofdo
    VcSFHNinsnOMGpUv
    EOKfG23A3XjhX2kQ

    • Grip the other lower end of the ribbon flex cable using your thumb and index finger.

    • Gently slide the cable up and out of the green card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
