Einleitung
This guide will show you the process to disassemble the device and replace the motherboard.
-
-
Open the latch that accesses the charging port
-

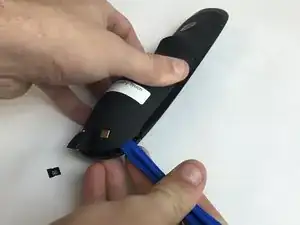

Remove the black sticker and remove the screw with the indicated screwdriver
-

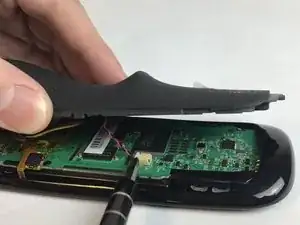

Take the plastic opening tool and run it down the side of the remote to pop the case open
-

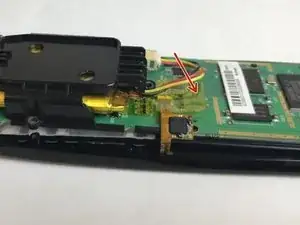

Detach the white clamp to partially disconnect the case from the motherboard
-
-
-

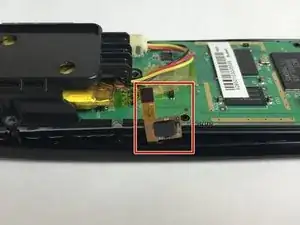

Peel back thin yellow plastic film and detach the clip found underneath
-
Remove the screws that connect the motherboard to the case with the suggested screwdriver
-
-
-
Next, carefully remove the motherboard from the top piece of the case
-
You should now be able to access all of the buttons and remove them from the case
-
To reassemble your device, follow these instructions in reverse order.
