Logitech UE Boombox Bluetooth Adapter Replacement

Use a metal spudger to pry open the power button cover.

Once the power button cover is slightly opened, use your fingers to remove the power button cover.

Press firmly on the end of the latch and pull the two-wire connector away from the base to separate.

Firmly press on the end of the latch and pull the four-wire connector away from the base to separate.

Lightly, pry up on each side of the black band connector lock using your fingertips.

Once unlocked, pull straight up on the connector to remove.

Remove the five black 14mm Phillips #2 screws from the black plastic side panel.

Remove the one silver 16mm Phillips #2 screws from the black plastic side panel.

Remove the black plastic screw panel from the boombox.

On the opposite side of the device, pry open the volume rocker with a metal spudger.

Remove the panel with your fingers once the volume rocker is slightly opened.

Remove the five black 14mm Phillips #2 screws from the black plastic side panel.

Remove the one silver16 mm Phillips #2 screw from the black plastic side panel.

Once all screws are removed, take the screw panel out of the device to gain access to the back of the panel.

Firmly press on the end of the latch and pull the two-wire connector away from the base.

Pull up on the aluminum boombox handle to remove.

Use a metal spudger to pry the rubber base apart from the aluminum grille.

Pull the rubber base away from the boombox.

Remove the four black 7.5mm Phillips #2 screws on each side of the device.

Pull vertically on the speaker grille to remove it from the boombox.

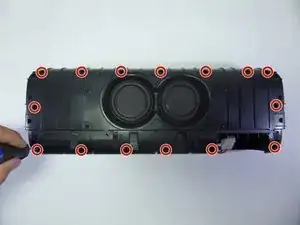

Remove the fifteen 13.0mm Phillips #2 screws from the side of the device containing two speakers.

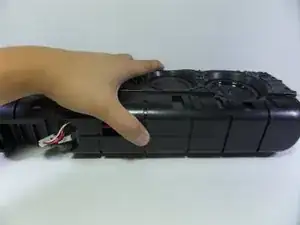

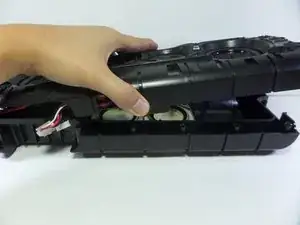

Separate the two halves by gently pulling them apart.

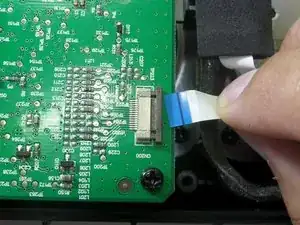

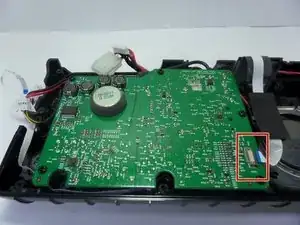

Pull up on the lock connecting the band connector to the motherboard with your finger tips.

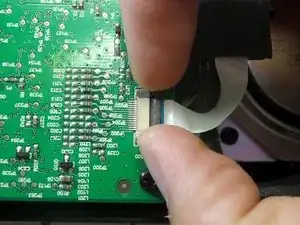

Detach the band connector gently from the motherboard.

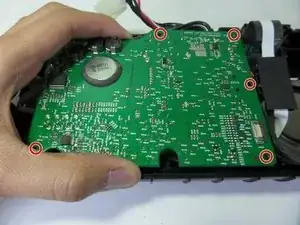

Remove the five black 7.0mm Phillips #2 screws.

Move the motherboard away from bluetooth adapter gently.

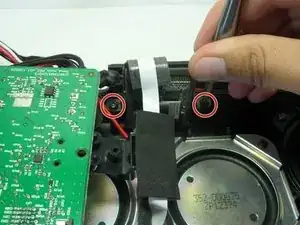

Remove two 7.0mm Phillips #2 screws.

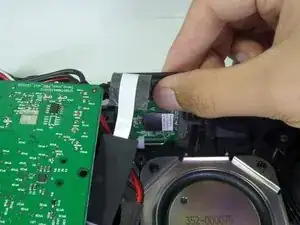

Remove the bluetooth adapter from the boombox.
